The Panorama LED Skylight 50 x 70 GREY is a skylight that fits perfectly on Motorhomes, caravans, as well as the flat surface of panel van conversions.

Technical specifications:

• Cut-out dimensions: 50 x 70 cm

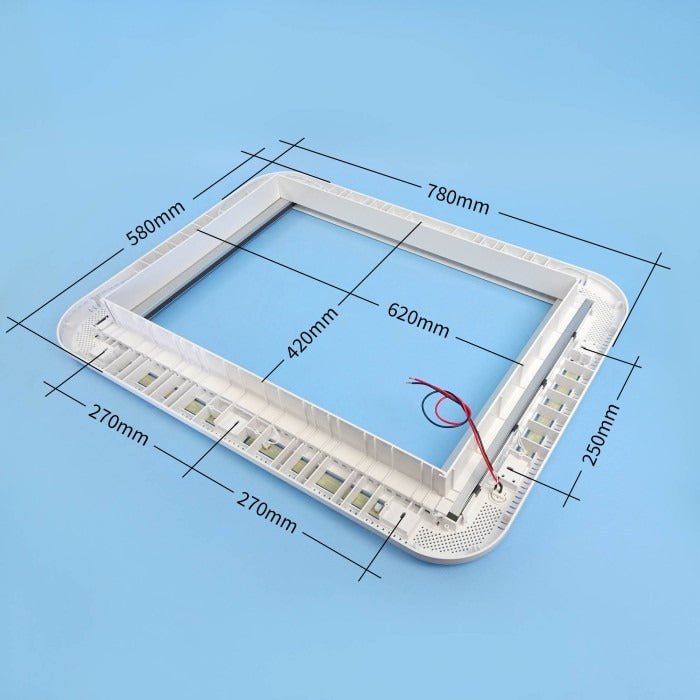

• Inner frame dimensions: 80 x 60 cm
• Double glazing acrylic 43-R
  • E-Mark - compatible with approval in Europe, Switzerland, and the United Kingdom
• Suitable for most panel van conversions and roofs with a thickness of 25 to 75 mm (extendable)

• Light grey tinted glazing (light transmission 80%)

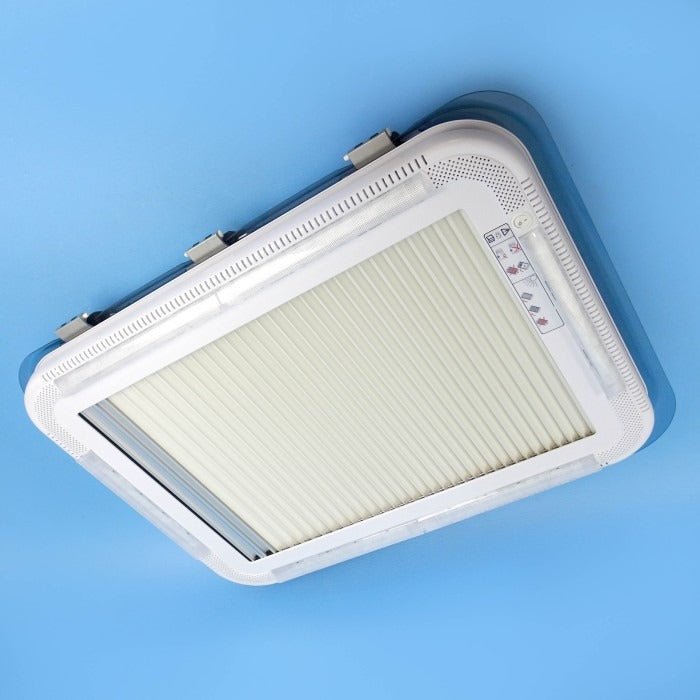

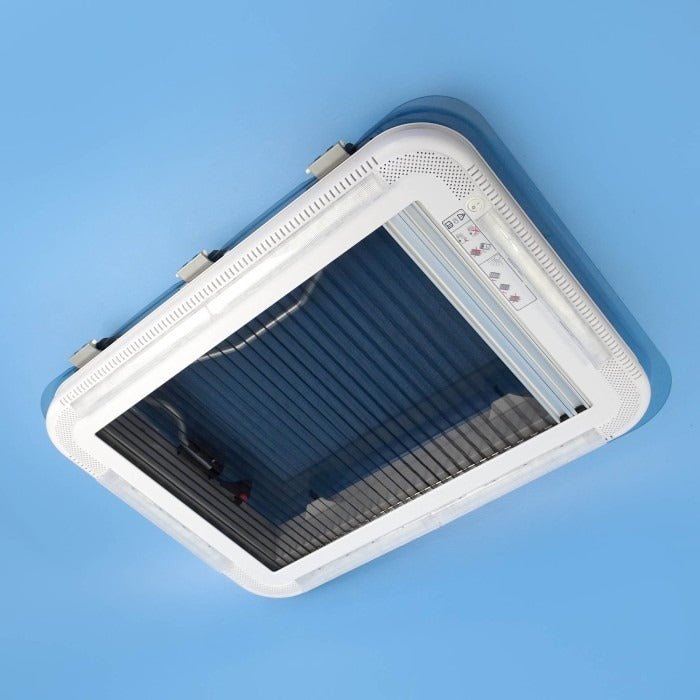

• Model including LED frame with blackout blind and fly screen
• Model including permanent ventilation: permanent ventilation area 150 cm² (for VASP approval - certificate available)

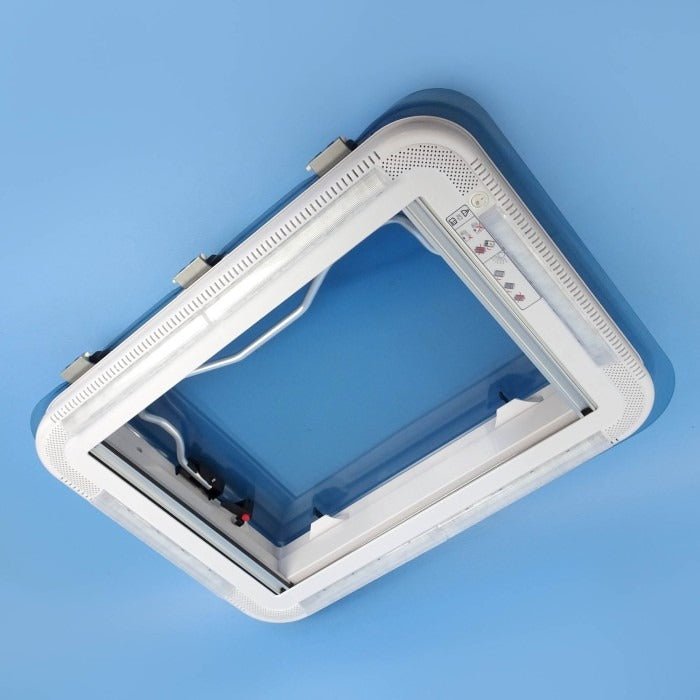

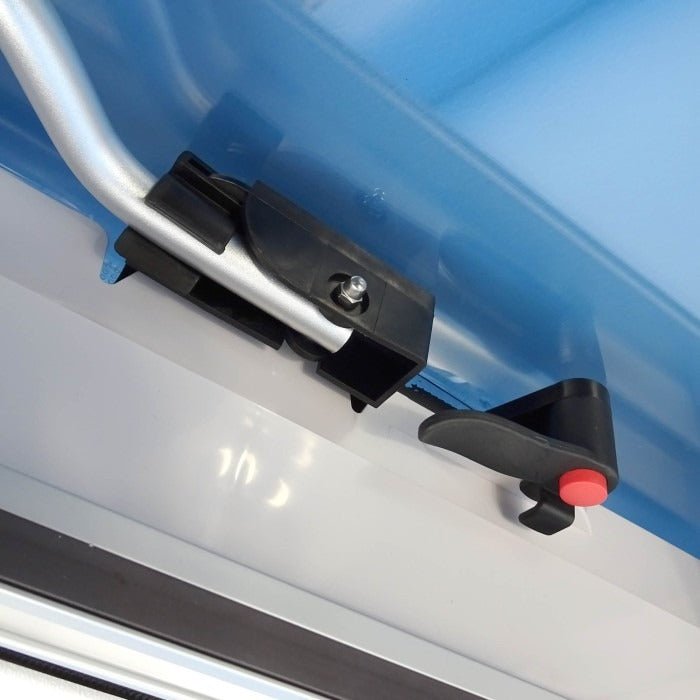

• Opening with aluminum lifting bar

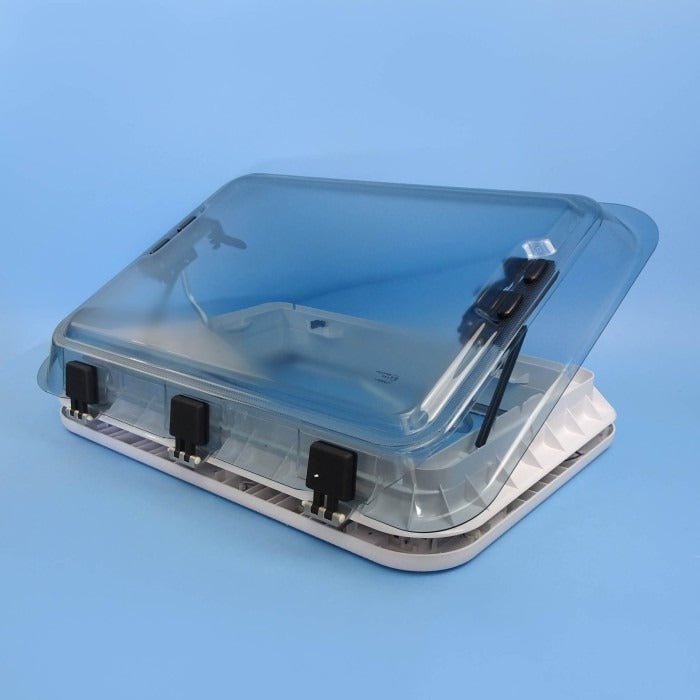

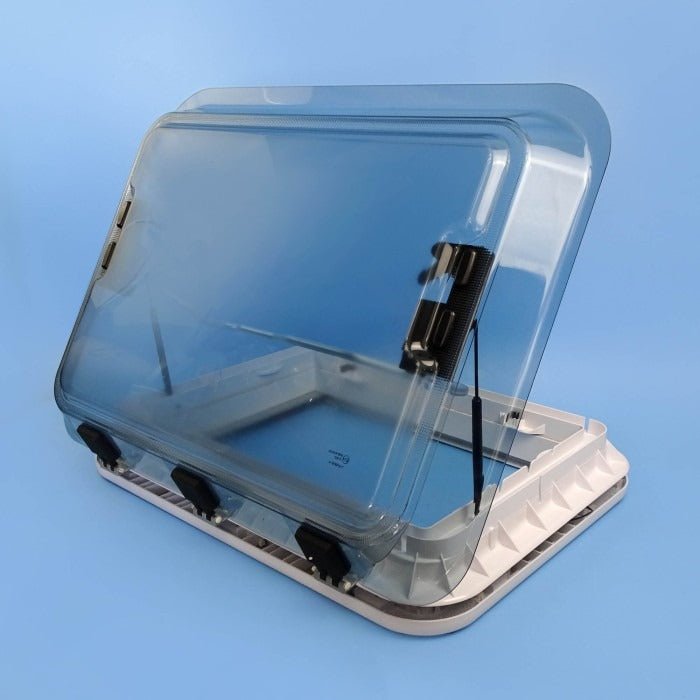

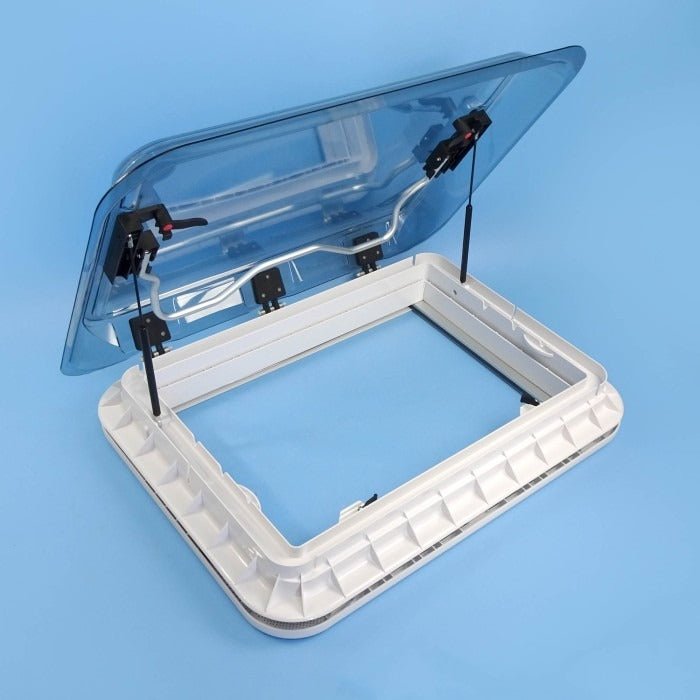

• System with two gas struts prevents any sudden closure to protect the glazing.

Installation advice:

• Installation on van not requiring an adaptation frame (compatible with flat and curved sheet metal walls)

• Possibility to install on walls thicker than 75mm using longer screws and a finishing trim
  • Average installation time: 45 minutes
  • Recommended installation with Sikaflex 552AT (alone or in pack Sika Skylights for a watertight and durable installation on corrugated wall ceilings)
• Product delivered with an assembly manual and detailed step-by-step installation tutorial



Usage advice:

• To ventilate your vehicle, you can lock the skylight in the intermediate ventilation position. Three possible levels of movement:

  • Closed: Forced ventilation of 150cm² (depending on the chosen model - recommended to have a slight continuous air circulation and thus avoid mold problems in vehicles)

  • 5°: Maximum speed: 130 km/h

  • 55°: Maximum speed: 60 km/h


Packaging weight and dimensions: 11kg - 76*94*25 cm

Installation manual: Download
