VANPOWER SMART - Campervan electrical kit (with diagram)

Name: VANPOWER SMART - Kit électricité van aménagé (avec schéma)
Rating: 4.73 (15 reviews)

4,7 15 reviews

Victron Smart
LiFePO4 battery
12V / 230V
ECE R10

SMART all-in-one kit for full 12V and 230V independence - Easy to install with the detailed wiring diagram included

1.299,00€ 1.649,00€ −21 %or 3 × 433,00€ with Klarna

Limited offerIn stock

Shipping:

LiFePO4 lithium battery

230V inverterpure sine wave

100% secure payment
30-day returns
Free delivery from 399 €
Free support

Any question?

Our technicians answer all your questions

Message us

Product benefits

Smart switches: control the lighting and your 12V circuits from your phone
LiFePO4 lithium battery: long service life, monitored via Bluetooth with the Victron components
3 charging sources: solar panels, mains power and the alternator while driving
Automatic bypass: when plugged into mains power, the inverter powers your appliances and charges the battery at the same time
No calculations needed: pre-sized components, detailed wiring diagram and step-by-step tutorial
Repairable and expandable: each component can be replaced individually, unlike portable power stations
ECE R10 certified: components accepted throughout Europe, Switzerland and the UK

What's included in your kit

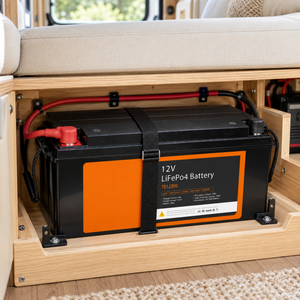

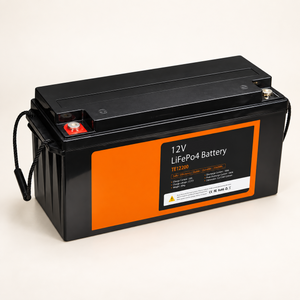

Batterie Lithium 12v - Spéciale Vans aménagés et Camping-cars - LiFePo4 + Bluetooth

12v Lithium Battery - Special for Campervans and Motorhomes - LiFePo4 + Bluetooth100Ah

Included

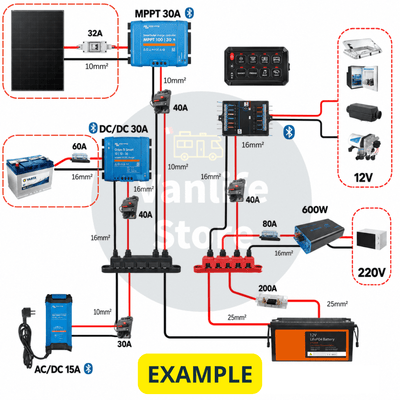

Detailed wiring diagram+ step-by-step installation guide

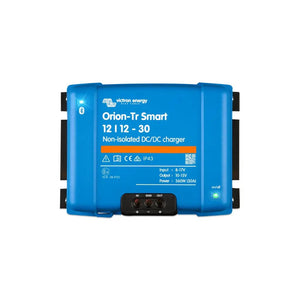

VICTRON Orion-Tr Smart 12/12-30A – Chargeur Booster DC/DC 12V avec Bluetooth

VICTRON Orion-Tr Smart 12/12-30A – DC/DC 12V Booster Charger with Bluetooth

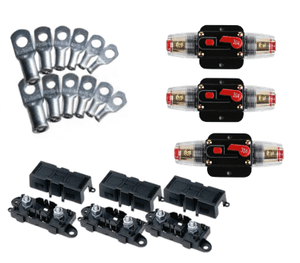

Terminal and Fuse PackWithout 230V or 600W

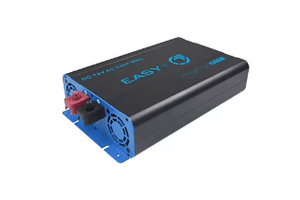

Convertisseur VANLIFE 12v 220v Pur Sinus - Pour camping-car et Van aménagé

VANLIFE 12V 220V Pure Sine Wave Inverter - For motorhome and Campervan600W

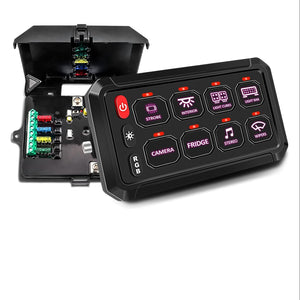

Kit connecté Boitier de distribution / Panneau d'interrupteurs - 8 sorties + Bluetooth - spécial camping-cars et vans aménagés

Connected distribution box / switch panel kit - 8 outputs + Bluetooth - specially for motorhomes and campervans

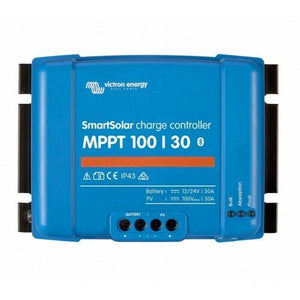

VICTRON SmartSolar MPPT 100/30 – Régulateur Solaire Bluetooth 12/24V 30A

VICTRON SmartSolar MPPT 100/30 – Bluetooth Solar Regulator 12/24V 30A

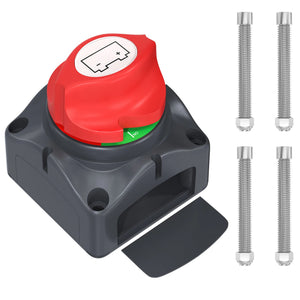

Coupe-circuit de batterie 12V – Interrupteur de batterie pour camping-car, voiture, bateau, et applications marines

×3

12V Battery Cut-Off Switch – Battery Switch for Motorhome, Car, Boat, and Marine Applications

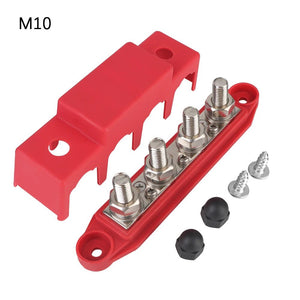

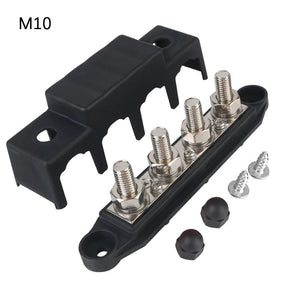

Blocs de Distribution d’Énergie 12V/48V 250A pour Caravane, Camping-Car, Bateau, 4x4

12V/48V 250A Power Distribution Blocks for Caravan, Motorhome, Boat, 4x41x Black M10

12V/48V 250A Power Distribution Blocks for Caravan, Motorhome, Boat, 4x41x Red M10

3 ways to recharge

Sunlight

MPPT 100/30
300 to 500 W

While driving

Orion-TR
12/12-30A

On a campsite

Built-in 15A
or 20A charger

Details and specifications

Full description

The VANPOWER SMART kit brings together all the electrics for a converted van, with connected features: a LiFePO4 lithium battery, Victron components and switches you can control from your phone. Everything is pre-sized and supplied with a detailed wiring diagram.

1. Your battery

Battery	Usage
100 Ah	Weekends and light use: 12V coolbox, lighting, USB
200 Ah	Regular use: several days of autonomy, small 230V appliances
314 Ah	Living in your van all year round and extended use of 230V

2. Your 230V inverter

230V	Which appliances
No 230V	A fridge, USB and 12V are enough for you (can be added later)
600 W	Laptop, small appliances
1000 W	Mini oven or microwave
1500 W	Kettle or high-power appliance (314 Ah battery recommended)
2000 W	Several appliances at the same time (314 Ah battery recommended)
2500 W	High simultaneous power consumption (with the 314 Ah battery)

Tip: check the power rating of your most power-hungry 230V appliance (on its label) and multiply it by 1.25 to 1.5. An 800 W appliance requires a 1000 to 1200 W inverter.

👉 Not sure which configuration is right for you? We can offer you a custom kit: contact us.

✅ Benefits of the VANPOWER SMART kit

Connected switches: control your lighting and 12V circuits from your phone
LiFePO4 lithium battery: long service life, monitored via Bluetooth with Victron components
3 charging sources: solar panels, mains socket and alternator while driving
Automatic bypass: when connected to mains, the inverter powers your appliances and charges the battery at the same time
No calculations required for installation: pre-sized components, detailed wiring diagram and step-by-step tutorial
Repairable and expandable: each component can be replaced individually, unlike portable power stations
ECE R10 certified: components approved throughout Europe, Switzerland and the United Kingdom

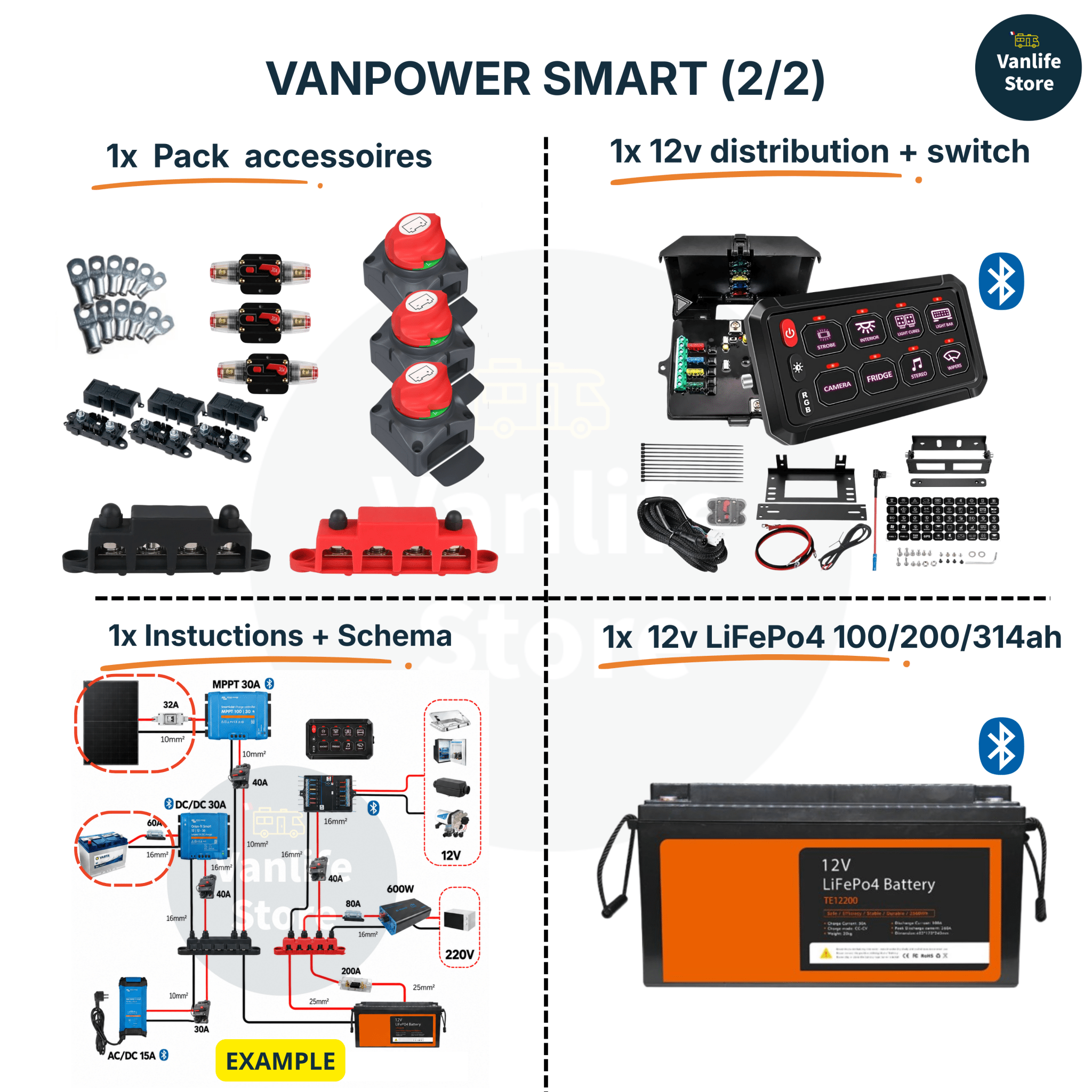

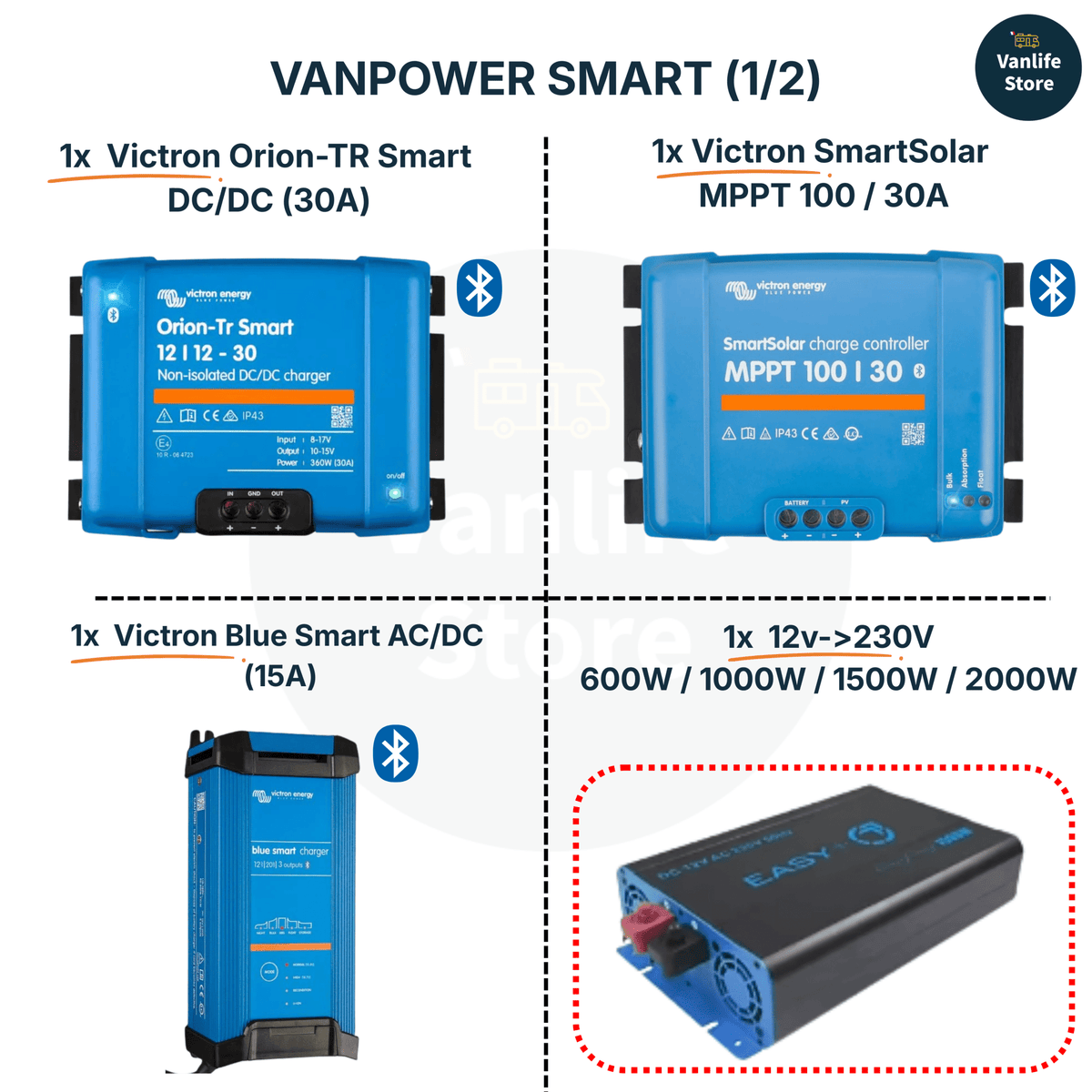

📦 Kit contents

🔋 Storage

12V Bluetooth LiFePO4 lithium battery: 100, 200 or 314 Ah depending on your choice

☀️ Charging

Victron SmartSolar MPPT 100/30 solar charge controller (300 to 500 W panels)
Victron Orion-TR Smart 12-12 / 30A DC/DC charger (charging while driving)

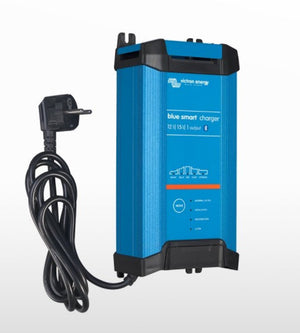

Mains charger: Victron Blue Smart 15A (version without 230V) or built into the inverter (20A)

⚡ 230V

Pure sine wave 12V → 230V inverter, from 600 to 2500 W depending on your choice (optional)

🔌 Distribution and protection

Connected distribution box + switches controllable from your phone
Pre-sized circuit breakers, fuses and cable lugs

📐 Installation

Detailed wiring diagram, including cable cross-sections
Step-by-step installation tutorial

⁉️ Frequently asked questions and support

Q: Which battery should I choose?
A: 100 Ah for weekends, 200 Ah for several days of autonomy, 314 Ah for living in your van all year round or using a powerful inverter.

Q: Do I need 230V?
A: Only for appliances that run from mains power (coffee machine, microwave…). Otherwise, choose “No 230V”: you can add an inverter later.

Q: What is not included?
A: The cables (cross-sections indicated on the diagram), crimping pliers and solar panels.

Q: Need more than 2500 W (induction hob, air conditioner)?
A: Contact us for a custom kit.

Free technical support: our team will assist you throughout the installation. Have a question? Contact us.

Technical specifications

Vehicle compatibility	Converted vans and motorhomes
Voltage	12V (230V optional)
Battery type	Lithium LiFePO4
12V to 230V inverter	Optional
Maximum inverter power (W)	2500
Automatic inverter bypass	Yes
MPPT solar regulator	Victron SmartSolar MPPT 100/30
DC-DC charger	Victron Orion-TR Smart 12-12/30A
Compatible solar panels	300 to 500 W
Bluetooth monitoring	Yes
Smart switches	Yes
Approval	ECE R10
Electrical diagram included	Yes
Installation tutorial included	Yes
Technical support included	Yes
Warranty	5 years (battery)
