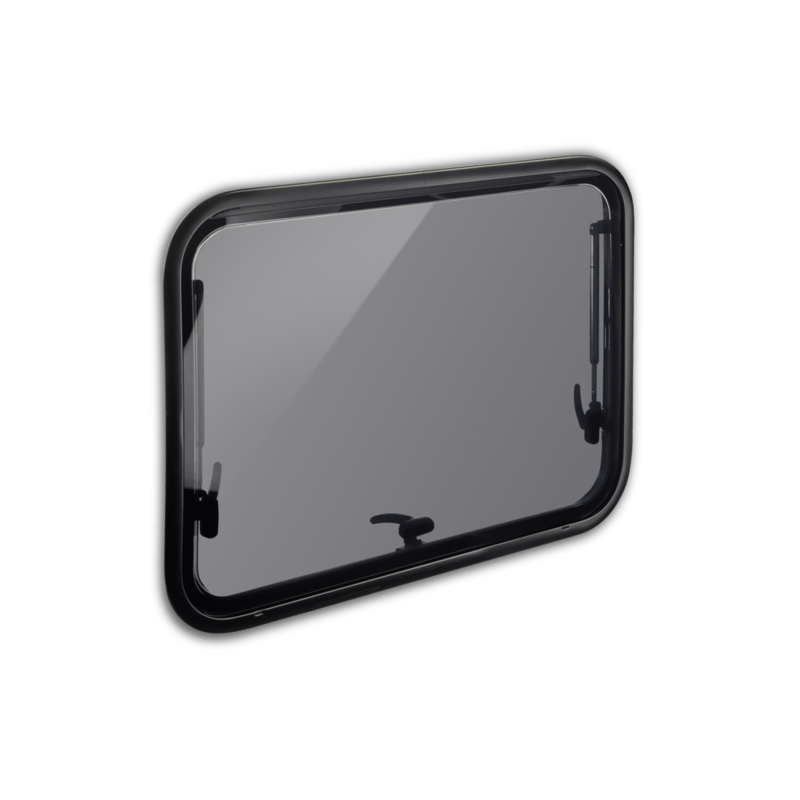

Push window SHADE

The SHADE Top-hung window has rounded corners and dark-tinted double glazing, and is ECE R43 approved. It opens up to 70° and fits walls from 30 to 55 mm thick. Sold on its own with its aluminium mounting frame, without blind or fly screen.

Choose the right size

The selector shows the interior dimension, i.e. the cut-out to make in the wall.

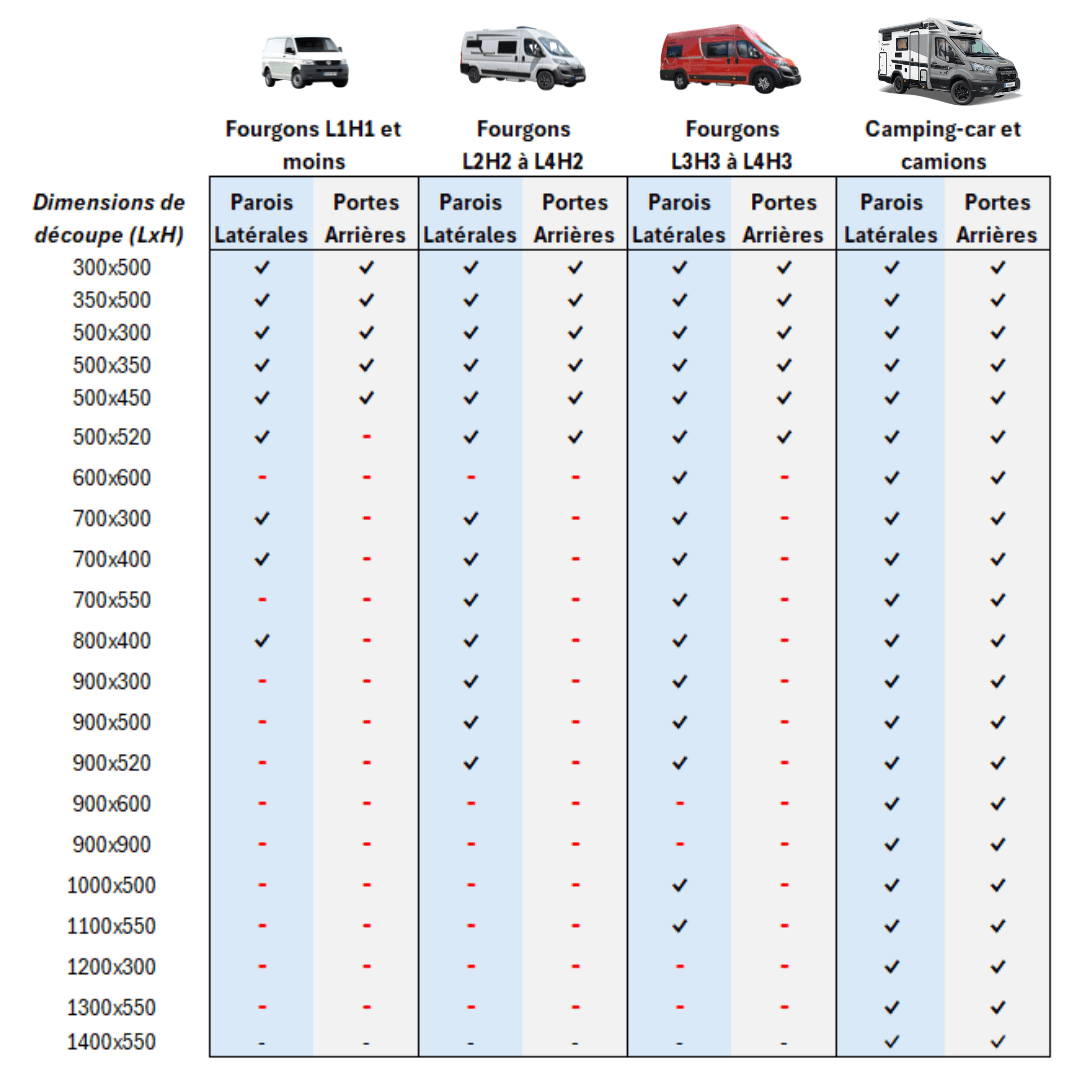

Maximum recommended Cut-out dimensions by van (in mm)

* 450 mm on Master, Movano, NV400; 520 mm on Ducato, Jumper, Boxer, Sprinter, Crafter.

These values correspond to what the vehicle allows: the SHADE Top-hung window alone is available up to 900 × 500.

Reinforcements vary according to the year and model: mark out the cut-out on your wall and check that no reinforcement, cable or duct crosses it. If in doubt, send us a photo and we will confirm.

The outer frame extends 3 cm on each axis (overall dimensions: W + 3 cm × H + 3 cm).

Benefits of the SHADE window

• Rounded corners: soft lines that follow the curves of vans and blend discreetly into the bodywork.
• Privacy: the dark-tinted glazing (30% light transmission) keeps the interior shielded from prying eyes without making it dark.
• Double glazing: two UV-resistant acrylic panes that insulate much better than single glazing. The interior stays cooler in summer, warmer in winter, and condensation is reduced.

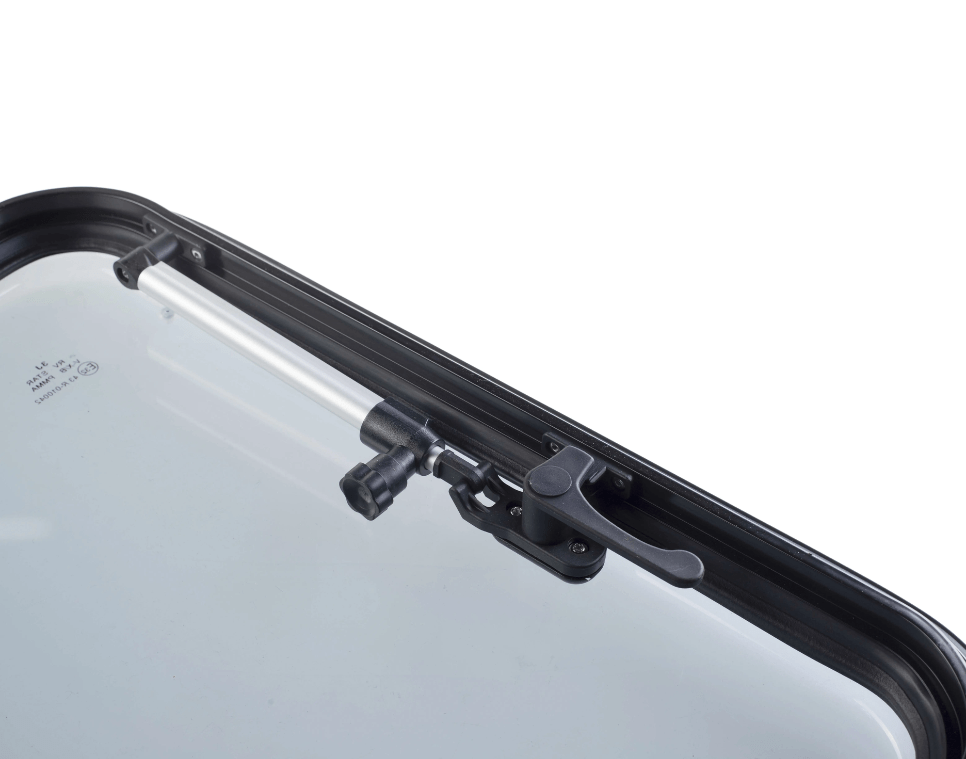

• Adjustable ventilation: the window opens outward up to 70° in 3 positions and locks with secure latches.
• Solid construction: a reinforced aluminium inner frame presses it against the wall, whether curved (van) or flat (Motorhome, caravan).
• Free to finish the interior your way: wood panelling, fabric or an interior frame with blackout blind and fly screen added later.
• Easy installation: the step-by-step installation tutorial guides you from marking out the cut-out to the final tightening. Allow around 1 hour.
• Approved and durable: ECE R43 approval, 2-year warranty and spare parts available for 5 years.

Choose the right model

Window alone or complete version?

• Window alone (this listing): to finish the inside of the cut-out yourself, or add a white or black interior frame with blackout blind and fly screen later, sold separately.
• SHADE Top-hung window with blackout blind and fly screen: the same window, supplied complete with its interior frame, blackout blind and fly screen.

Package contents

In the box

• 1 × SHADE Top-hung window
• 1 × Reinforced aluminium mounting inner frame
• 1 × Complete hardware set
• 1 × Step-by-step installation tutorial

Not included: finishing interior frame, blackout blind and fly screen.

What you will need

• 1 tube of Sikaflex 265 per window
• Wooden battens or frame at least 25 mm thick (recommended for panel vans)
• Jigsaw and screwdriver
• Materials to finish the inside of the cut-out, or an interior frame with blackout blind and fly screen

Allow around 1 hour for installation. Plan for two people to position the window in the cut-out and hold it in place while screwing.

Downloads

• Top-hung window installation instructions (French PDF)
• Window selection guide (PDF, available in 6 languages)

Frequently asked questions

Q: Is it compatible with curved panel van walls?
A: Yes. The reinforced aluminium inner frame adapts equally well to curved walls (vans) and flat walls (Motorhomes, caravans). Any slight gap on a curved wall is filled with Sikaflex.

Q: Is it approved for road use?
A: Yes, ECE R43: installation permitted without manufacturer approval in Europe, the United Kingdom and Switzerland. Compliant with roadworthiness testing and VASP requirements.

Q: Can I add a blackout blind and fly screen later?
A: Yes. The interior frame with blackout blind and fly screen, in white or black, can be ordered separately. Check its product page to confirm that your size is available, or contact us.

Unsure about the size? Contact our technical team; we reply within 24 hours at most.
