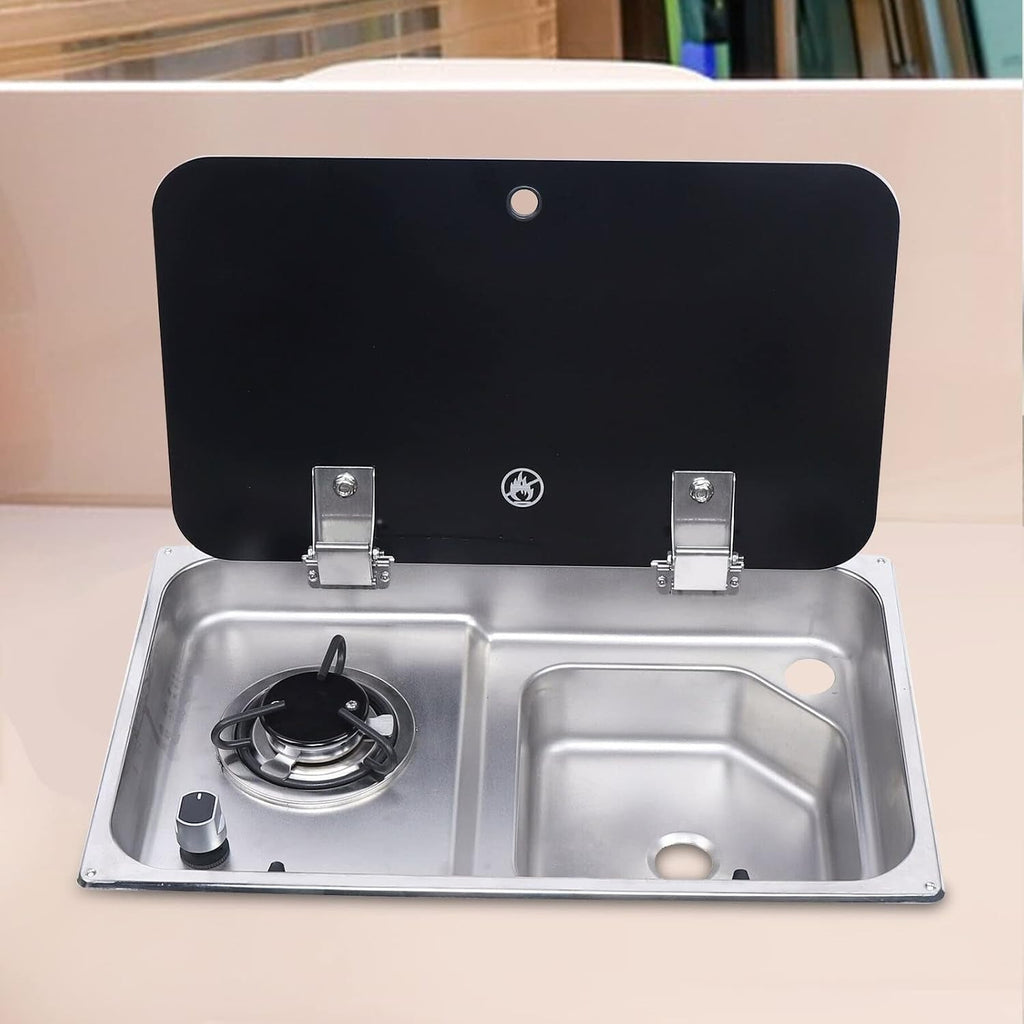

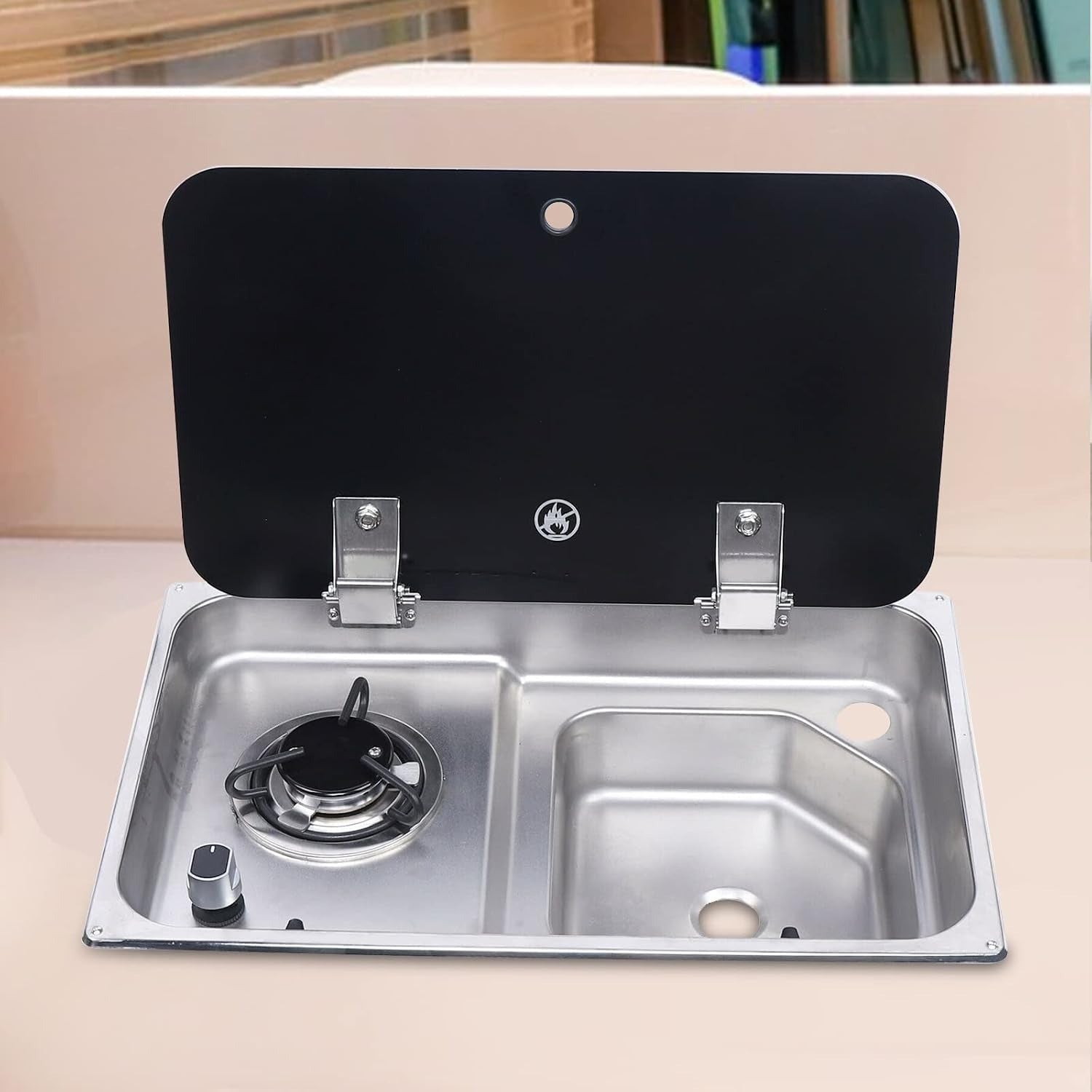

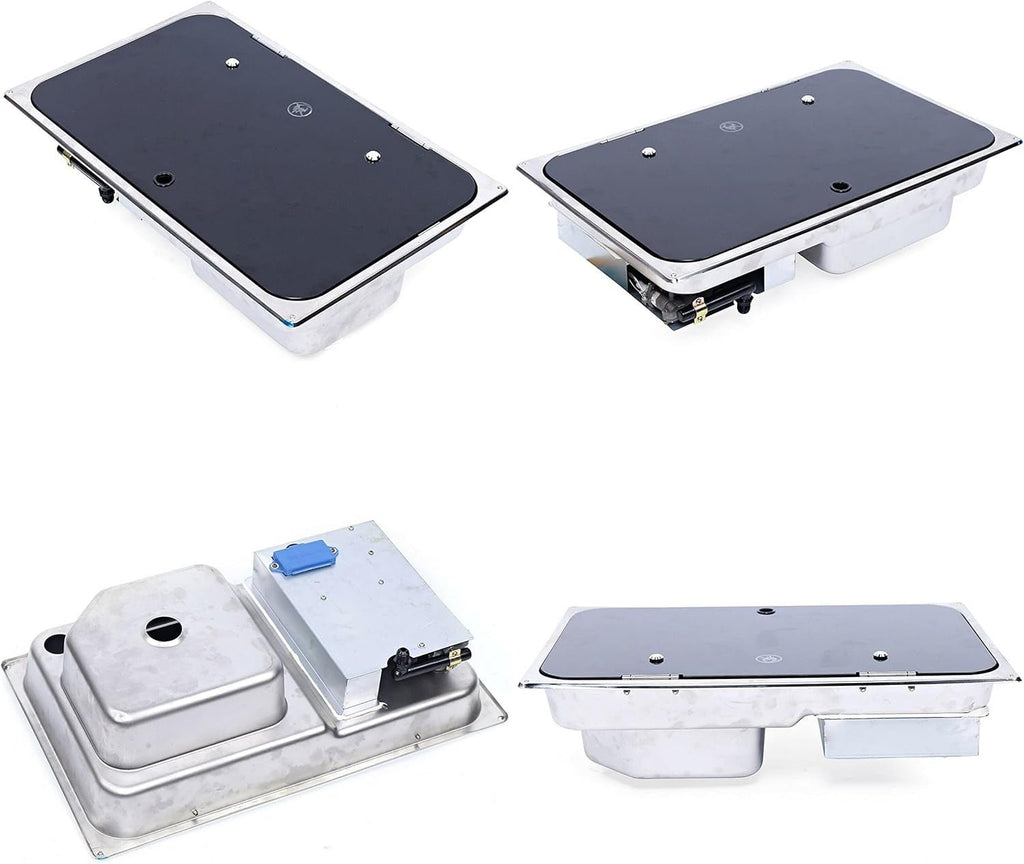

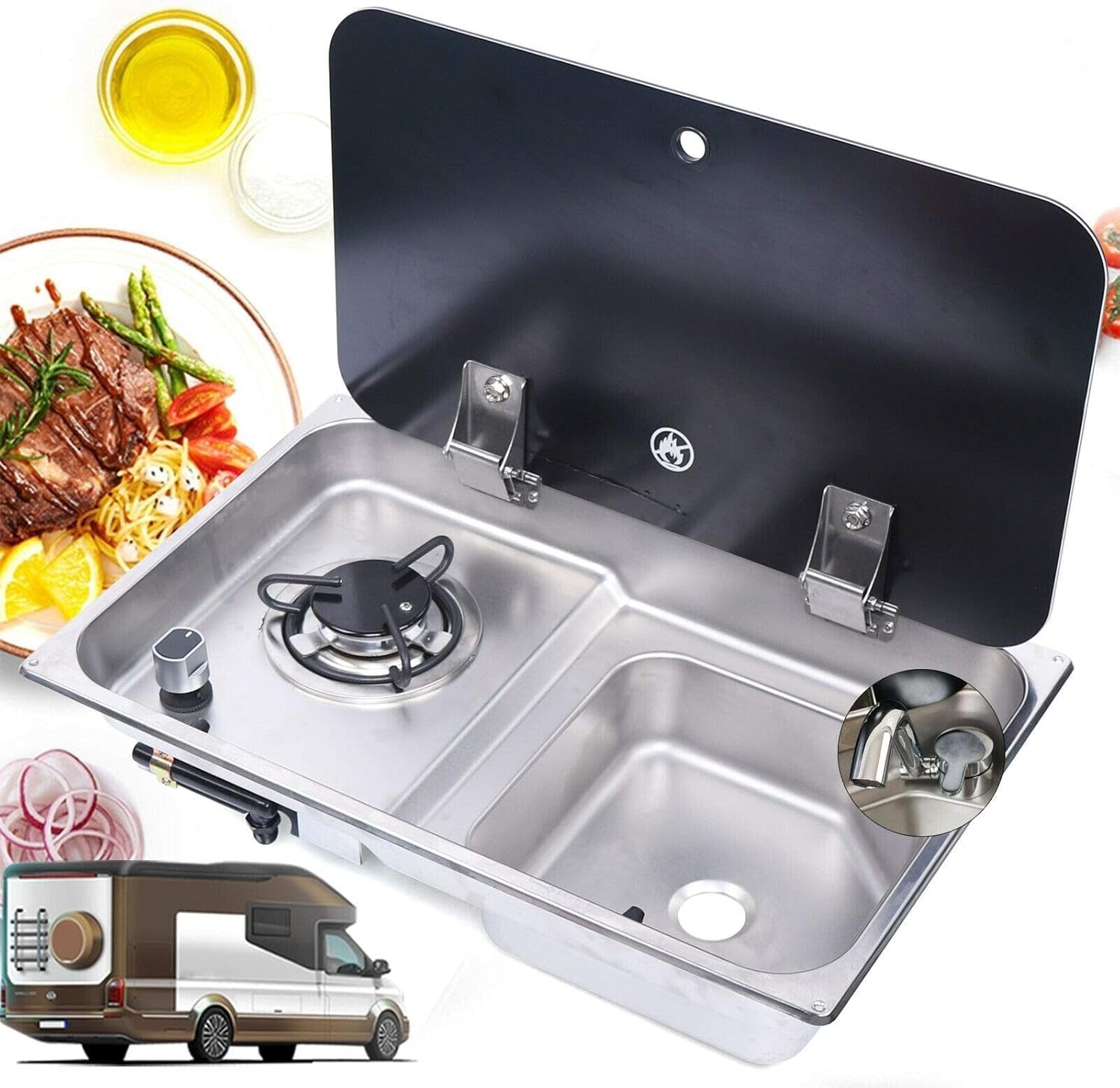

Combined sink with 1-burner gas stove - LxD 53x32cm
Combined sink with 1-burner stove (Gas)
Total dimensions at sink level: 530 * 325 * 120mm
Total dimensions at cooktop level: 530 * 325 * 50mm
Sink dimensions: 225 * 225 * 100mm

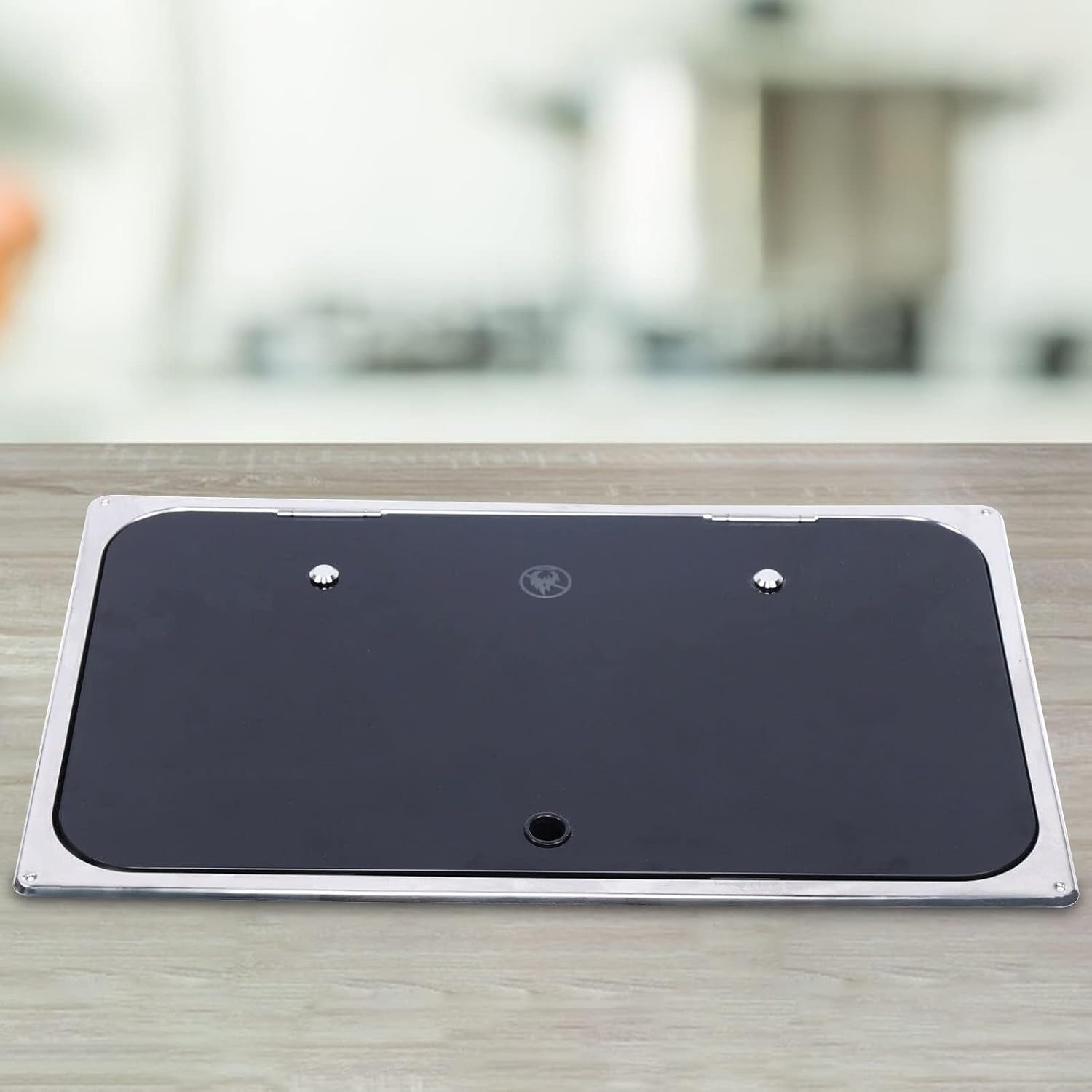

4 mm thick tempered glass lid
Sold as a complete ready-to-install pack
Thermocoupled system compatible with VASP Approval and others

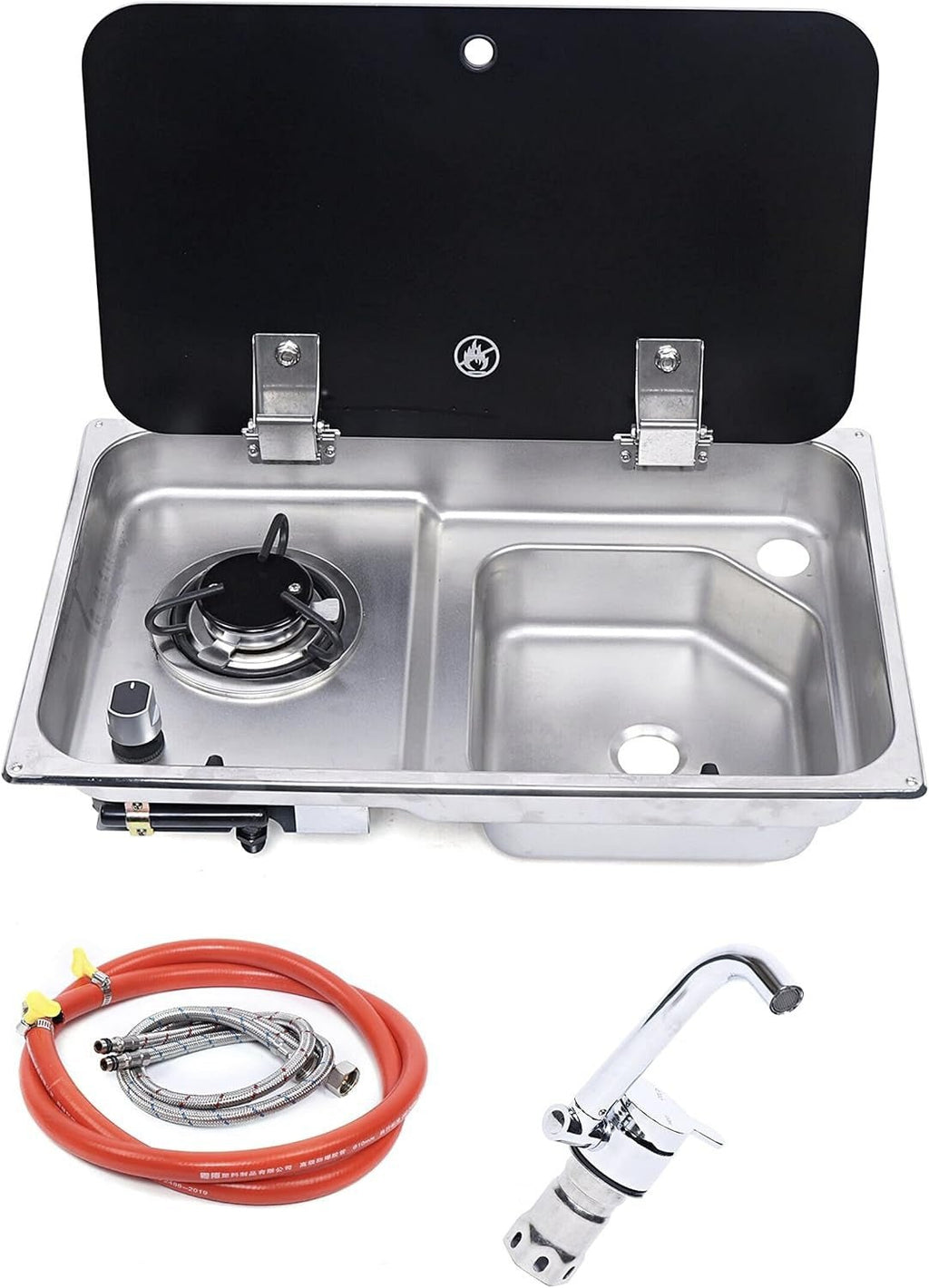

Pack contents:
Pack containing:
- Combined sink

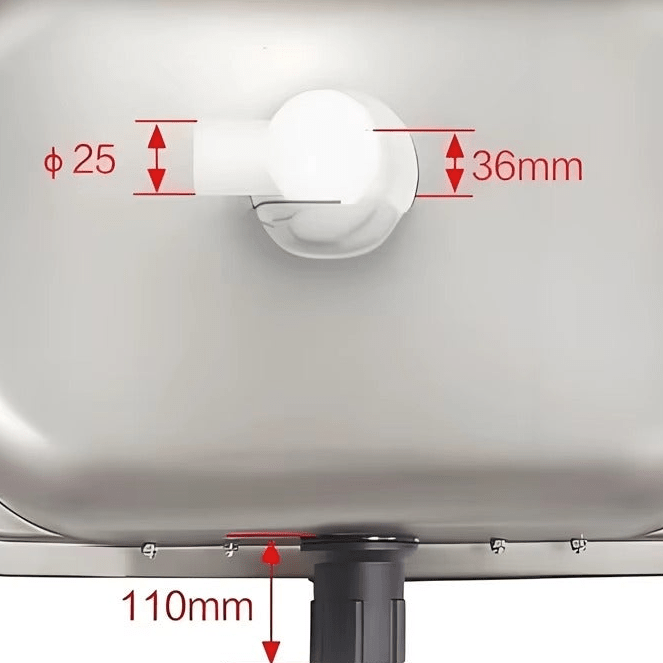

- Drain hose (25mm)
- Drain plug

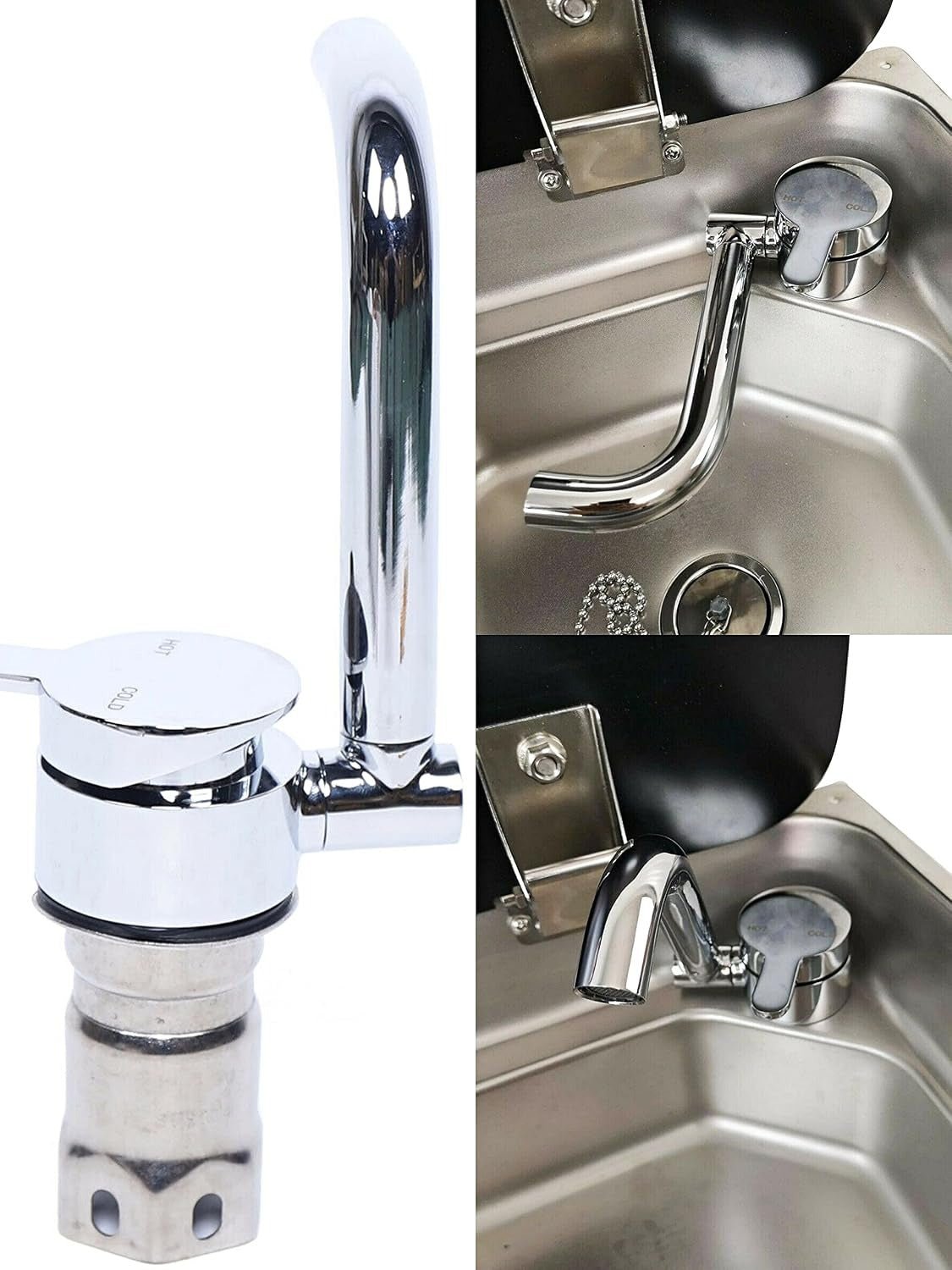

- Folding stainless steel hot/cold tap
- Connection hoses
- Cut-out template
- 12V 11L/min self-priming water pump
- Installation diagram
2-year warranty
Certificates: CE
The tap is without a switch and works with self-priming pumps (pumps that activate automatically when you open the tap and the pressure in the water system drops)
12 VDC water pump with bypass, membrane and pressure switch VANLIFE
Reference: EA4116
- Dimensions: 25 x 11.1 x 20.3 cm
- Weight: 1.9 kg
Product highlights
- Flow rate of 11 L/min without pulsation
- Silent pump
- Adjustable bypass regulation system
- Adjustable pressure switch preset at 2.4 bar
- Dry run resistant
- Potable water compatible
Technical specifications of the 12V VANLIFE water pump
- Input voltage: 12 V
- Current consumption: 3.2 A (max. 6A with preset)
- Max flow rate: 11.6 l/min
- Pressure switch: adjustable from 1.9 to 3.8 bar
- Inlet / outlet: male thread 1/2''
- Delivered with Ø 12 mm ribbed fitting (1 x straight + 1 x 90°)
- Required fuse: 10 A
Downloads
12V multi-membrane water pump 11.6 L/min WM VANLIFE
The 12V VANLIFE water pump will allow you to create a water system on board of your campervan or mini van.
It starts automatically thanks to its pressure switch and can supply several water points: shower head, tap, etc.
Equipped with 12 V electrical power, this diaphragm pump is installed outside your tank and will draw water to supply your tap or your shower head.
Thanks to the integrated pressure switch, the WM AQUATEC pump starts automatically, no need to install a contact tap!
The pump motor has several membranes, thus minimizing vibrations and ensuring quiet operation. The pump is also mounted on silent blocks, again to reduce noise.
The pump is self-priming up to 4 m, it can be installed higher than the water tank. Be aware that at this height the flow rate will be significantly affected.
Of excellent quality, the diaphragm pump delivers a flow rate of 11.6 L/min, it comes with Ø 12 mm ribbed fittings, straight + 90°, to simplify your installation on board your campervan or boat. A pre-filter is also provided to limit the passage of foreign bodies.
Made of drinking water certified materials, the pump is also equipped with a adjustable bypass regulation system. Indeed, if the requested pressure is too low, the pump bypasses, letting water pass without turning on.
Note: if you plan to install a water heater, check its compatibility with this pump.
