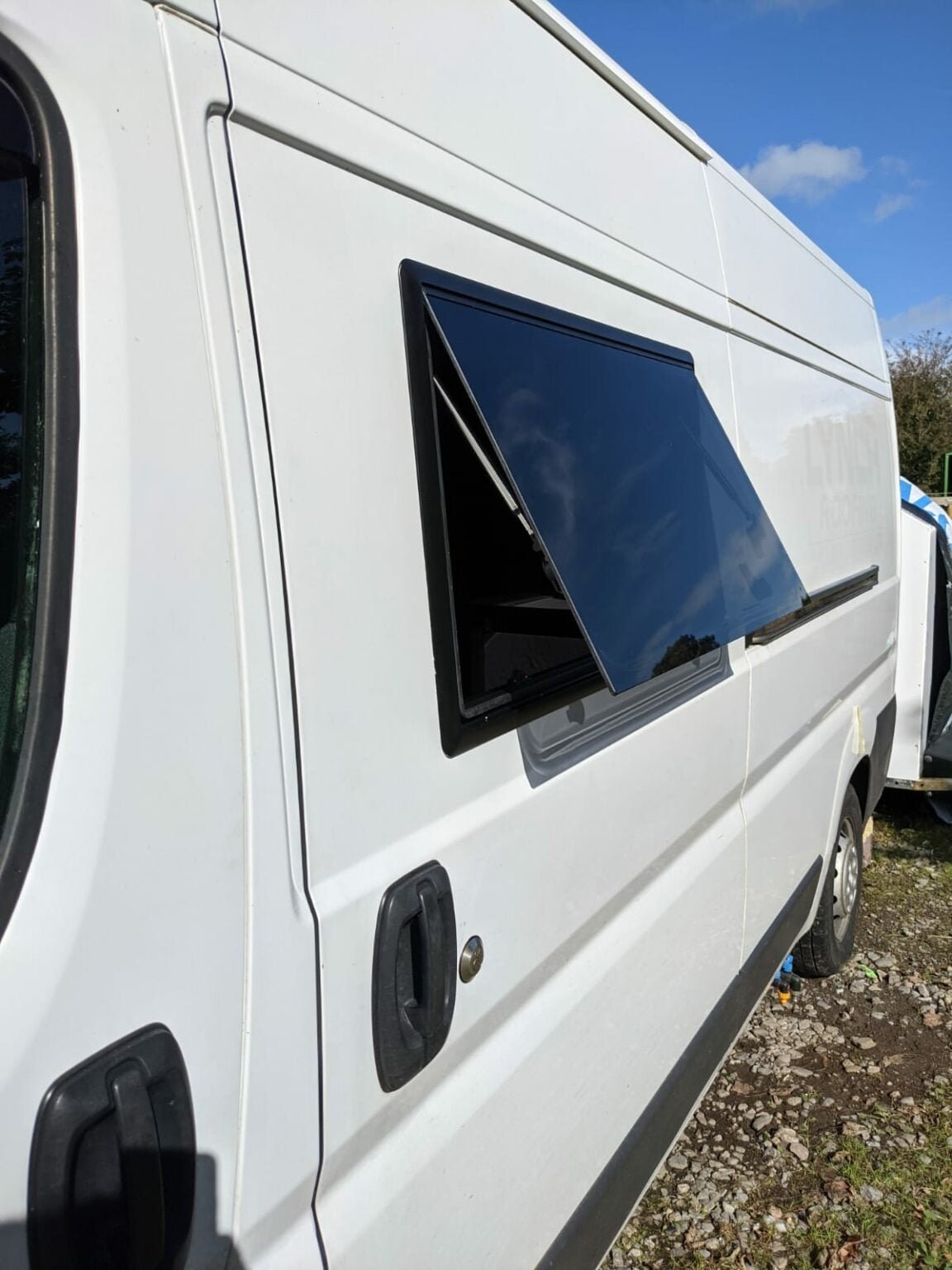

SQUARE Window 280 x 380 - with window blind and mosquito net

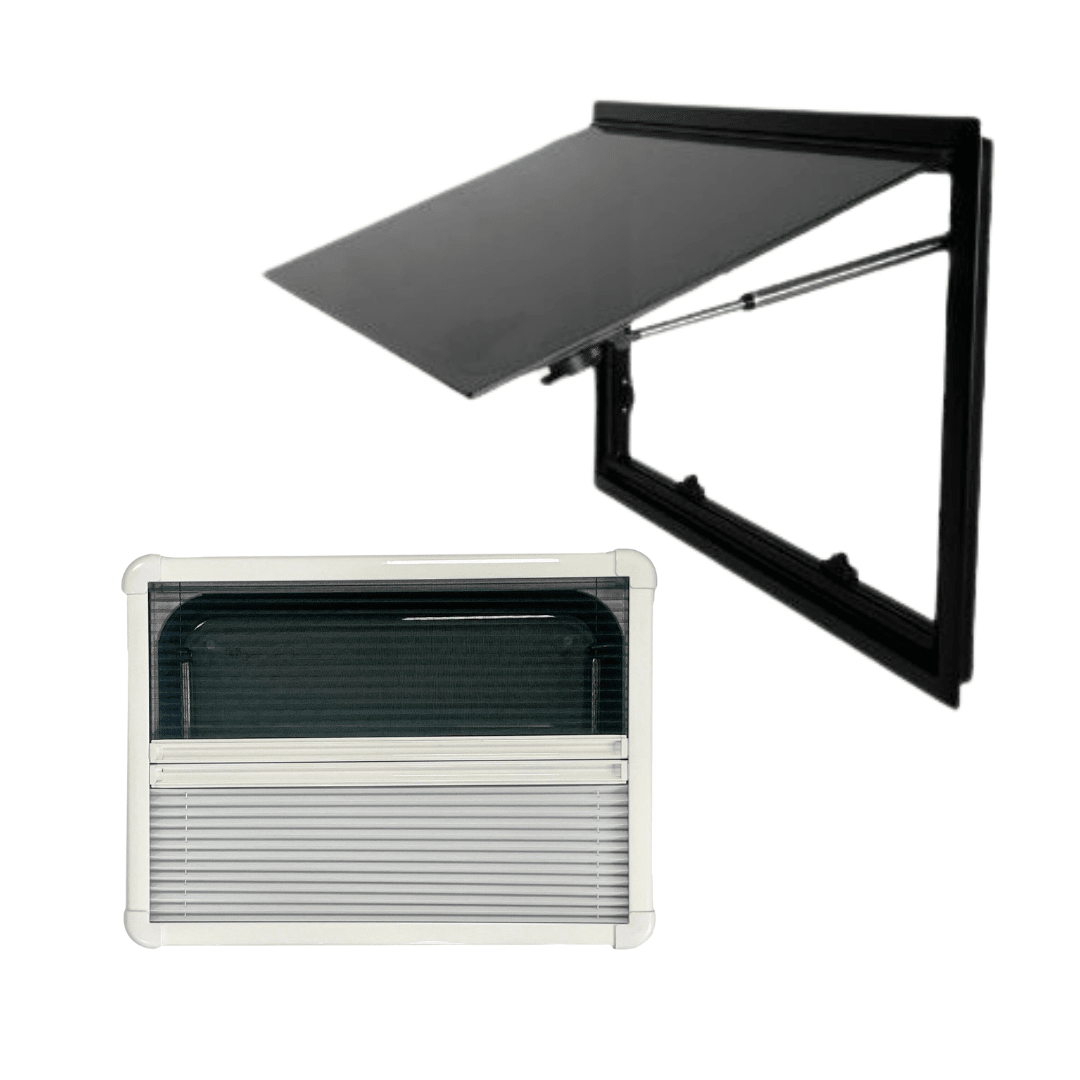

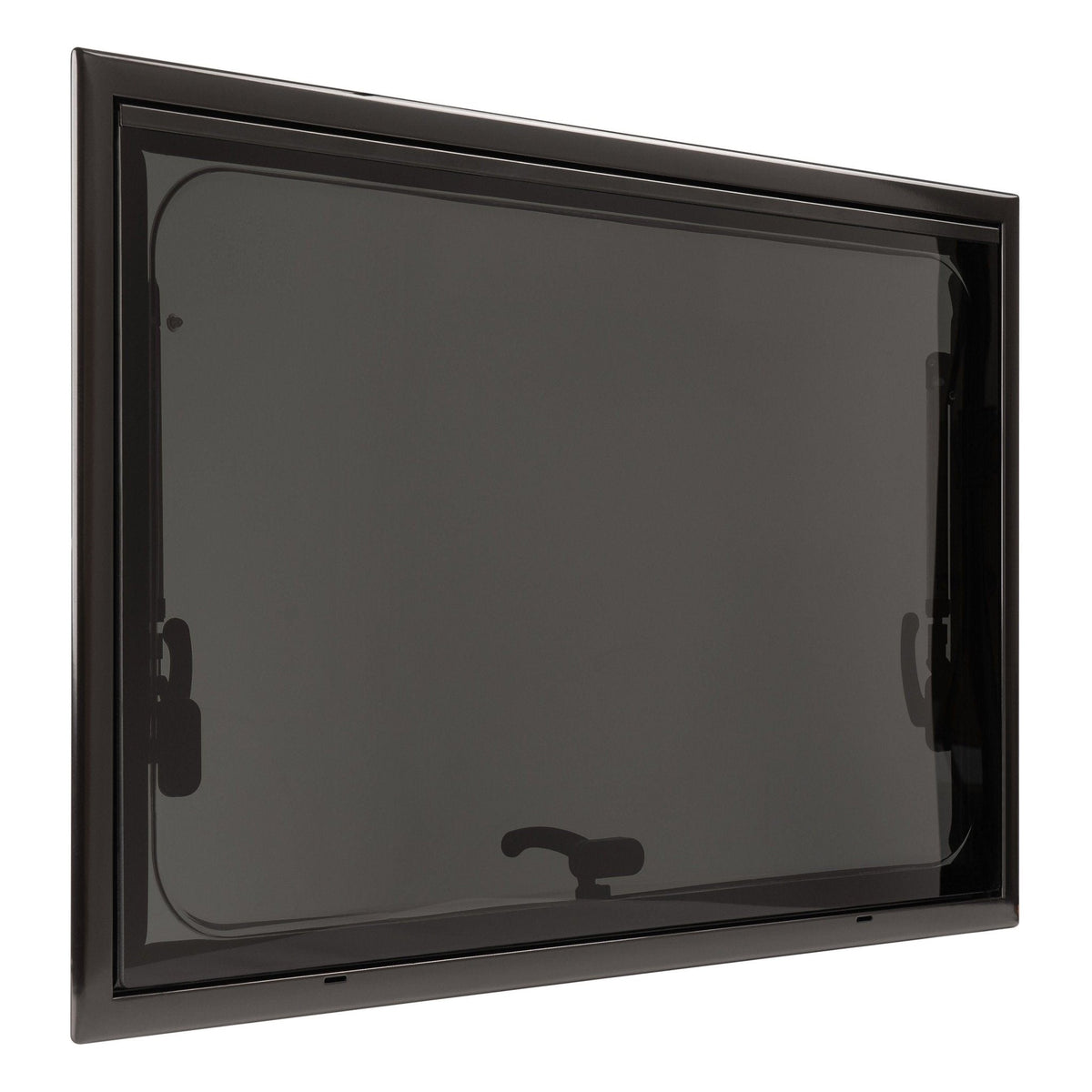

The SQUARE Top-hung window has square corners and dark-tinted double glazing, and is ECE R43 approved. It opens up to 70° and fits walls from 30 to 55 mm thick. Delivered complete: blackout blind, fly screen and aluminium mounting frame included.

Choosing the right size

This window measures 280 × 380: this is the cut-out size, meaning an opening 280 mm wide by 380 mm high. This is the only measurement that determines compatibility with your vehicle. Other dimensions are available on the SQUARE Top-hung window with blackout blind and fly screen product page.

Maximum recommended Cut-out dimensions by van (in mm)

* 450 mm on Master, Movano, NV400; 520 mm on Ducato, Jumper, Boxer, Sprinter, Crafter.

These values correspond to what the vehicle allows. The SQUARE Top-hung window is also available in large sizes, up to 1570 × 575, for Motorhomes, caravans and living units.

Reinforcements vary according to the year and model: mark out the cut-out on your wall and check that no reinforcement, cable or duct crosses it. If in doubt, send us a photo and we will confirm.

The outer frame extends 3 cm on each axis (overall: W + 3 cm × H + 3 cm).

💡 Good to know: the interior finishing frame is surface-mounted on the wall. It covers the edges of the cut-out without requiring additional space.

Benefits of the SQUARE window

• The square-corner look: straight, clean lines that complement the flat sides of vans and modern conversions.
• Privacy: the dark-tinted glazing (30% light transmission) keeps the interior shielded from prying eyes without making it dark.
• Double glazing: two UV-resistant acrylic panes that insulate much better than single glazing. The interior stays cooler in summer, warmer in winter, and condensation is reduced.
• A complete window: interior frame, blackout blind, fly screen, inner frame and screws are included. No accessories to order separately.

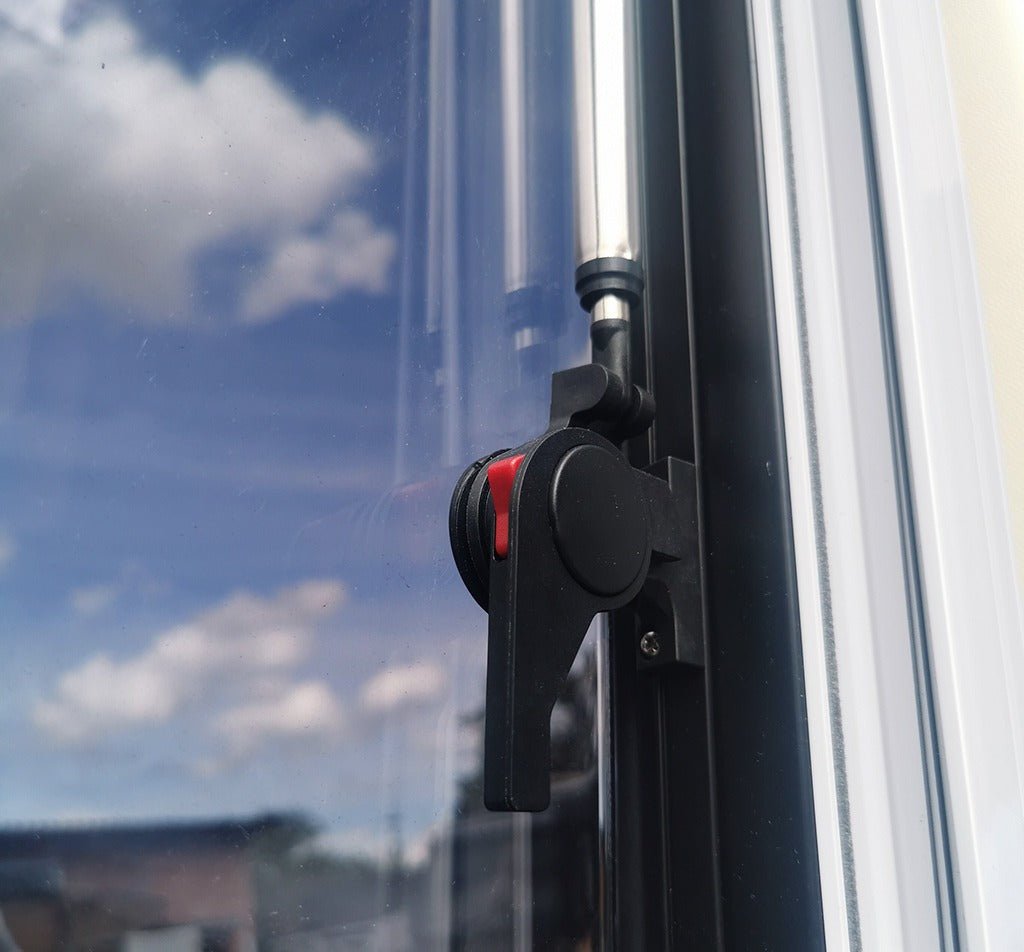

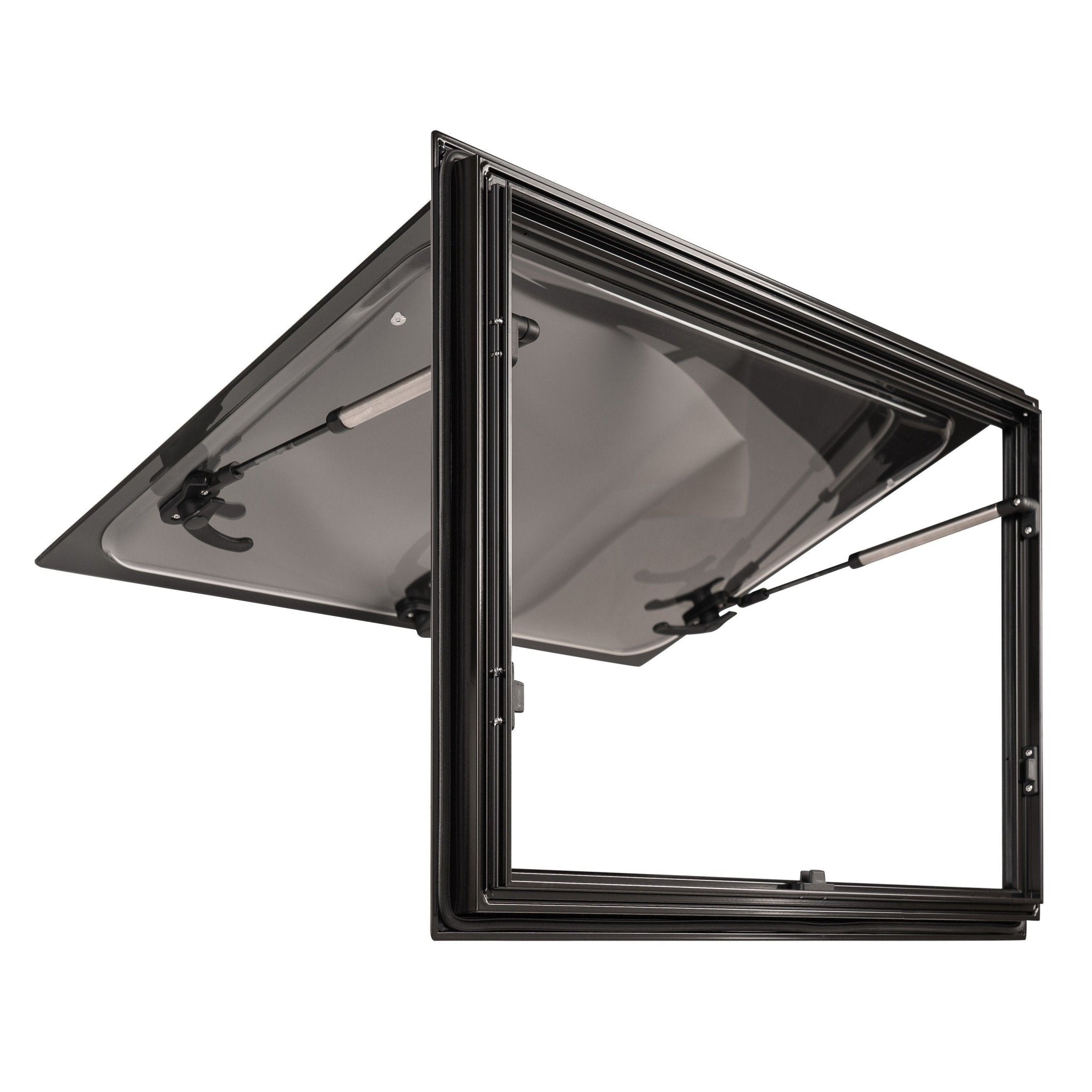

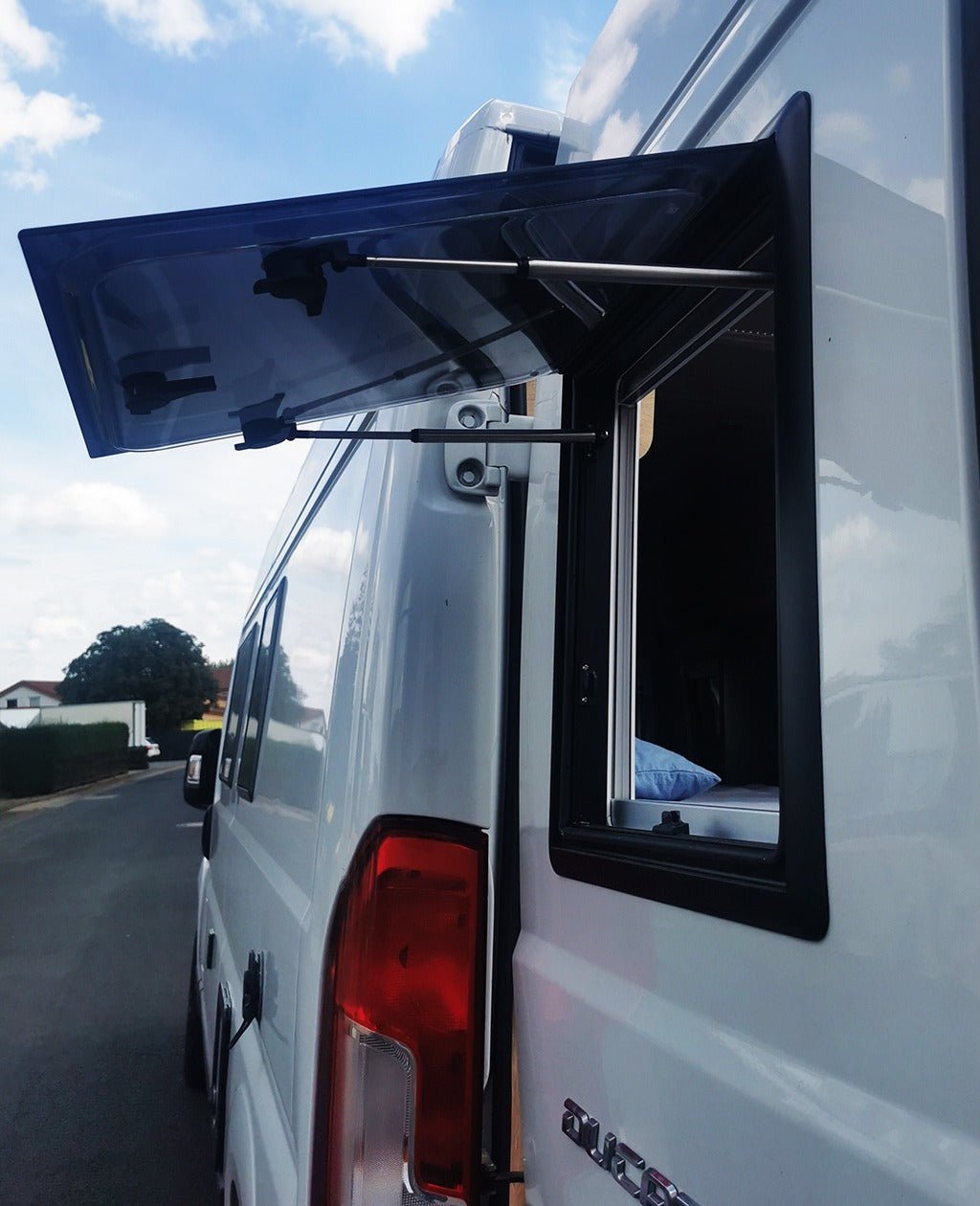

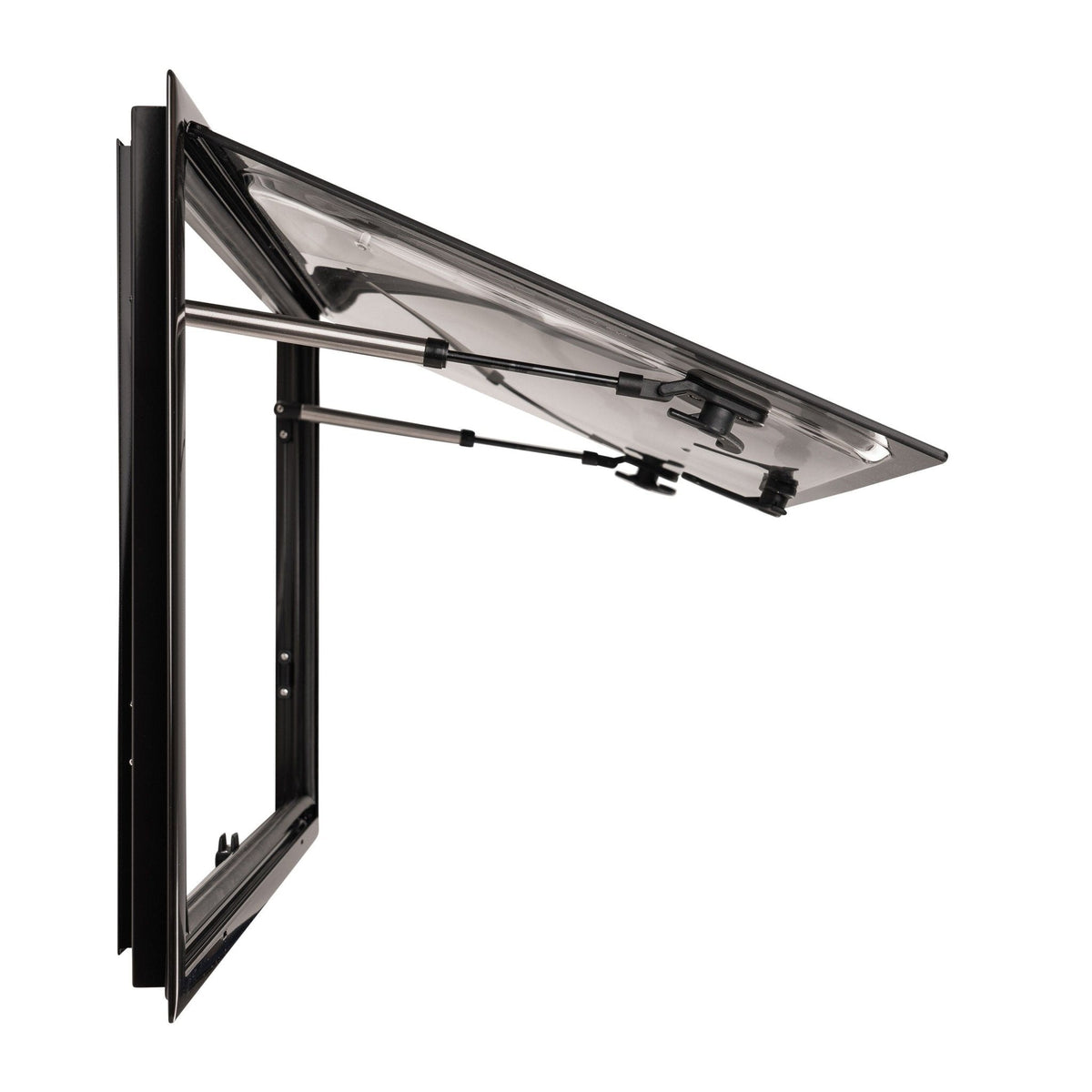

• Adjustable ventilation: the window opens outward up to 70° in 3 positions and locks with secure latches.
• Solid construction: a reinforced aluminium inner frame presses it against the wall, whether curved (van) or flat (Motorhome, caravan).
• Easy installation: the step-by-step installation tutorial guides you from marking out the cut-out to final tightening. Allow approximately 1 hour.
• Approved and durable: ECE R43 approval, 2-year warranty and spare parts available for 5 years.

Choosing the right model

Complete version or window only?

• Complete version (this product page): the window supplied with its interior frame, blackout blind and fly screen. Nothing else to add.
• SQUARE Top-hung window only: the same window without an interior frame, so you can finish the inside of the cut-out yourself.

Prefer clear glazing? See the SQUARE LIGHT (square corners, light tint).

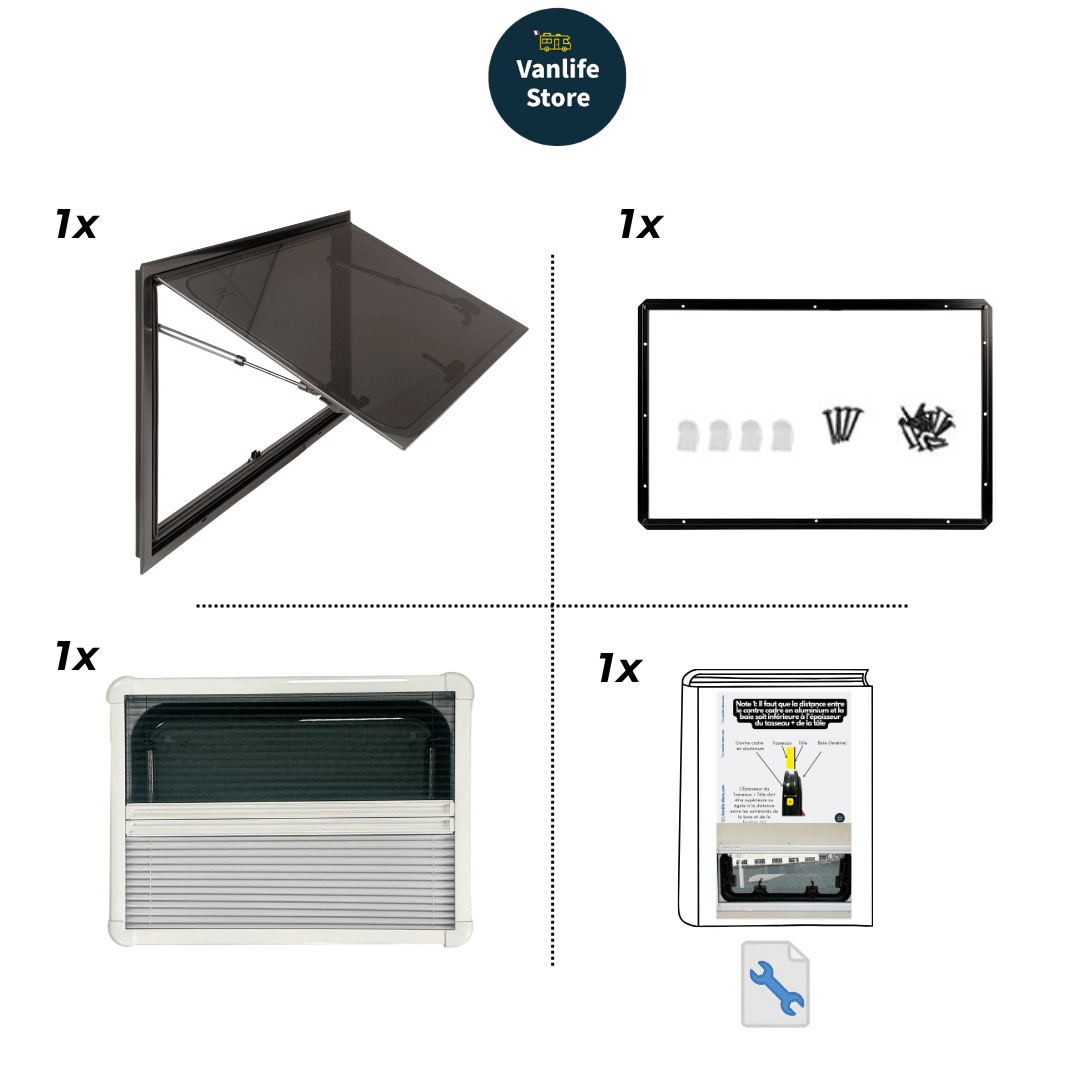

Package contents

In the box

• 1 × SQUARE Top-hung window
• 1 × Reinforced aluminium interior fixing inner frame
• 1 × Interior finishing frame with integrated blackout blind and fly screen
• 1 × Complete screw set
• 1 × Step-by-step installation tutorial

What you will need

• 1 tube of Sikaflex 265 per window
• Wooden battens or a wooden frame at least 25 mm thick (recommended on a panel van)
• Jigsaw and screwdriver

Allow approximately 1 hour for installation. Have two people available to position the window in the cut-out and hold it during screwing.

Downloads

• Top-hung window installation instructions (French PDF)
• Window selection guide (PDF, available in 6 languages)

Frequently asked questions

Q: Is it compatible with curved van walls?
A: Yes. The reinforced aluminium inner frame adapts equally well to curved walls (vans) and flat walls (Motorhomes, caravans). The slight gap on a curved wall is filled with Sikaflex.

Q: Is it approved for road use?
A: Yes, ECE R43: installation authorised without manufacturer approval in Europe, the United Kingdom and Switzerland. Compliant with roadworthiness testing and VASP requirements.

Q: Can I replace an existing window?
A: Yes, if the existing cut-out matches one of our dimensions. Measure the cut-out in the wall, not the visible frame of the old window. If it is slightly smaller, it can be enlarged with a jigsaw.
