SQUARE Window 1200 x 500 - with window blind and mosquito net

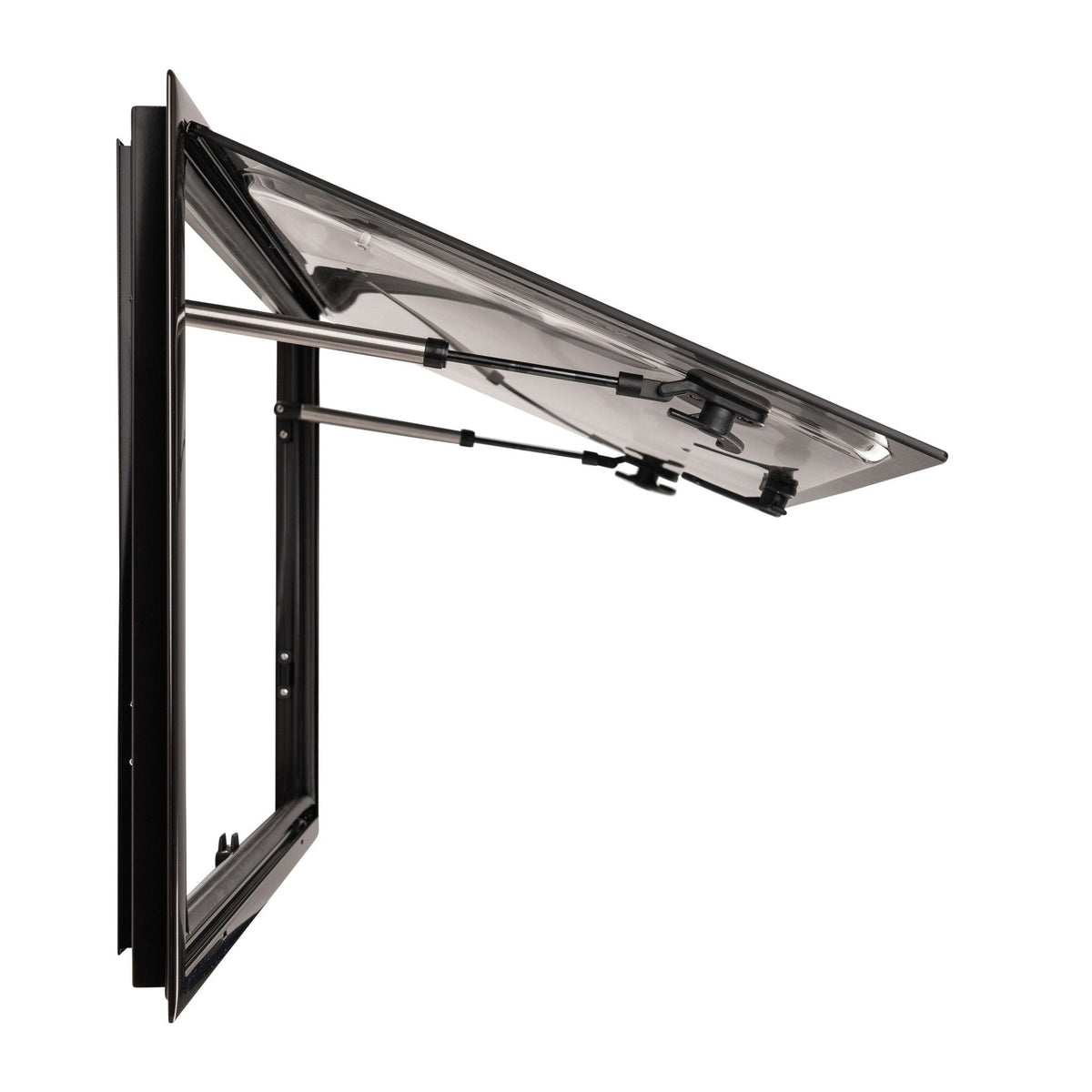

The SQUARE Top-hung window has square corners and dark-tinted double glazing, and is ECE R43 approved. It opens up to 70° and fits walls from 30 to 55 mm thick. Delivered complete: blackout blind, fly screen and aluminium mounting frame included.

Choose the right size

This window measures 1200 × 500: this is the cut-out size, meaning an opening 1200 mm wide by 500 mm high. This is the only measurement that determines compatibility with your vehicle. Other dimensions are available on the product page for the SQUARE Top-hung window with blackout blind and fly screen.

Maximum recommended Cut-out dimensions by van (in mm)

* 450 mm for Master, Movano, NV400; 520 mm for Ducato, Jumper, Boxer, Sprinter, Crafter.

These values correspond to what the vehicle allows. The SQUARE Top-hung window is also available in larger formats, up to 1570 × 575, for motorhomes, caravans and living units.

Reinforcements vary depending on the year and model: mark the cut-out on your wall and check that no reinforcement, cable or conduit crosses it. If in doubt, send us a photo and we will confirm.

The exterior frame extends 3 cm along each axis (overall: W + 3 cm × H + 3 cm).

💡 Good to know: the interior finishing frame is surface-mounted on the wall. It covers the edges of the cut-out without requiring additional space.

Benefits of the SQUARE window

• The look of the square corners: straight, clean lines that match the flat sides of vans and modern interiors.

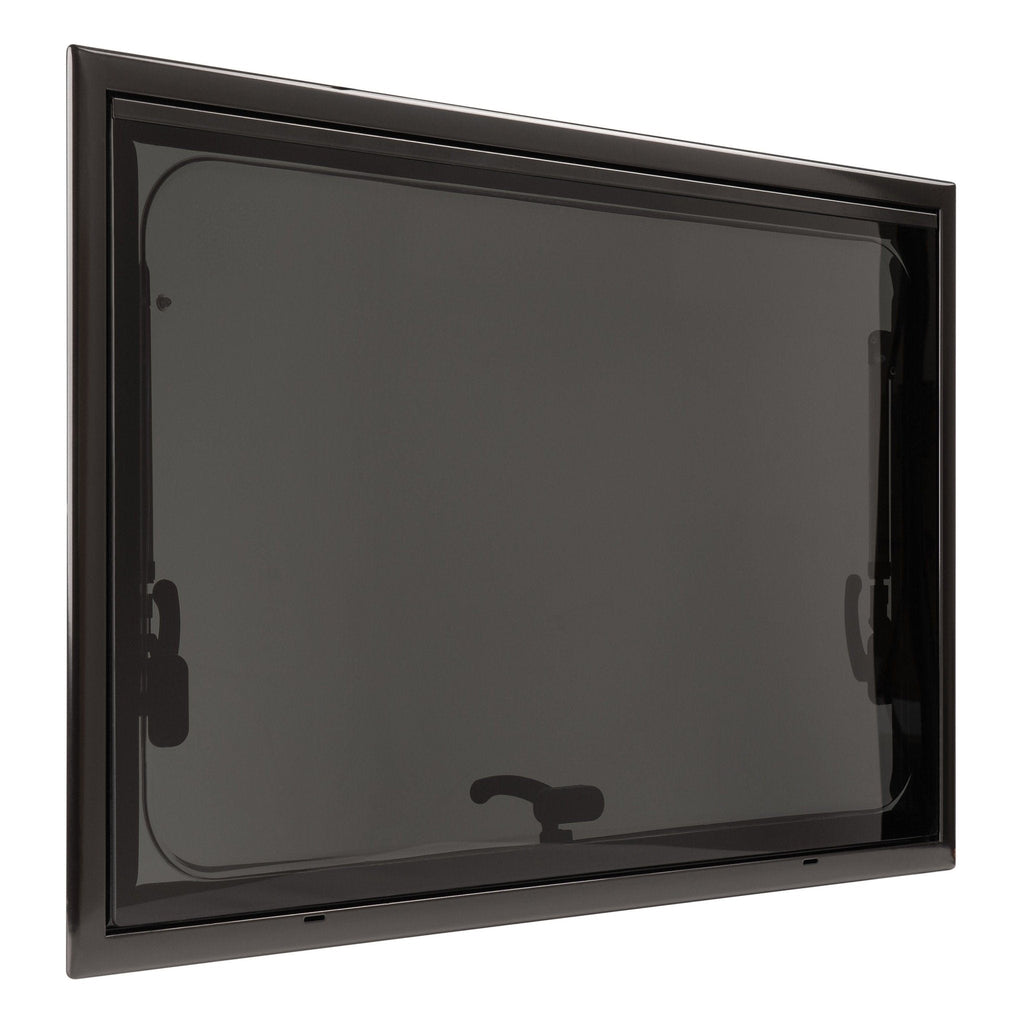

• Privacy: the dark-tinted glazing (30% light transmission) keeps the interior out of sight without making it dark.
• Double glazing: two UV-resistant acrylic panes that provide much better insulation than single glazing. The interior stays cooler in summer, warmer in winter, and condensation is reduced.
• A complete window: interior frame, blackout blind, fly screen, inner frame and screws are included. No separate accessories to order.

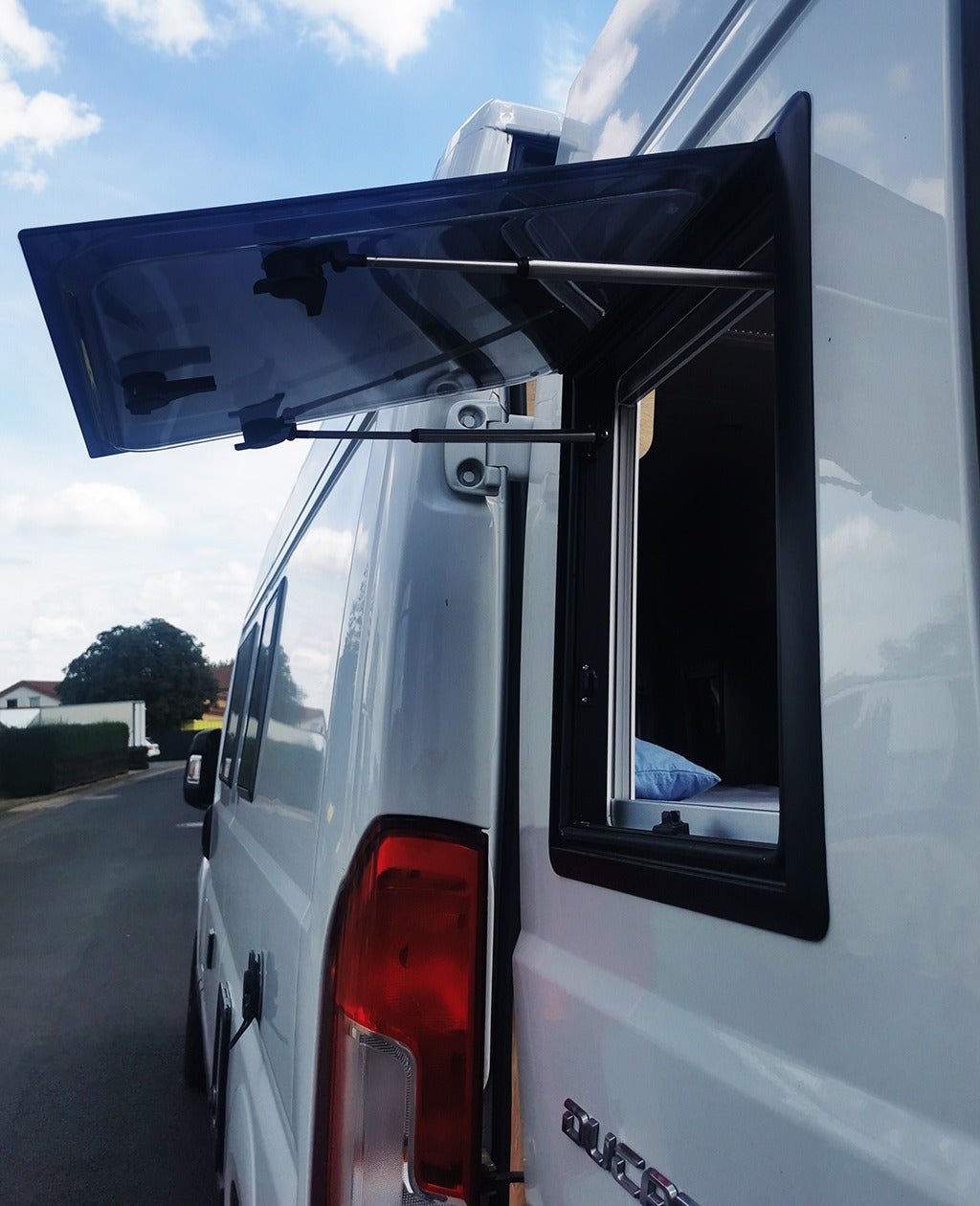

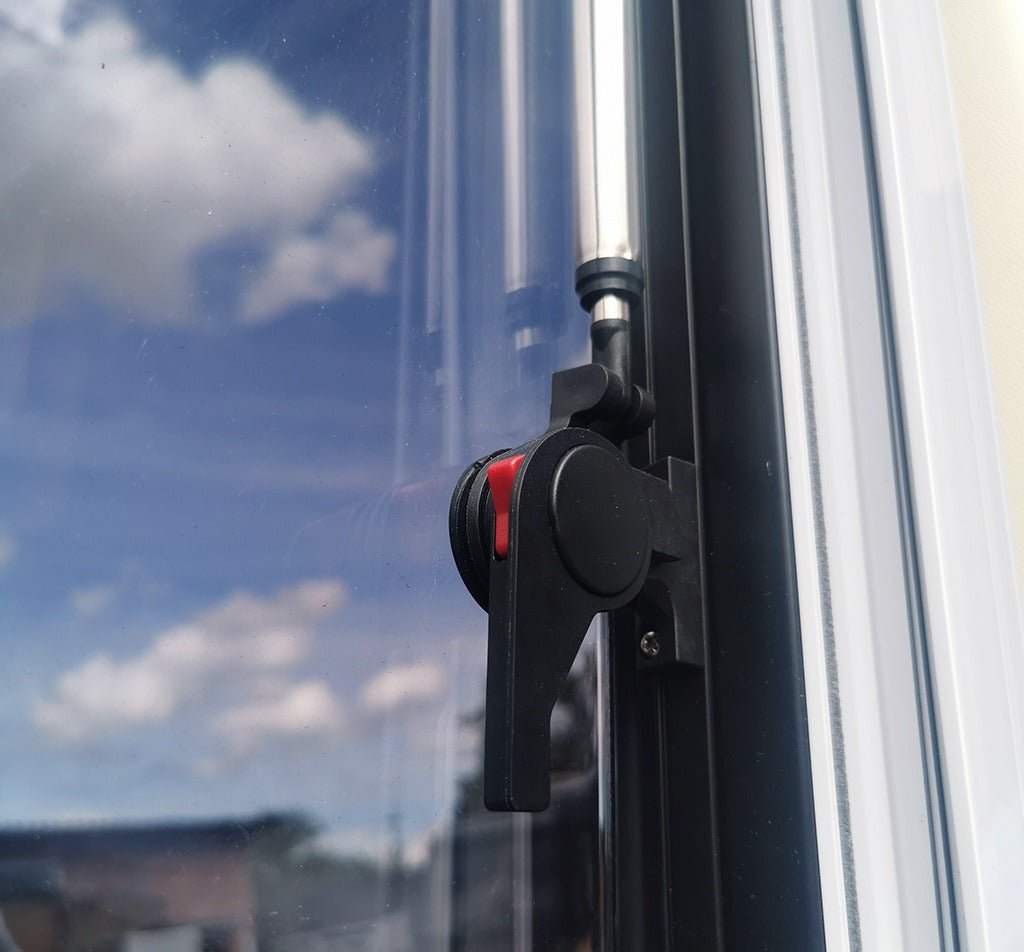

• Adjustable ventilation: the window opens outward up to 70° in 3 positions and locks with secure latches.

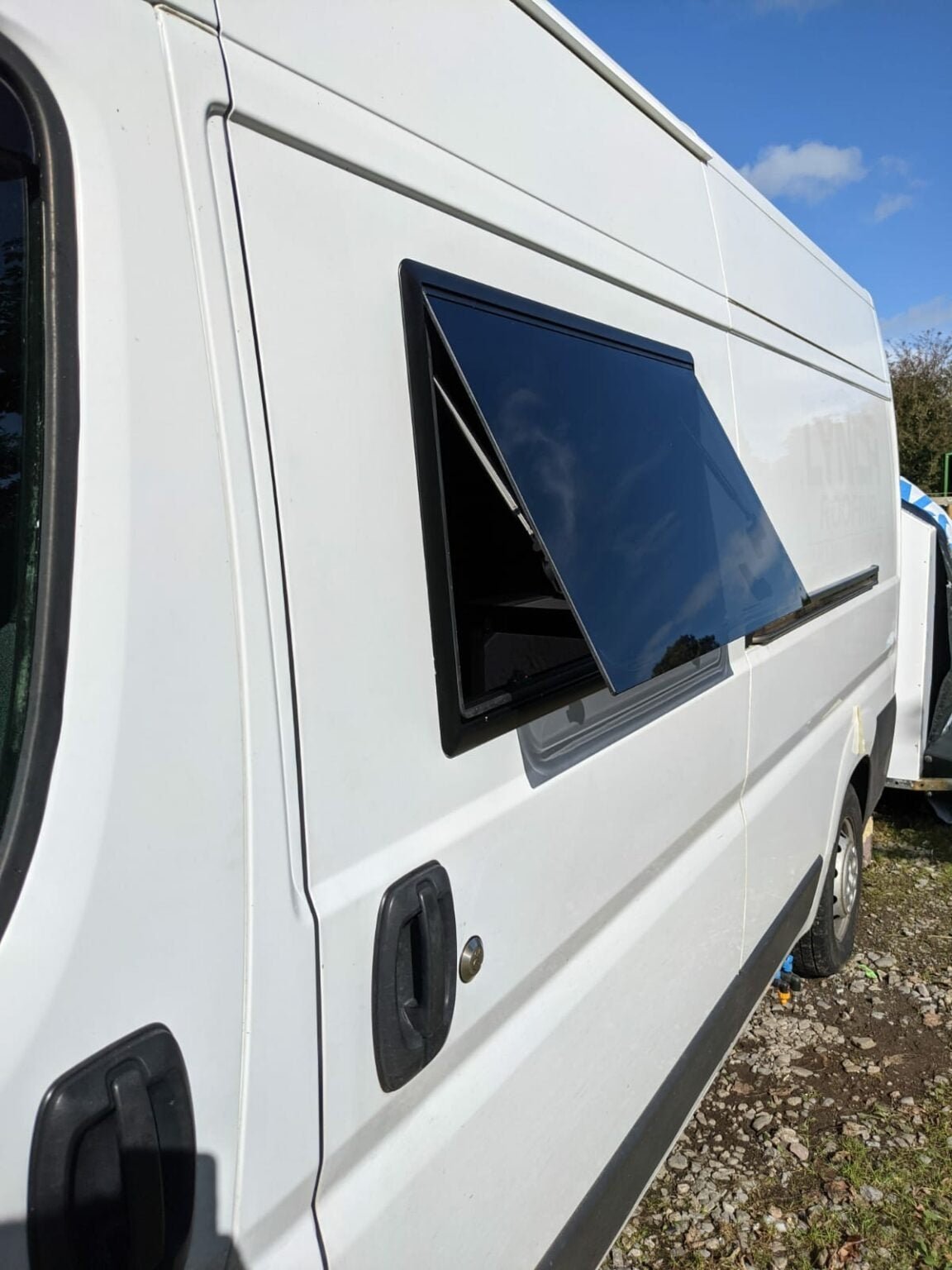

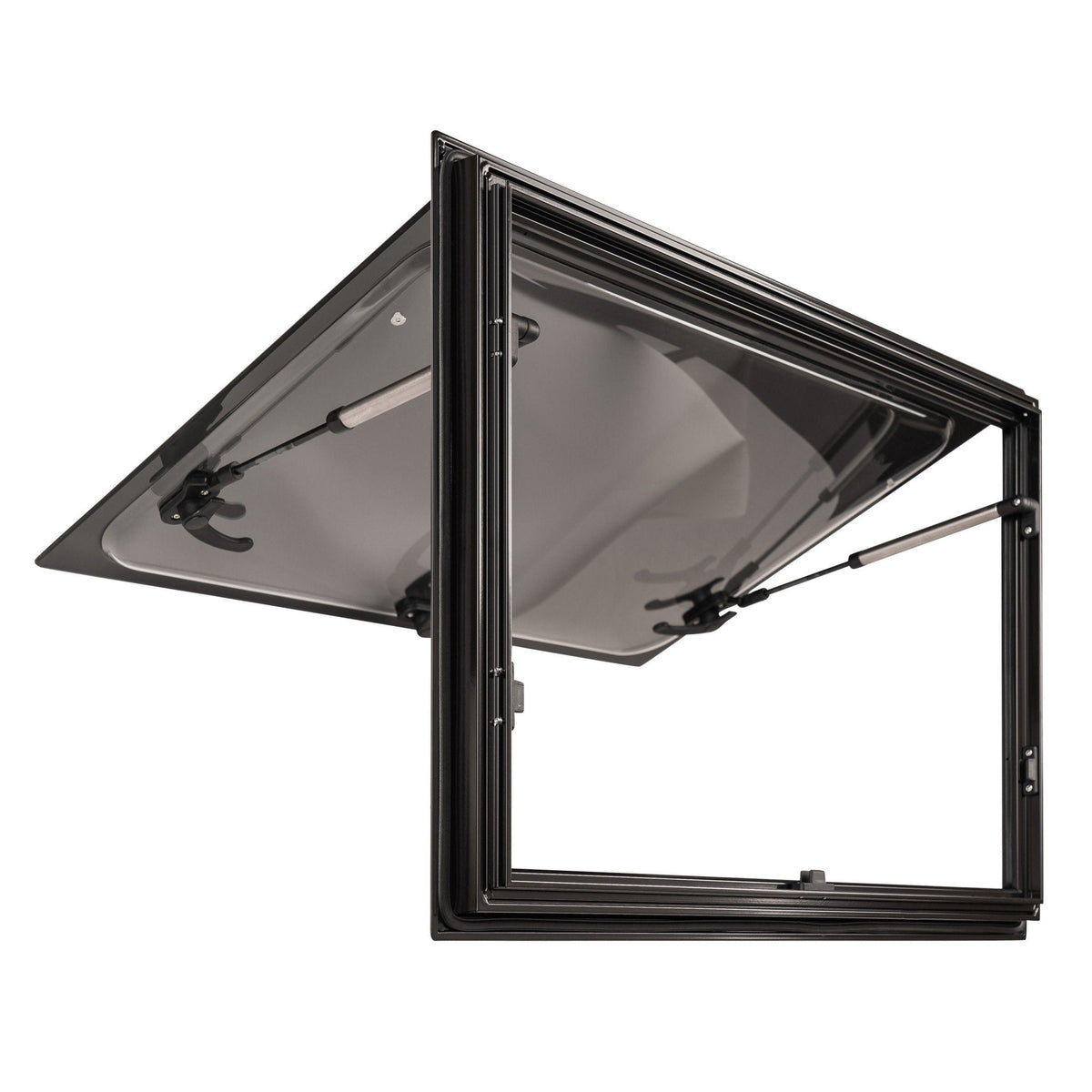

• A sturdy structure: a reinforced aluminium inner frame holds it firmly against the wall, whether curved (van) or flat (motorhome, caravan).
• Easy installation: the step-by-step installation tutorial guides you from marking the cut-out to final tightening. Allow around 1 hour.
• Approved and durable: ECE R43 approval, 2-year warranty and spare parts available for 5 years.

Choose the right model

Complete version or window only?

• Complete version (this product page): the window supplied with its interior frame, blackout blind and fly screen. Nothing else to add.
• SQUARE Top-hung window - window only: the same window without an interior frame, so you can finish the inside of the cut-out yourself.

Would you prefer clear glazing? See the SQUARE LIGHT (square corners, light tint).

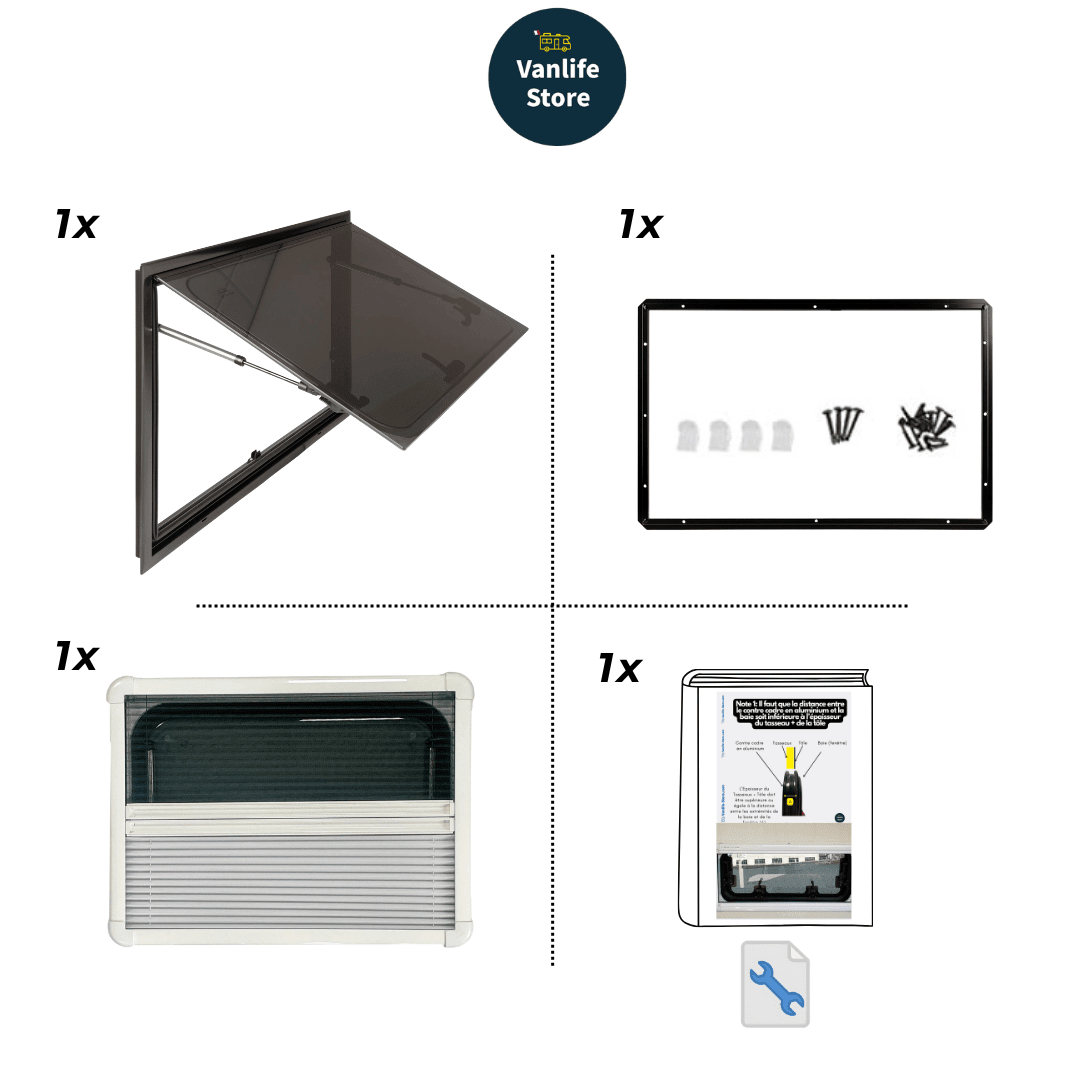

Package contents

In the box

• 1 × SQUARE Top-hung window
• 1 × Reinforced aluminium inner fixing frame

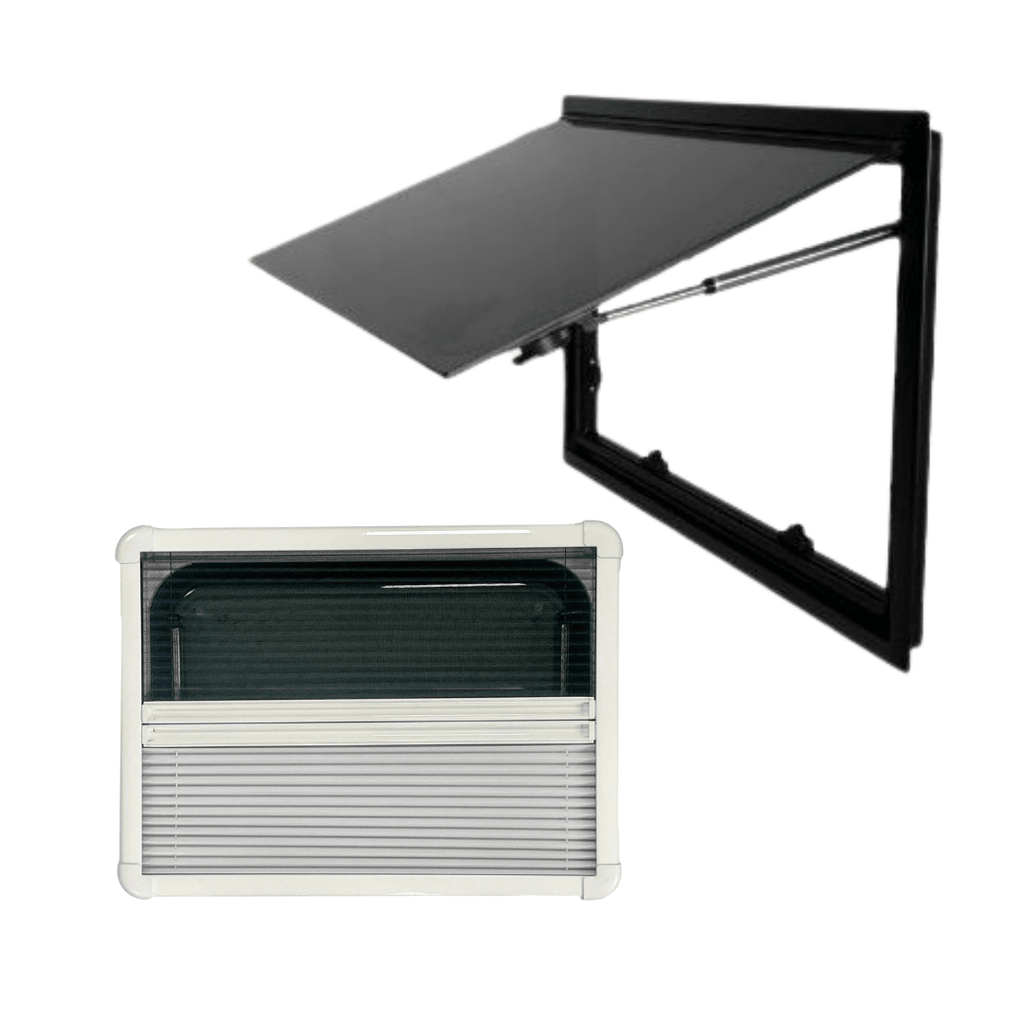

• 1 × Interior finishing frame with integrated blackout blind and fly screen
• 1 × Complete screw set
• 1 × Step-by-step installation tutorial

What you will need

• 1 tube of Sikaflex 265 per window
• Wooden battens or a frame at least 25 mm thick (recommended for panel vans)
• Jigsaw and screwdriver

Allow around 1 hour for installation. Plan for two people to position the window in the cut-out and hold it while screwing it in place.

Downloads

• Installation instructions for top-hung windows (French PDF)
• Window selection guide (PDF, available in 6 languages)

Frequently asked questions

Q: Is it compatible with curved van walls?
A: Yes. The reinforced aluminium inner frame adapts equally well to curved walls (vans) and flat walls (motorhomes, caravans). The small gap on a curved wall is filled with Sikaflex.

Q: Is it approved for road use?
A: Yes, ECE R43: installation is authorised without manufacturer approval in Europe, the United Kingdom and Switzerland. It complies with roadworthiness testing and VASP requirements.

Q: Can I replace an existing window?
A: Yes, if the existing cut-out matches one of our dimensions. Measure the cut-out in the wall, not the visible frame of the old window. If it is slightly smaller, it can be enlarged with a jigsaw.

Unsure about the size? Contact our technical team; we reply within 24 hours maximum.
