LIGHT Window 900 x 500 - window for Campervan and Motorhome

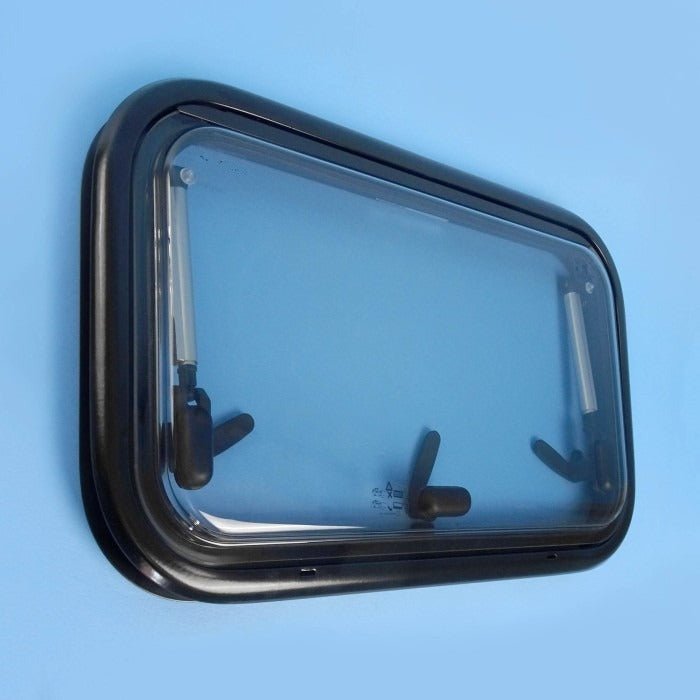

The LIGHT Top-hung window has rounded corners and light-tinted double glazing, and is ECE R43 approved. It opens outwards and fits walls from 30 to 55 mm thick. Sold on its own with its aluminium mounting frame, without blind or fly screen.

Choose the right size

This window measures 900 × 500: these are the cut-out dimensions, meaning an opening 900 mm wide by 500 mm high. This is the only measurement that determines compatibility with your vehicle. Other sizes are available on the LIGHT Top-hung window product page.

Maximum recommended Cut-out dimensions by van (in mm)

* 450 mm on Master, Movano, NV400; 520 mm on Ducato, Jumper, Boxer, Sprinter, Crafter.

These values correspond to what the vehicle allows: the LIGHT Top-hung window alone is available up to 900 × 500.

Reinforcements vary depending on the year and model: mark out the cut-out on your wall and check that no reinforcement, cable or duct passes through it. If in doubt, send us a photo and we will confirm.

The exterior frame extends 3 cm along each axis (overall dimensions: L + 3 cm × H + 3 cm).

Benefits of the LIGHT window

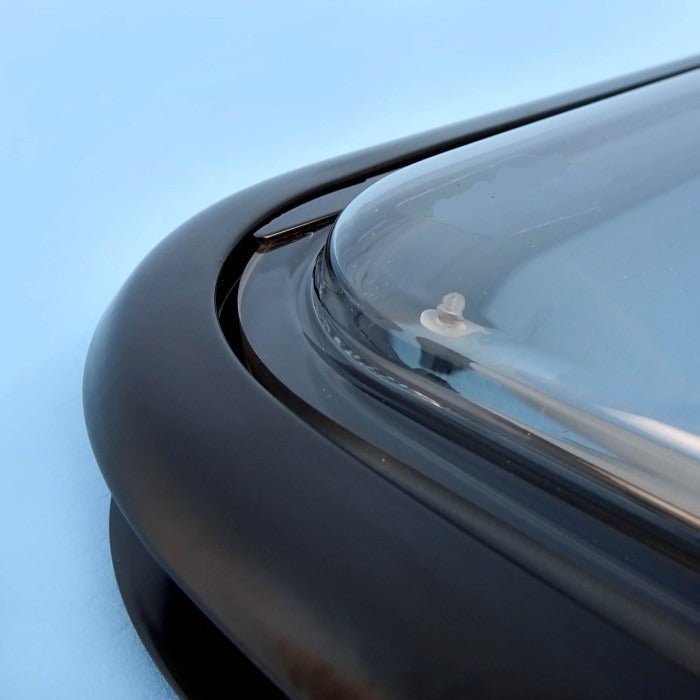

• The double glazing: two UV-resistant acrylic panes that provide much better insulation than single glazing. The interior stays cooler in summer, warmer in winter, and condensation is reduced.
• The light tint: 70% light transmission, keeping the interior bright while maintaining privacy from outside.

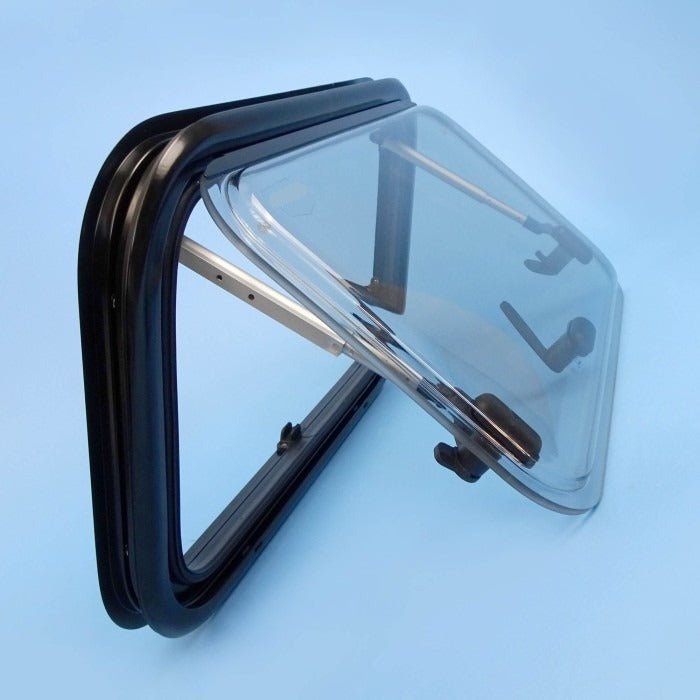

• Adjustable ventilation: the window opens outward in 3 positions and locks with secure latches.

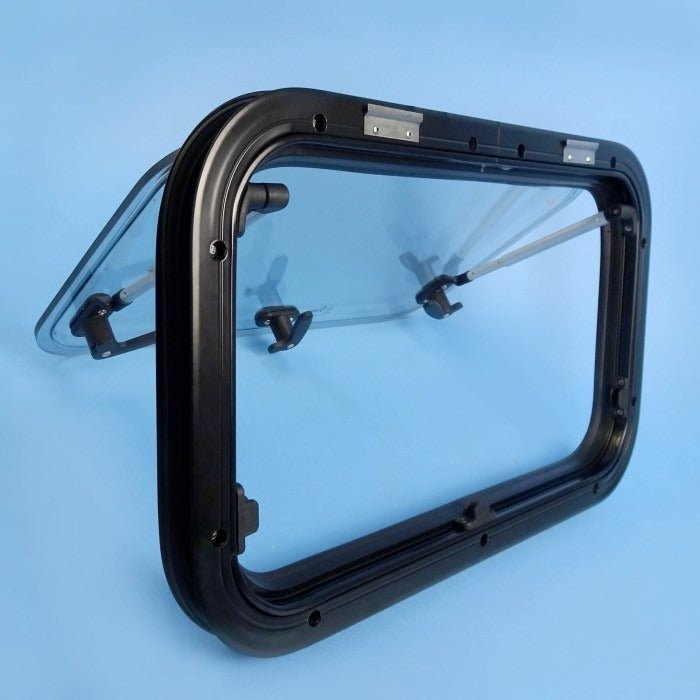

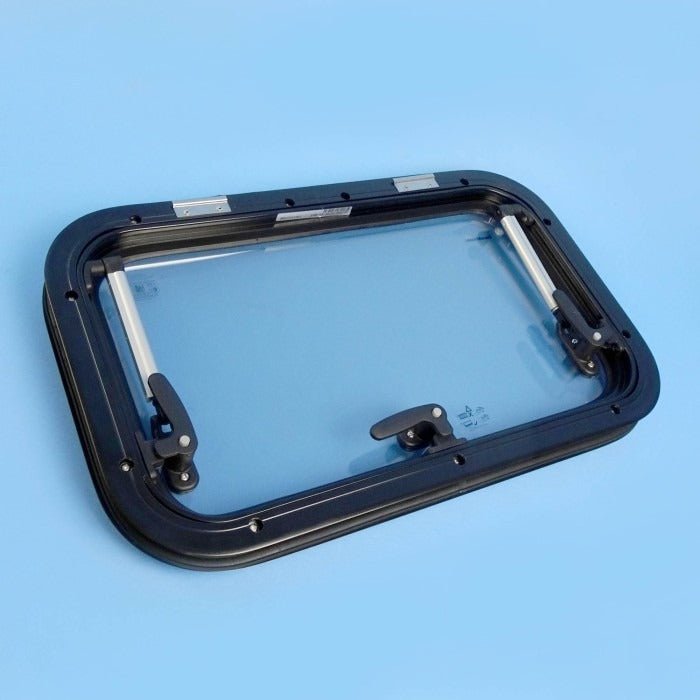

• A solid structure: a reinforced aluminium counter-frame braces the panel against the wall, whether curved (van) or flat (Motorhome, caravan).
• Freedom to finish the interior your way: wood or fabric trim, or an interior frame with blackout blind and fly screen added later.
• Easy installation: the step-by-step installation tutorial guides you from marking out the cut-out to final tightening. Allow approximately 1 hour.
• Approved and durable: ECE R43 approval, 2-year warranty and spare parts available for 5 years.

Choose the right model

Window alone or complete version?

• Window alone (this product): to finish the inside of the cut-out yourself, or add a white or black interior frame with blackout blind and fly screen later, sold separately.
• LIGHT Top-hung window with blackout blind and fly screen: the same window, supplied complete with its interior frame, blackout blind and fly screen.

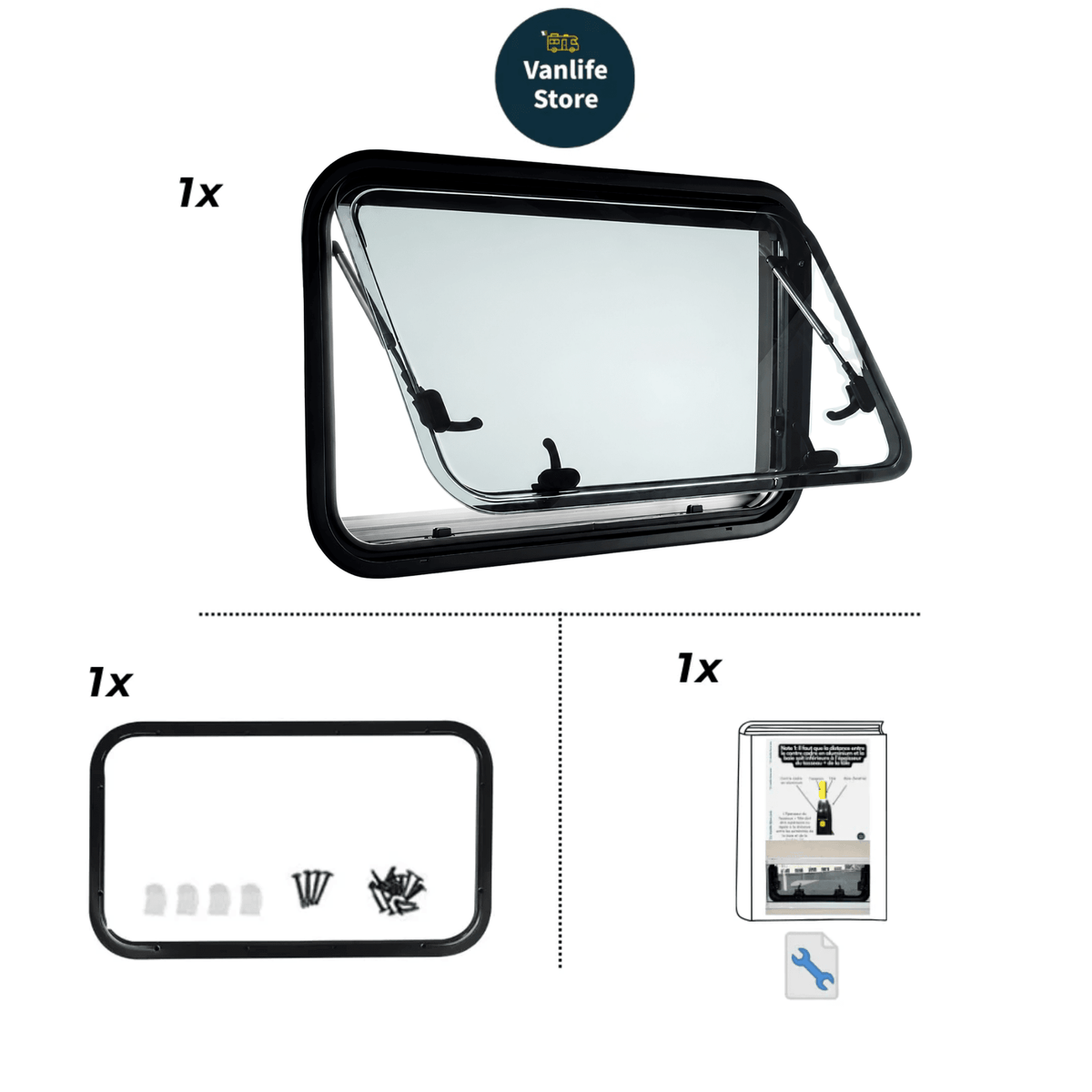

Package contents

In the box

• 1 × LIGHT Top-hung window
• 1 × Reinforced aluminium interior fixing counter-frame
• 1 × Complete hardware set
• 1 × Step-by-step installation tutorial

Not included: finishing interior frame, blackout blind and fly screen.

What you will need

• 1 tube of Sikaflex 265 per window
• Wood battens or a wooden frame at least 25 mm thick (recommended on a panel van)
• Jigsaw and screwdriver
• Materials to finish the inside of the cut-out, or an interior frame with blackout blind and fly screen

Allow approximately 1 hour for installation. Plan for two people to position the window in the cut-out and hold it in place while screwing.

Downloads

• Top-hung window installation instructions (French PDF)
• Window selection guide (PDF, available in 6 languages)

Frequently asked questions

Q: Is it compatible with curved panel van walls?
A: Yes. The reinforced aluminium counter-frame adapts equally well to curved walls (vans) and flat walls (Motorhomes, caravans). The small gap on a curved wall is filled with Sikaflex.

Q: Is it approved for road use?
A: Yes, ECE R43: installation is authorised without manufacturer approval in Europe, the United Kingdom and Switzerland. Compliant with roadworthiness inspections and VASP requirements.

Q: Can I add a blackout blind and fly screen later?
A: Yes. The interior frame with blackout blind and fly screen, in white or black, can be ordered separately. Check its product page to make sure your size is available, or contact us.

Unsure about the size? Contact our technical team; we will reply within 24 hours.
