Technical Specifications

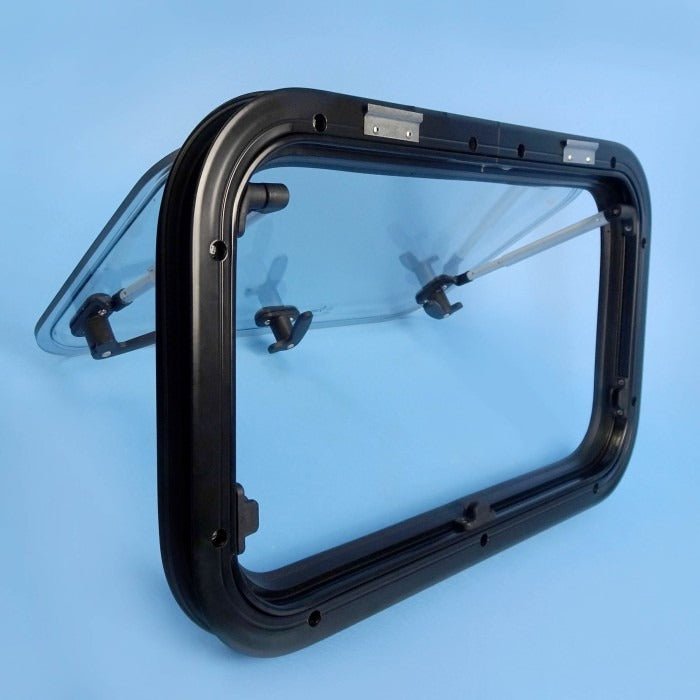

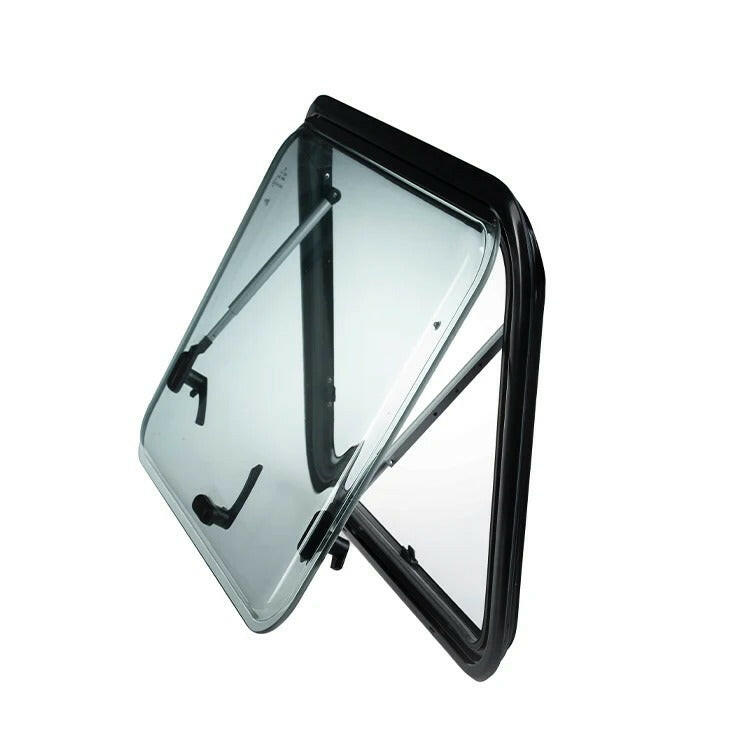

- Type: Push window
- Glazing: UV-resistant acrylic double glazing tinted light grey (70% light transmission)

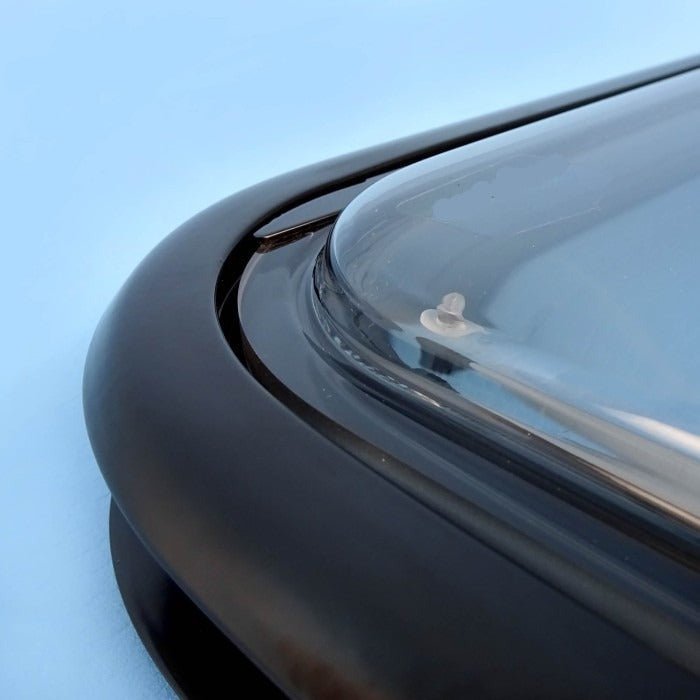

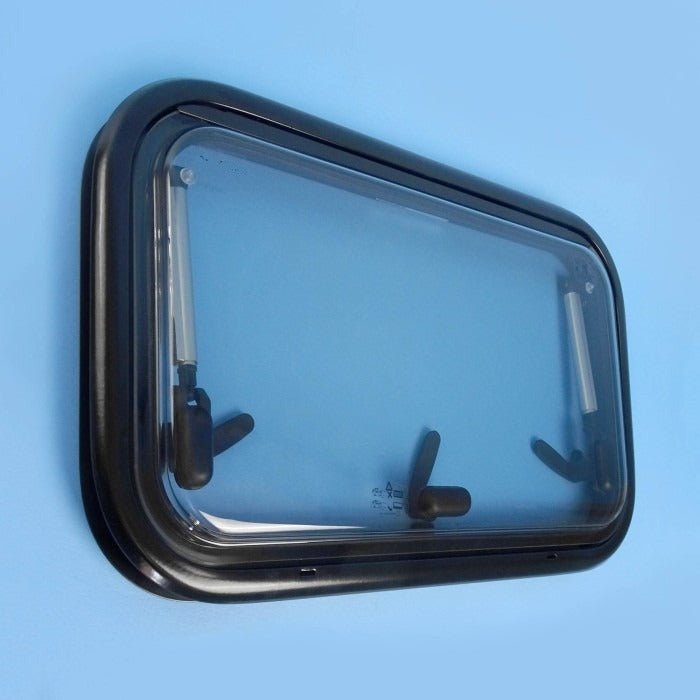

- Outer frame: black aluminium, glazing with rounded corners

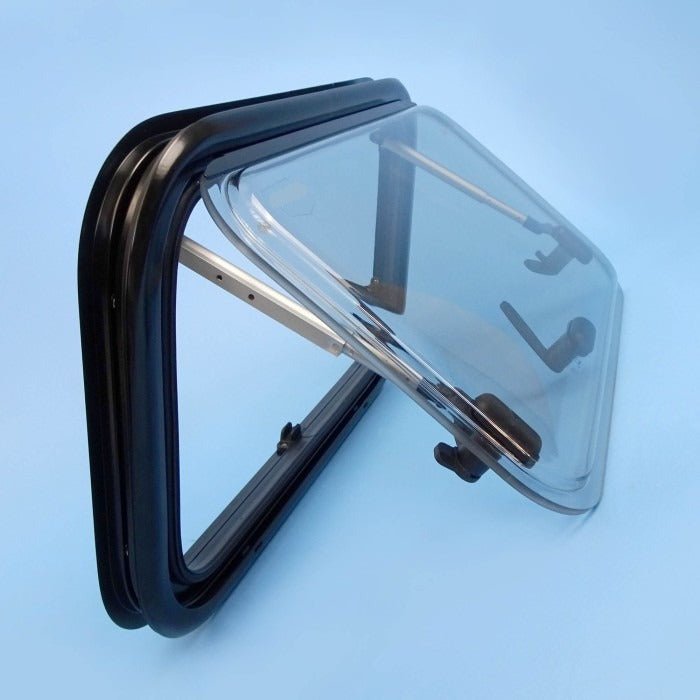

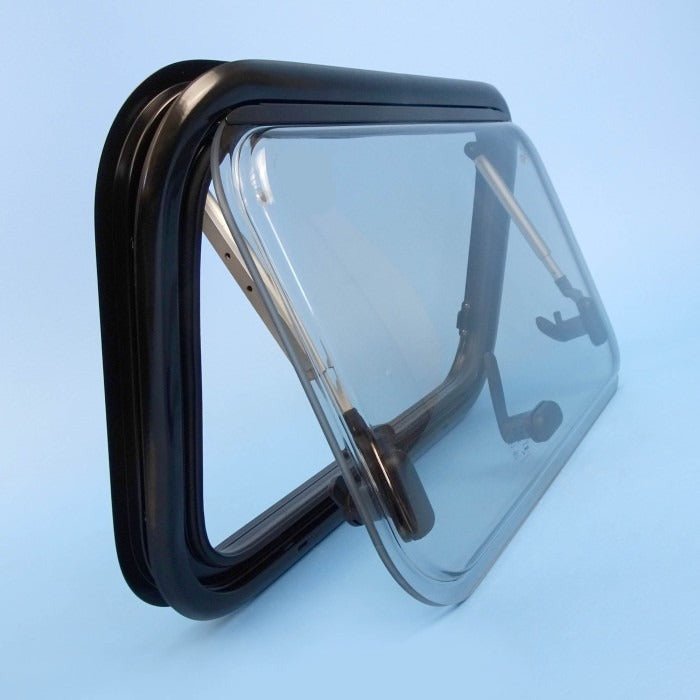

- Opening: 70° — 3 positions + secure latches
- Compatible wall thickness: 25 to 75 mm (extendable with longer screws)
- Inner counter-frame: reinforced aluminium
- Certification: ECE R43 (Europe, UK, Switzerland) — VASP/TÜV
- Average installation time: 1 hour
- Warranty: 2 years — Spare parts available for 5 years
Dimensions
- L × H product = cut-out dimensions
- Overall external dimensions: L+3cm × H+3cm
Note: only the cut-out dimensions matter to check compatibility with your vehicle. The finishing inner frame is surface-mounted on the wall — it covers the edges of the hole without requiring extra space.

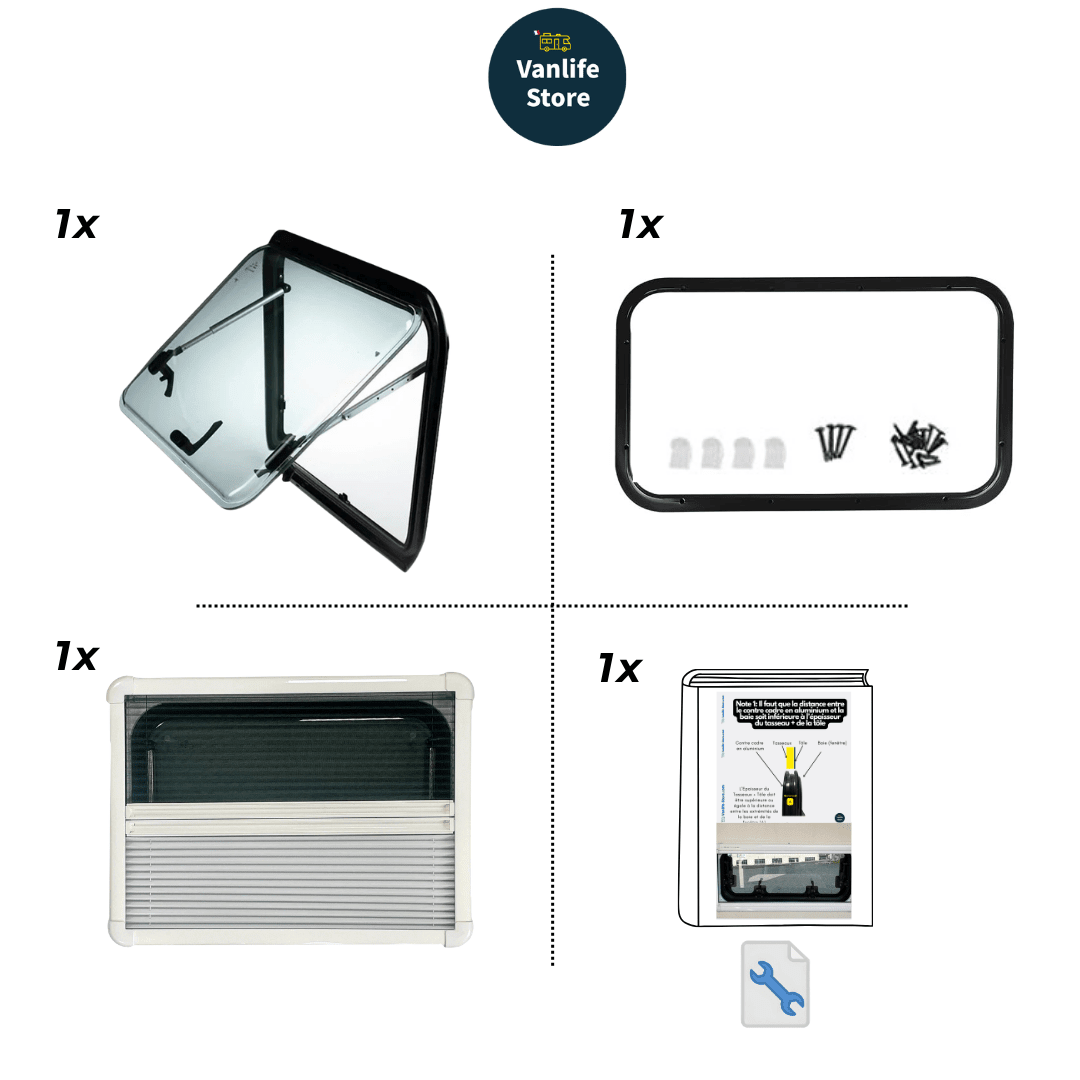

Package Contents
- 1 × LIGHT Window

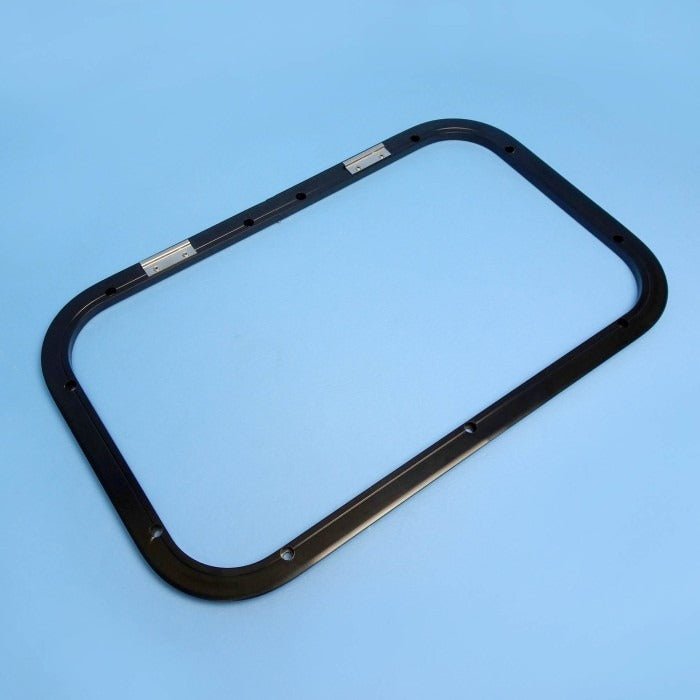

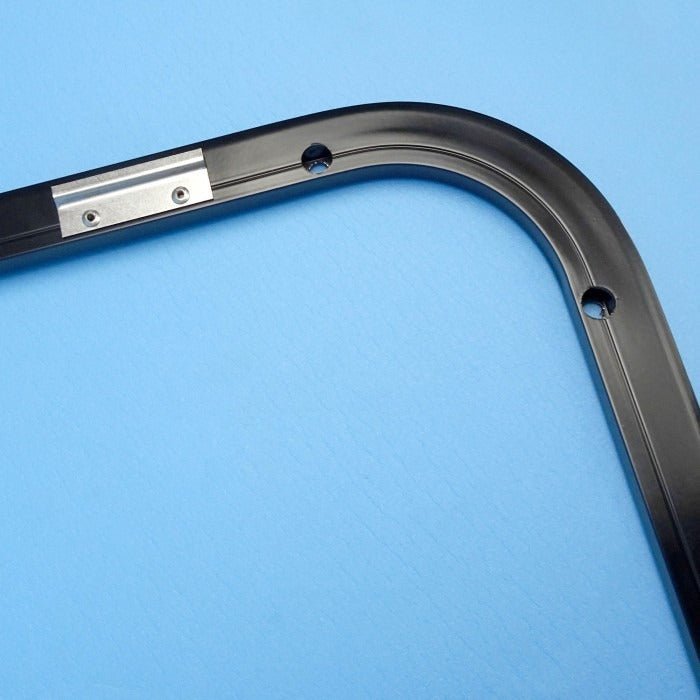

- 1 × Reinforced aluminium inner counter-frame

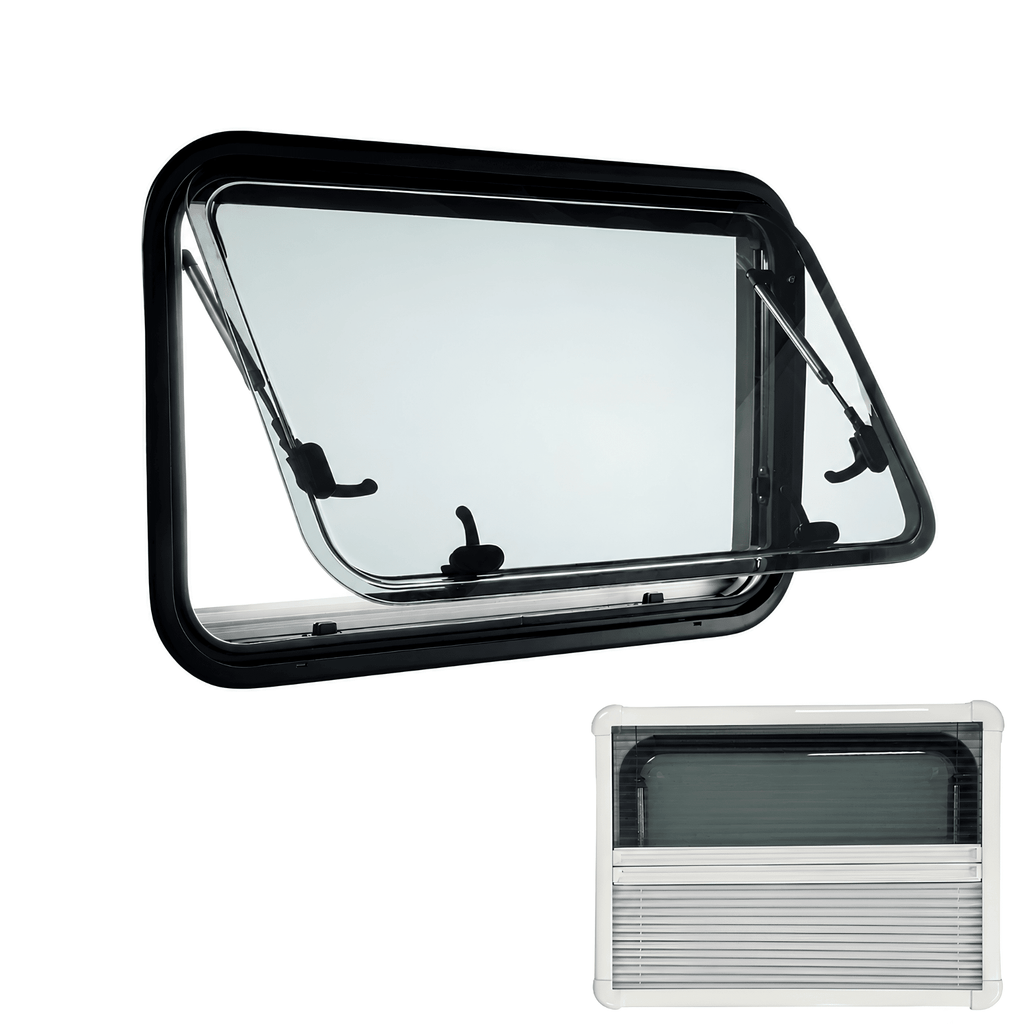

- 1 × Finishing inner frame with integrated blackout blind and fly screen
- 1 × Complete screw kit
- 1 × Step-by-step installation tutorial
Required for Installation
- 1 tube of Sikaflex 265 adhesive sealant
- Wood battens or frame at least 25 mm thick (recommended for vans)
- Jigsaw + screwdriver
Frequently Asked Questions

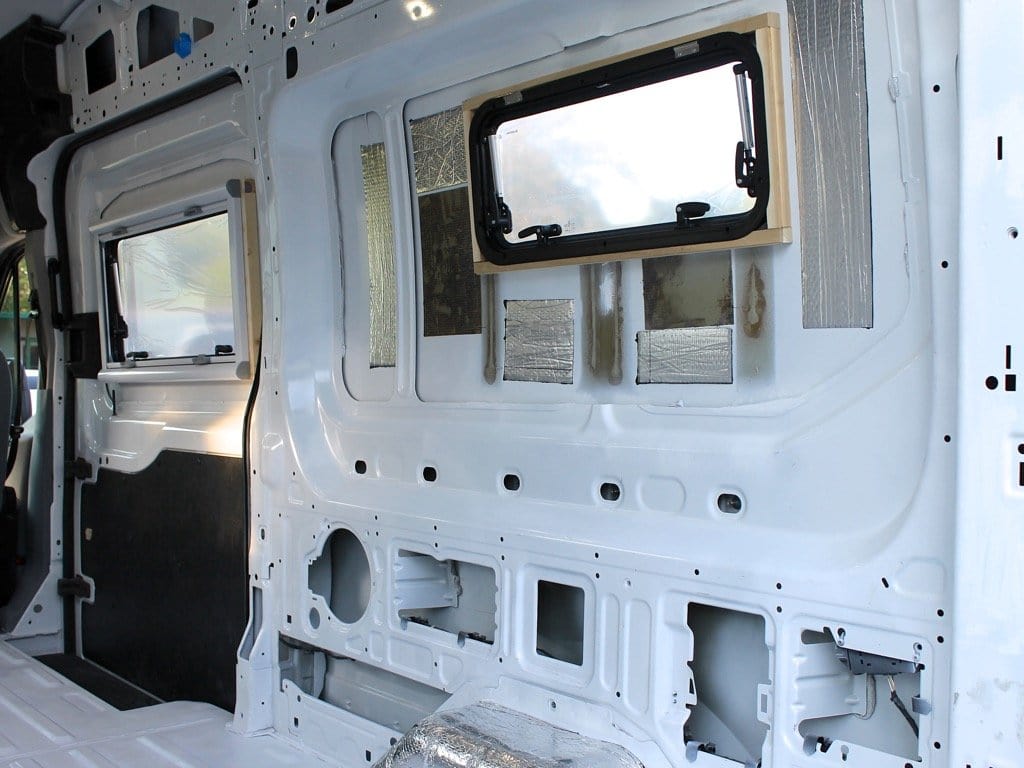

Q: Is it compatible with curved van walls?
A: Yes. The reinforced aluminium inner counter-frame fits both curved walls (vans) and flat walls (Motorhomes, caravans). The 2 mm gap on curved walls is compensated by Sikaflex.
Q: Is it certified for road use?
A: Yes, ECE R43 — installation allowed without manufacturer approval in Europe, the UK, and Switzerland. Complies with technical inspection and VASP regulations.
Q: How do I choose the right size?
A: Transfer the cut-out dimensions to the desired spot on your vehicle body. If the space is unobstructed (no reinforcements, cables, ducts), you can install the window.
