SHADE XL Window - Window for motorhomes - Trucks - Caravans

The SHADE XL Window is the SHADE Top-hung window in large formats: same dark-tinted double glazing, same rounded corners, same ECE R43 approval. Its sizes are designed for motorhomes, caravans and truck campers, not for converted vans. Delivered complete: blackout blind, fly screen and aluminium mounting frame included.

Choosing the right size

The selector shows the interior dimension, i.e. the cut-out to make in the wall.

For a replacement, measure the existing cut-out in the wall, not the visible frame of the old window. Check that no reinforcement, cable or conduit crosses the location, and that no overhead cabinet, storage compartment or curtain obstructs the interior frame. If in doubt, send us a photo and we will confirm.

The outer frame extends 3 cm along each axis (overall dimensions: W + 3 cm × H + 3 cm). The opening is 50° for windows less than 50 cm high and 70° above that, with 3 positions and secure catches.

💡 Good to know: the interior finishing frame is surface-mounted on the wall. It covers the edges of the cut-out without requiring additional space.

Benefits of the SHADE XL window

• Large formats: up to 1450 mm wide and 900 mm high, where a standard-size window leaves a blank wall. More light, ventilation that really flows through and a genuine view.
• Privacy: the dark-tinted glazing (30% light transmission) keeps the interior shielded from prying eyes without making it dark.
• Double glazing: two UV-resistant acrylic panes that insulate much better than single glazing. The interior stays cooler in summer, warmer in winter and condensation is reduced.
• A replacement without bodywork modifications: when replacing an original Motorhome or caravan window, the existing cut-out can most often be reused as it is.
• A complete window: interior frame, blackout blind, fly screen, inner frame and screws are included. No accessories to order separately.
• A solid structure: the reinforced aluminium inner frame clamps the wall from the other side and ensures even seal pressure all the way around.
• Approved and durable: ECE R43 approval, 2-year warranty and spare parts available for 5 years.

Choosing the right model

SHADE XL Window or SHADE Top-hung window?

• SHADE XL Window (this product page): large formats (8 sizes, from 550 × 600 to 1450 × 550), for Motorhomes, caravans and truck campers.
• SHADE Top-hung window: the same window in sizes suitable for panel van conversions, from L1H1 to L4H3.

Prefer clear glazing? See the LIGHT XL, the same large formats with a light tint.

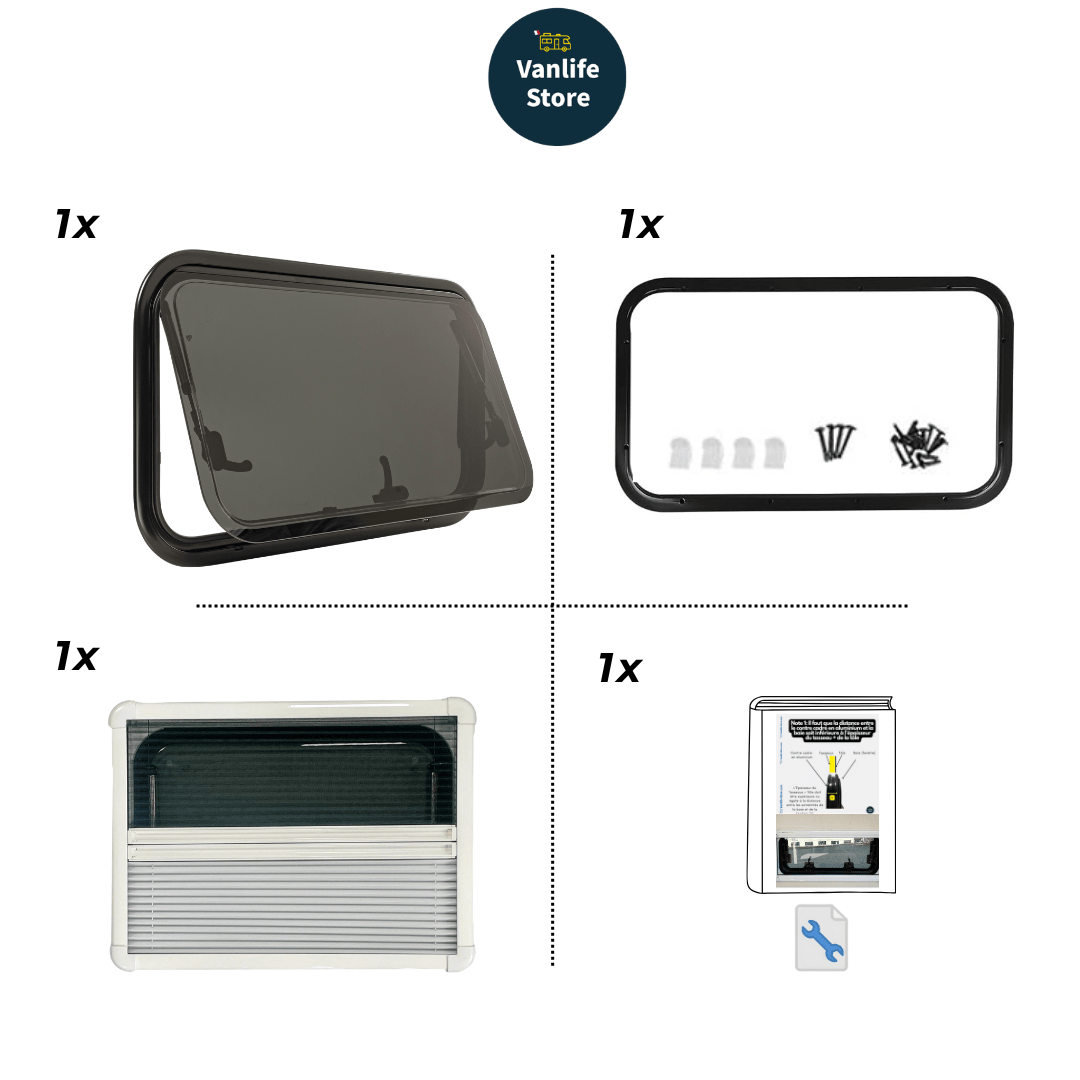

Package contents

In the box

• 1 × SHADE XL Window
• 1 × Reinforced aluminium fixing inner frame
• 1 × Interior finishing frame with integrated blackout blind and fly screen
• 1 × Complete screw set
• 1 × Step-by-step installation guide

What you will need

• 1 tube of Sikaflex 265 per window
• Jigsaw and drill driver

Allow approximately 1 hour for installation. For the large formats, plan for two people to position the window in the cut-out and hold it while fastening.

Downloads

• Top-hung window installation instructions (French PDF)
• Window selection guide (PDF, available in 6 languages)

Frequently asked questions

Q: Can I install it on a panel van conversion?
A: No, these formats exceed the size of panel van walls (approximately 1100 × 550 maximum on an L3H3 or L4H3). For a Campervan, choose the SHADE Top-hung window, available in suitable sizes.

Q: Can I replace an original Motorhome window?
A: Yes, this is the main use for the large formats. Measure the existing cut-out in the wall, then choose the corresponding size. If the cut-out is slightly smaller, it can be enlarged with a jigsaw; if it is larger, choose the next size up.

Q: Is it approved for road use?
A: Yes, ECE R43: installation is authorised without manufacturer approval in Europe, the United Kingdom and Switzerland. Compliant with roadworthiness testing.

Unsure about the size? Contact our technical team; we will reply within 24 hours maximum.
