Very clear glazing for a bright interior. ECE R43-approved UV-resistant Double acrylic glazing, light tint — the ideal solution when you want to maximise natural light in your vehicle.
Everything is included for a clean installation. Inner frame integrating a blackout blind and fly screen, screw kit, and installation guide included.
Reversible opening direction. The Window can be installed in reverse to adapt the opening side to your layout (see technical note below).
Technical information
- Type: Sliding window
- Glazing: UV-resistant double acrylic glazing with light tint (90% light transmission)
- Compatible wall thickness: 25 to 75 mm (ideal at 26 mm; above 41 mm, a wooden inner frame must be made)
- Approval: ECE R43
- Warranty: 2 years
- Spare parts available: 5 years
Dimensions
- Model dimensions (L × H) = for example 700 × 300 mm = cut-out dimensions
- Overall external dimensions: L+45mm × H+30mm (745 × 330 mm)
💡 Good to know: only the cut-out dimension (700 × 300 mm) matters when checking compatibility with your vehicle. The inner frame is fitted as a surface-mounted frame on the wall.
Contents of the kit

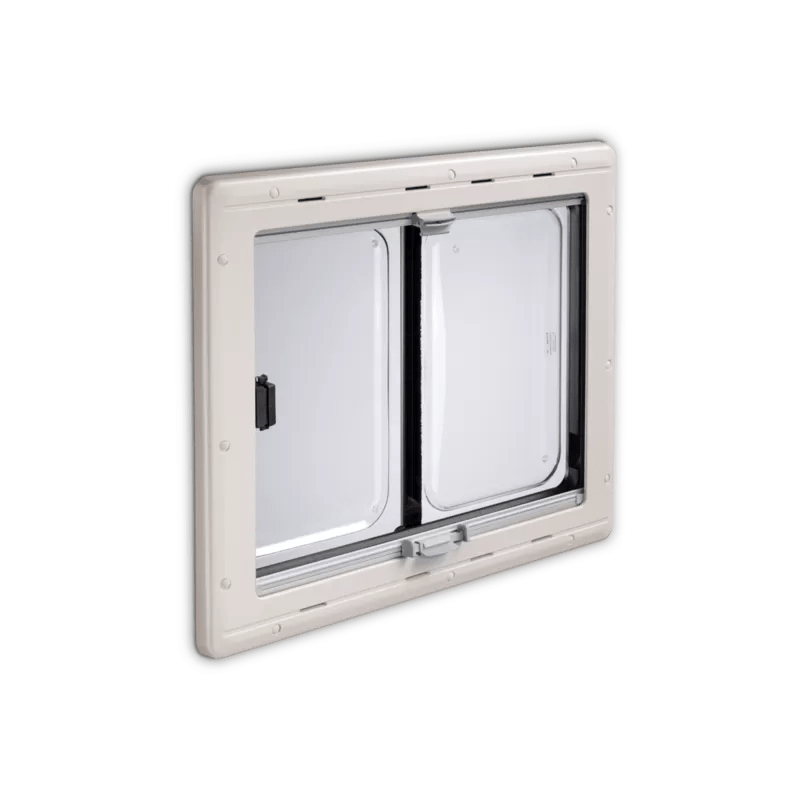

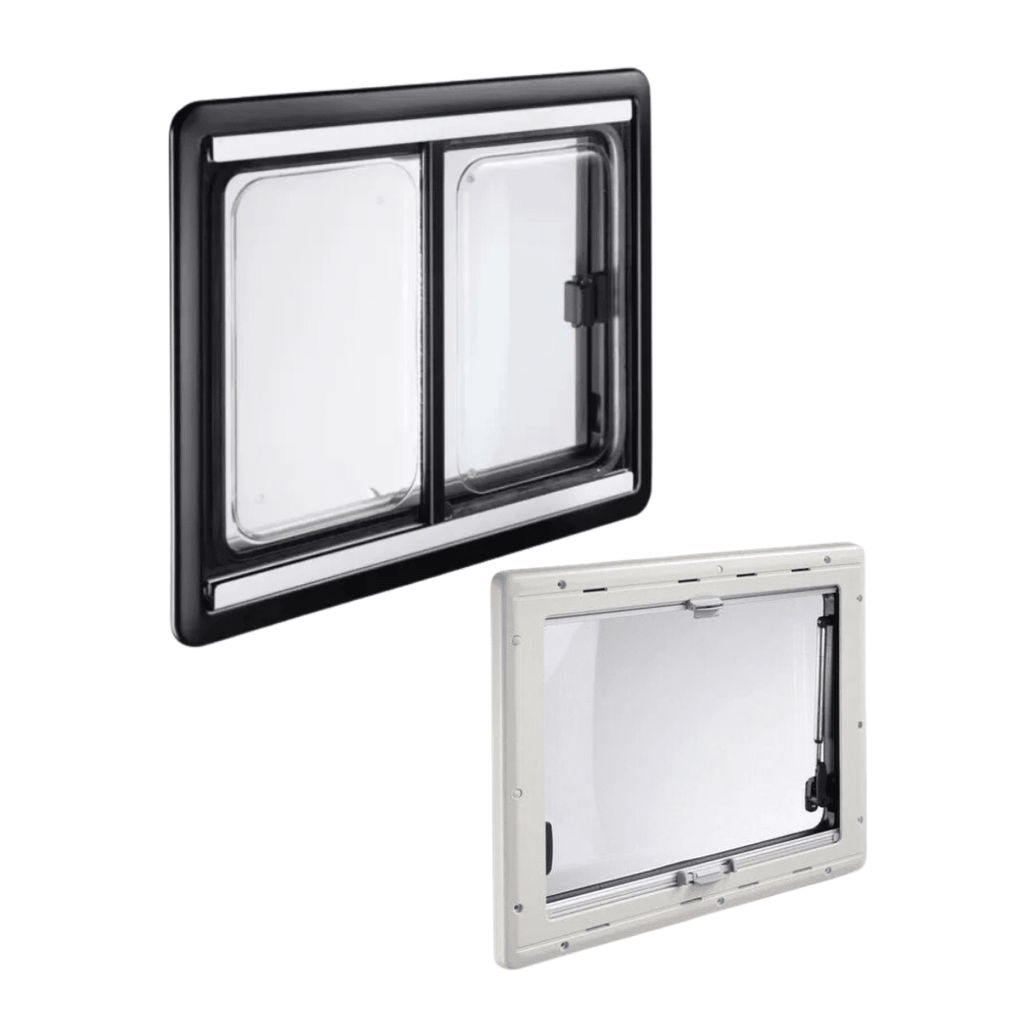

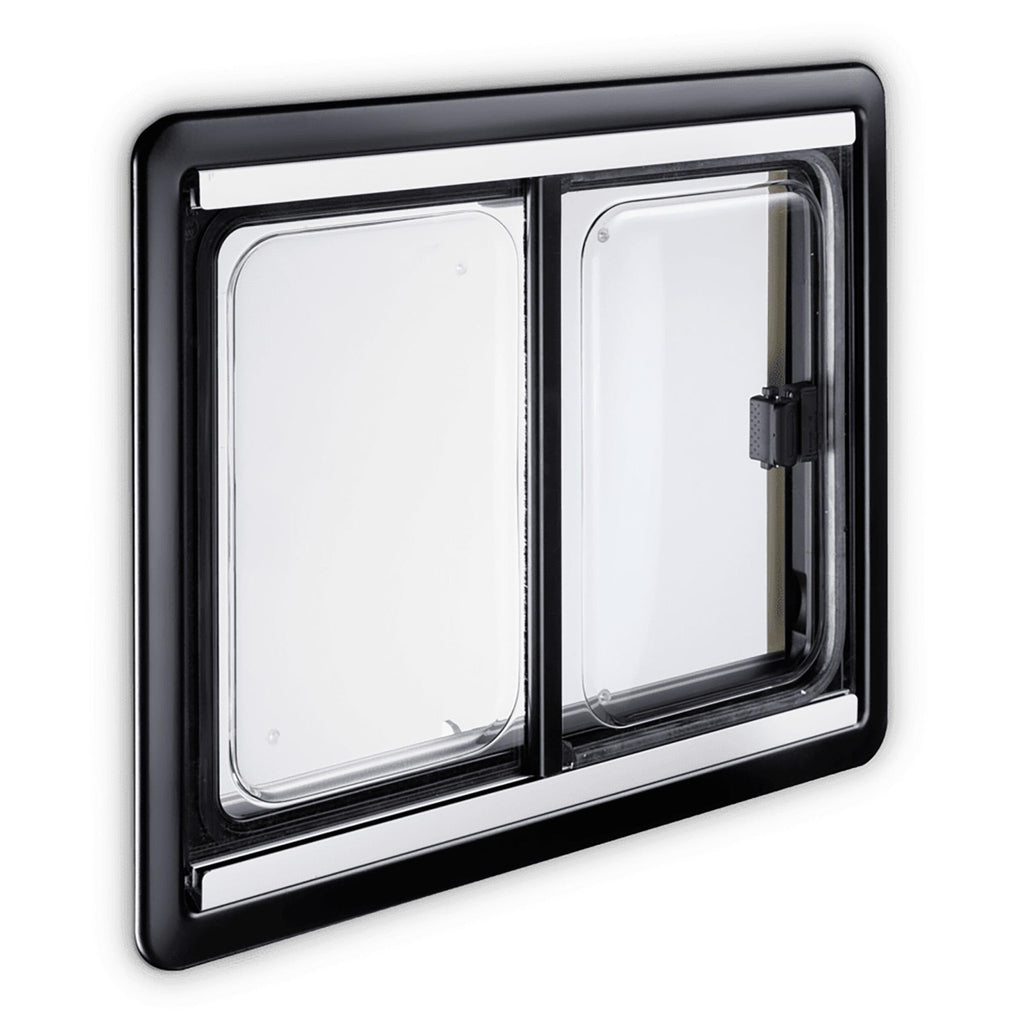

- 1 × SQUARE SLIDE LIGHT Sliding window

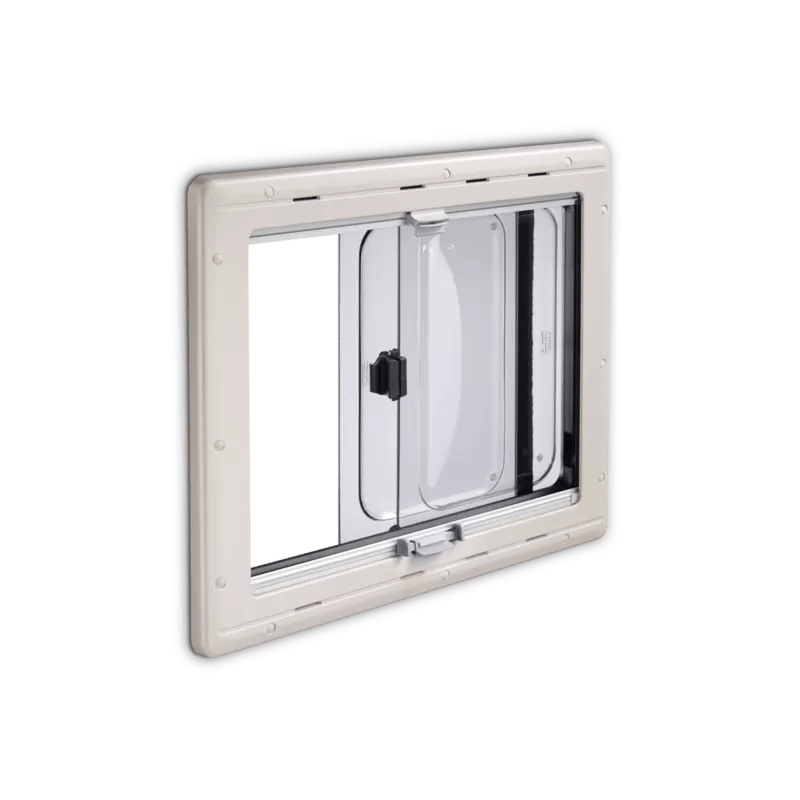

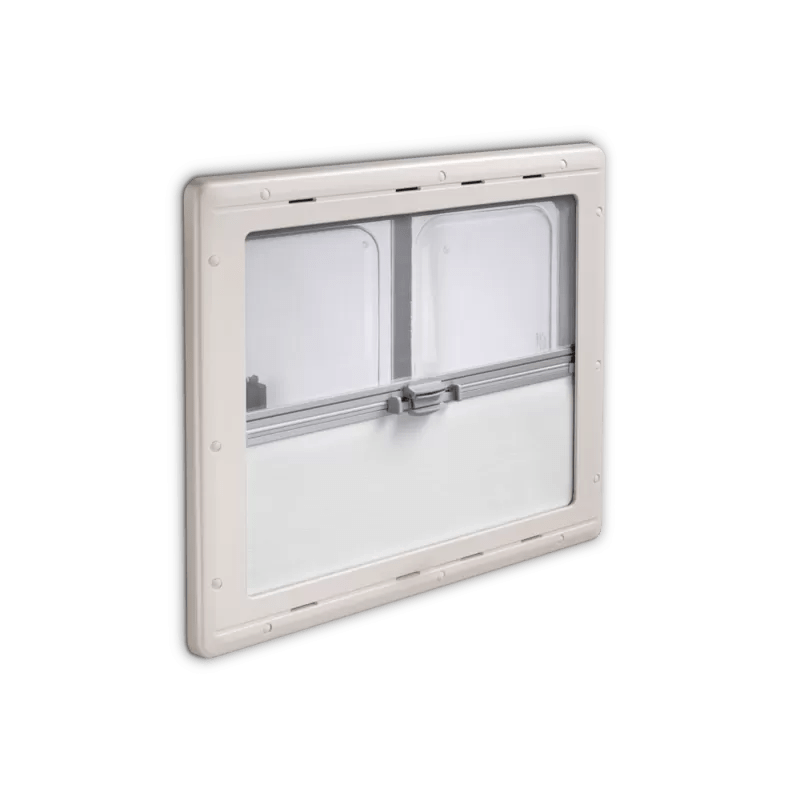

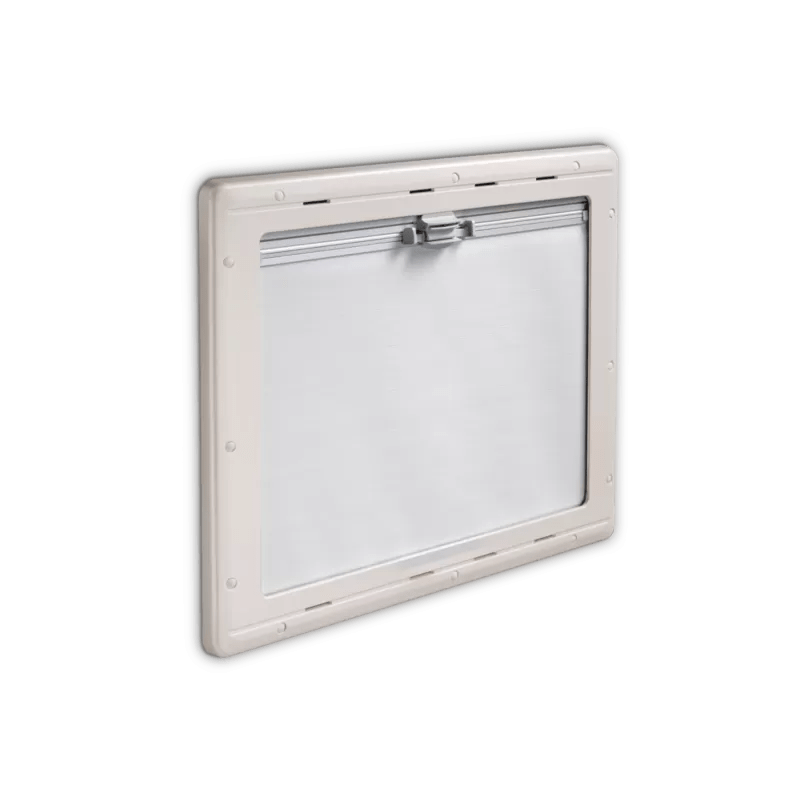

- 1 × Inner frame integrating a blackout blind and fly screen
- 1 × Screw kit
- 1 × Installation guide
Required for installation:
- 1 tube of Sikaflex 265 (tube only or complete pack)
- Wooden frame (required if the wall is > 41 mm thick to bring it within the compatible thickness range)
- Jigsaw + screwdriver
Why choose the SQUARE SLIDE LIGHT?
-
Trusted brand: proven, durable construction recognised by professional Motorhome converters.
-
Very clear glazing: 90% light transmission to maximise natural light in your vehicle.
-
Reversible opening direction: can be installed in reverse to suit your layout.
-
Complete product: supplied with an inner frame integrating a blackout blind and fly screen, plus screws.
-
Spare parts availability: 5 years.
