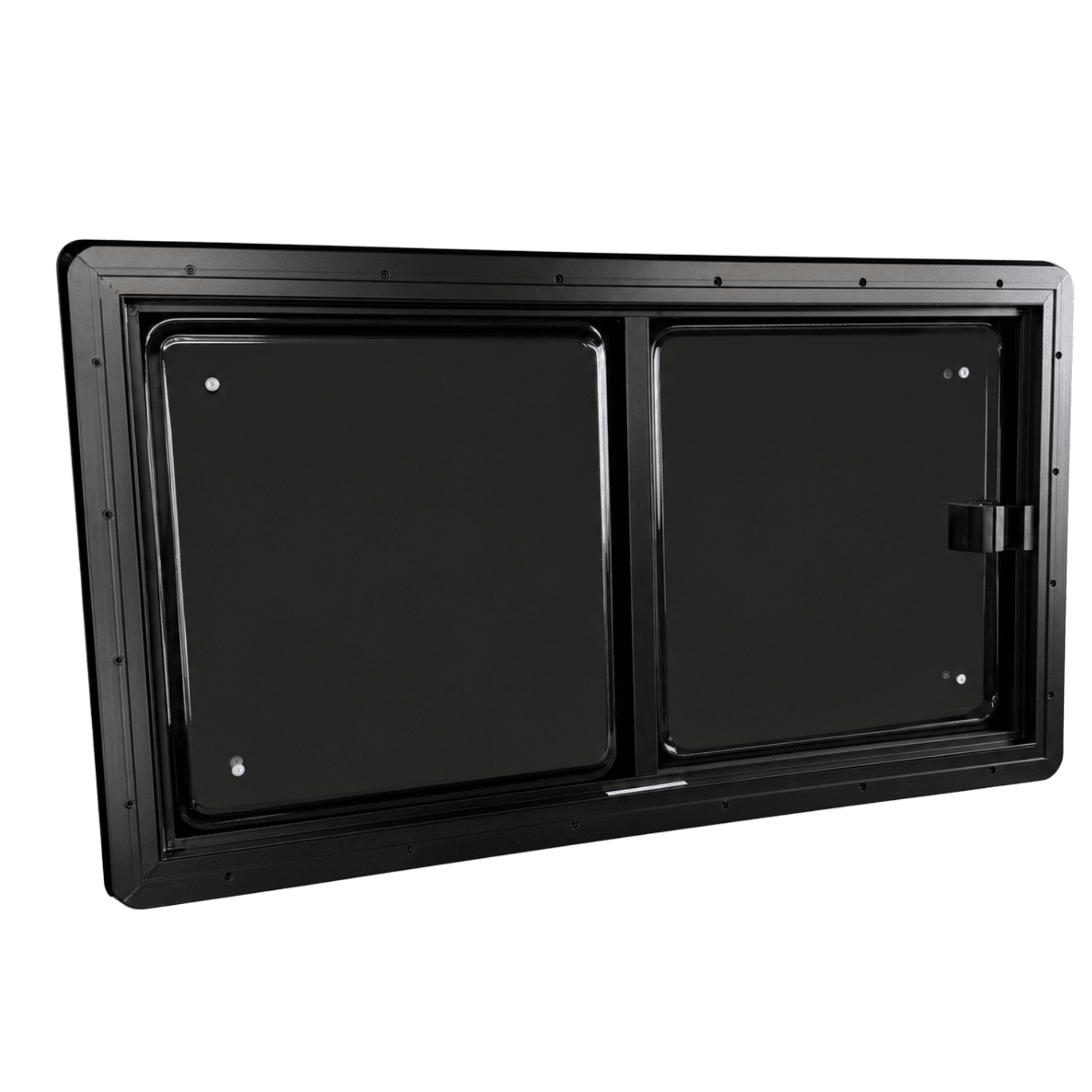

SQUARE SLIDE Sliding window - with window blind and mosquito net

The SQUARE SLIDE sliding window has square corners and dark-tinted double glazing, an aluminium frame and a central lock, and is ECE R43 approved. It fits walls from 30 to 55 mm thick. Delivered complete: blackout blind, fly screen and aluminium mounting frame included.

Choosing the right size

The selector shows the interior dimension, i.e. the cut-out to make in the wall.

Maximum recommended cut-out dimensions by van (in mm)

* 450 mm on Master, Movano, NV400; 520 mm on Ducato, Jumper, Boxer, Sprinter, Crafter.

These values correspond to what the vehicle allows: SQUARE SLIDE is available up to 1200 × 500.

Reinforcements vary depending on the year and model: mark out the cut-out on your wall and check that no reinforcement, cable or conduit passes through it. If in doubt, send us a photo and we will confirm.

The outer frame extends 3 cm along each axis (overall dimensions: W + 3 cm × H + 3 cm).

💡 Good to know: the interior finishing frame is surface-mounted on the wall. It covers the edges of the cut-out without requiring any additional space.

Benefits of the SQUARE SLIDE sliding window

• The look of the square corners: clean, straight lines that complement the flat sides of vans and modern interiors.
• Privacy: the dark-tinted glazing (30% light transmission) keeps the interior shielded from prying eyes without making it dark.

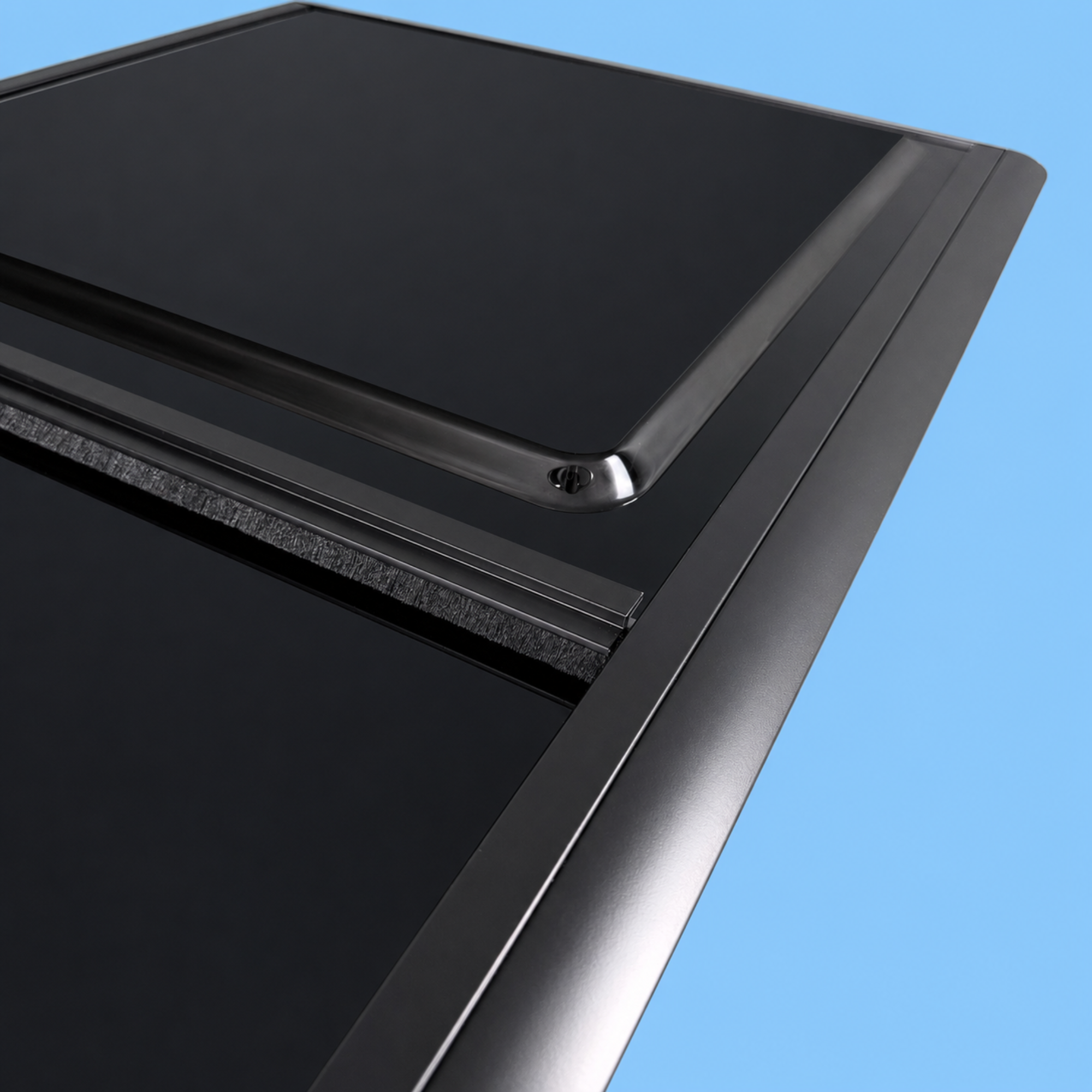

• Double glazing: two UV-resistant acrylic panels that provide much better insulation than single glazing. The interior stays cooler in summer, warmer in winter, and condensation is reduced.

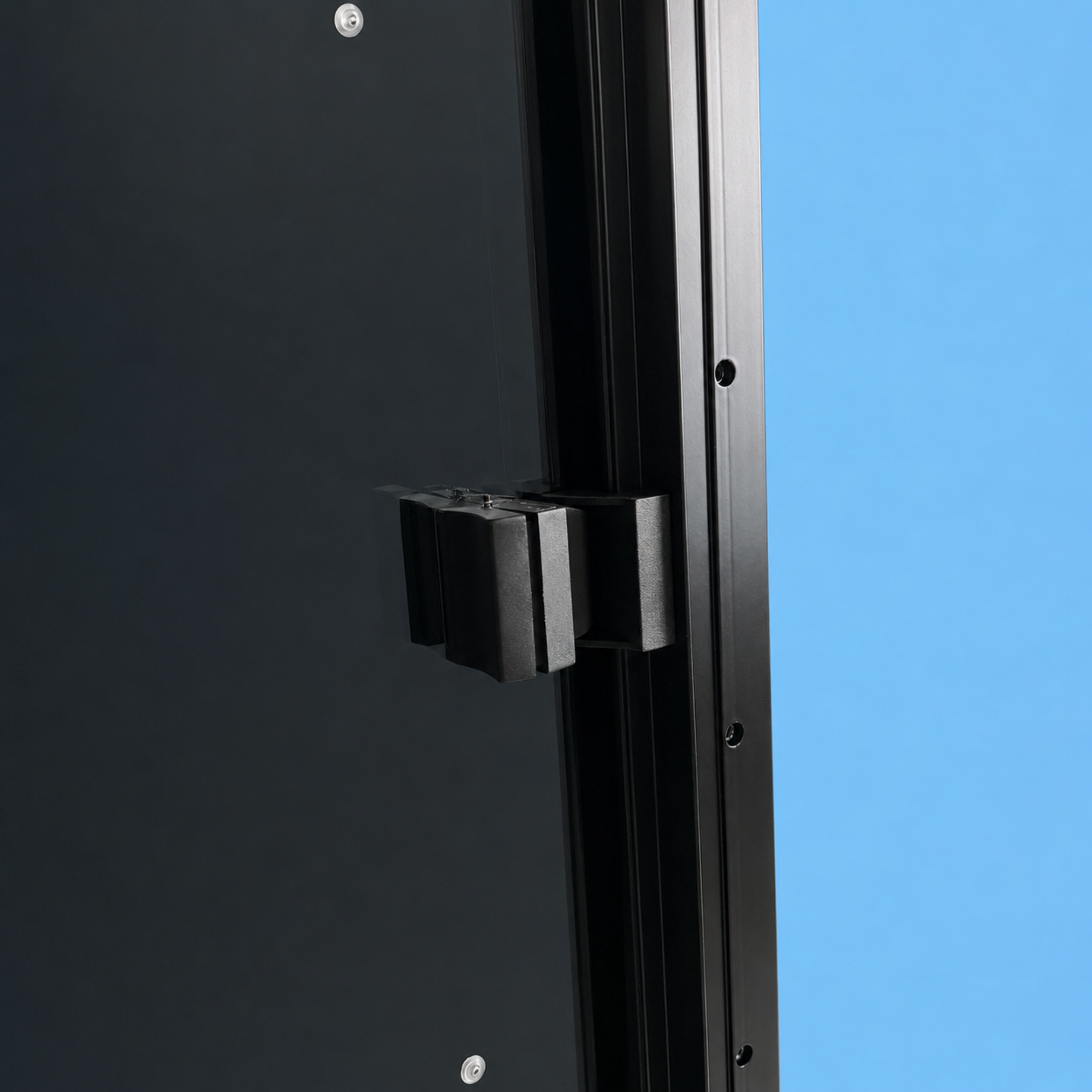

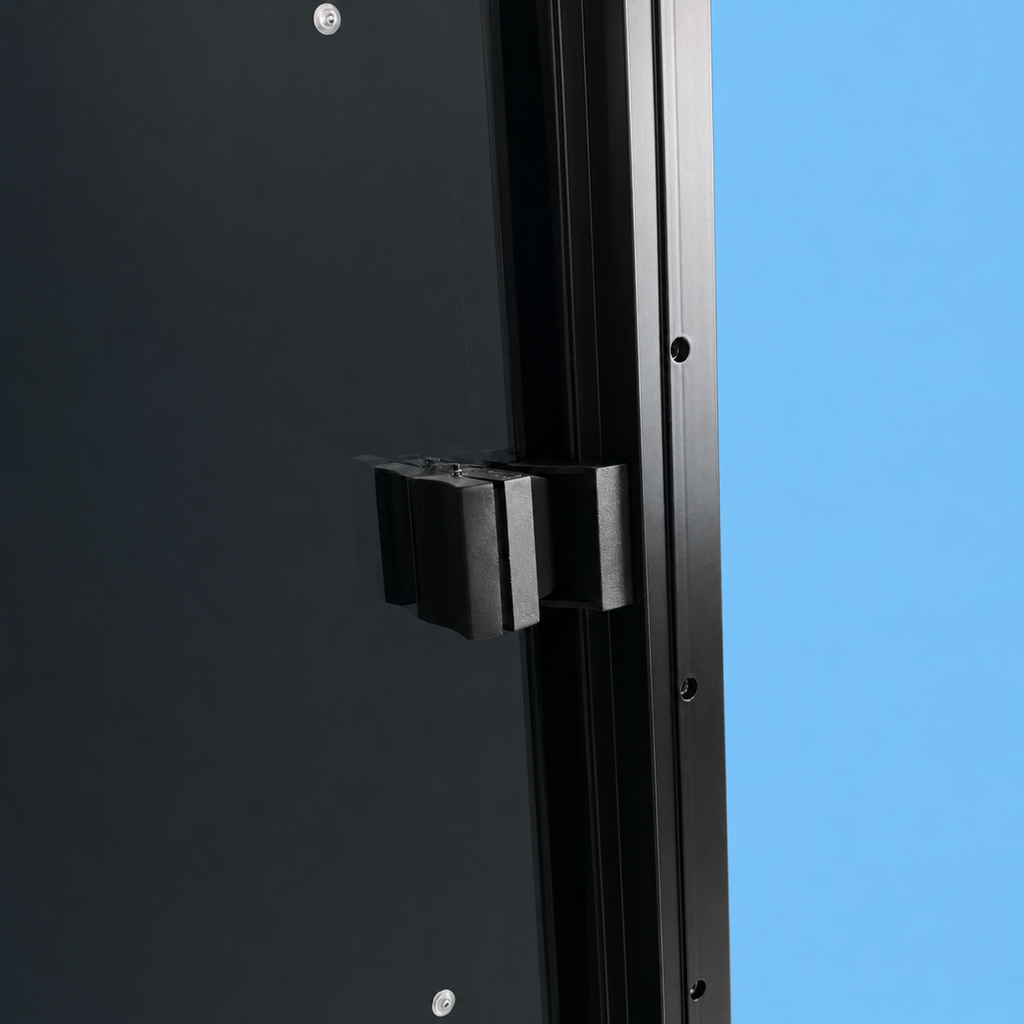

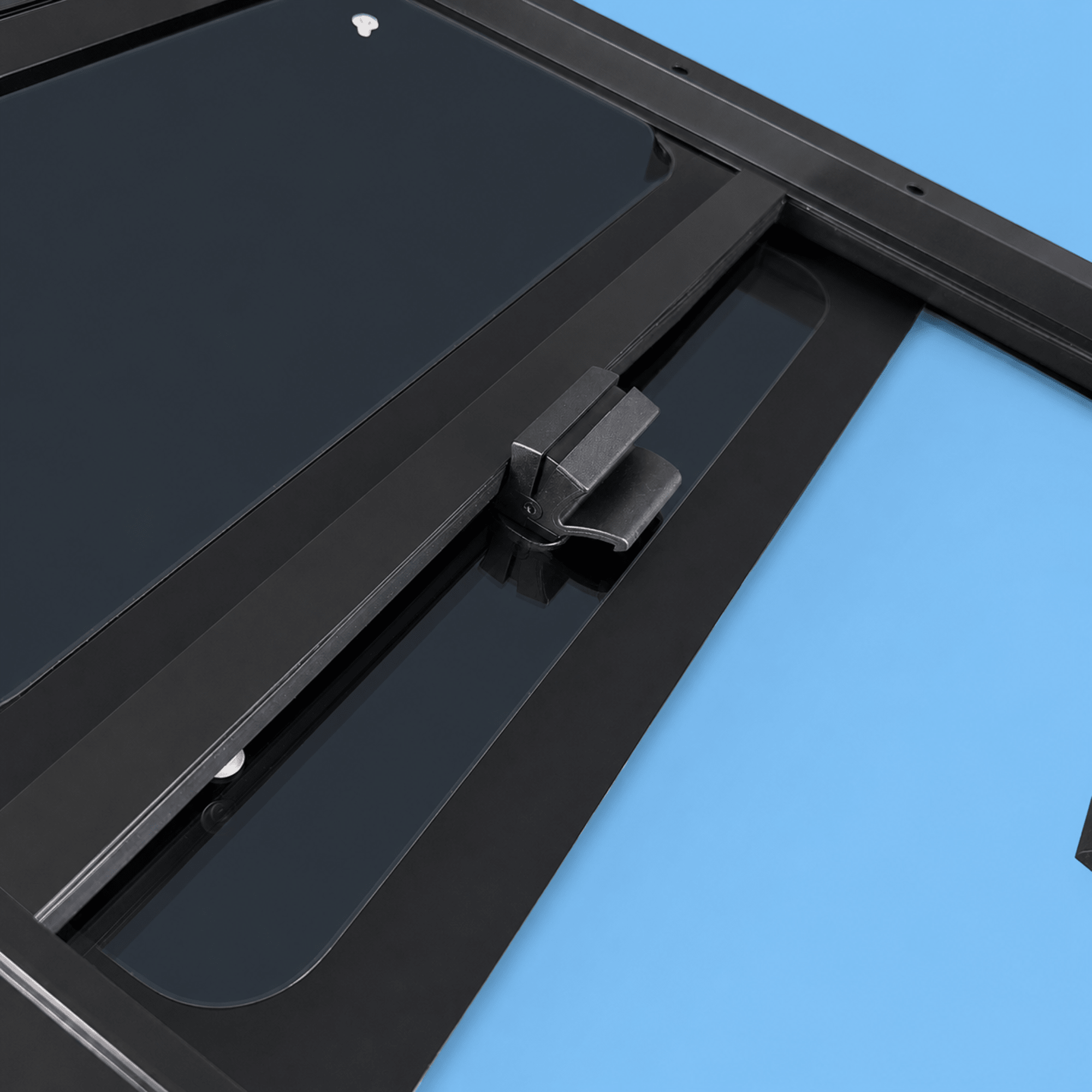

• Ventilation without taking up space: the glazing slides within the frame instead of opening outwards, and locks securely with the central lock.
• A complete window: blackout blind, fly screen, inner frame and fixings are included. No accessories to order separately.
• A sturdy structure: a reinforced aluminium inner frame braces it against the wall, whether curved (van) or flat (Motorhome, caravan).
• Easy installation: the step-by-step installation tutorial guides you from marking out the cut-out to final tightening. Allow around 1 hour.
• Approved and durable: ECE R43 approval, 2-year warranty and spare parts available for 5 years.

Choose the right model

Prefer rounded corners? See SLIDE (dark tint) and SLIDE LIGHT (double glazing, light tint).

Package contents

In the box

• 1 × SQUARE SLIDE window
• 1 × Reinforced aluminium inner frame
• 1 × Interior finishing frame with integrated blackout blind and fly screen
• 1 × Complete fixing kit
• 1 × Step-by-step installation tutorial

What you will need

• 1 tube of Sikaflex 265 per window
• Wooden battens or frame at least 25 mm thick (recommended on panel vans)
• Jigsaw and drill/driver

Allow around 1 hour for installation. Have two people available to position the window in the cut-out and hold it in place while screwing.

Downloads

• Installation instructions (French PDF)
• Window selection guide (PDF, available in 6 languages)

Frequently asked questions

Q: Is it compatible with curved panel van walls?
A: Yes. The reinforced aluminium inner frame adapts equally well to curved walls (vans) and flat walls (Motorhomes, caravans). Any slight gap on a curved wall is filled with Sikaflex.

Q: Is it approved for road use?
A: Yes, ECE R43: installation is authorised without the manufacturer's approval in Europe, the United Kingdom and Switzerland. It complies with roadworthiness inspections and VASP requirements.

Q: Can I replace an existing window?
A: Yes, if the existing cut-out matches one of our dimensions. Measure the cut-out in the wall, not the visible frame of the old window. Pay attention to the corners: SQUARE SLIDE has square corners. For a cut-out with rounded corners, choose SLIDE.

Unsure about the size? Contact our technical team; we will reply within 24 hours maximum.
