Technical Specifications

• Glazing: dark tinted UV-resistant acrylic double glazing (30% light transmission) with an external aluminum frame
• Opening angle: 70° — 3 positions + secure latches
• Compatible wall thickness: 24 to 74 mm
  • Extendable using a longer fixing screw
• Inner fixing frame: reinforced aluminum
• Certification: CE 43-R (Europe, UK, Switzerland)
• Average installation time: 1 hour
• Warranty: 2 years
• Spare parts availability: 5 years

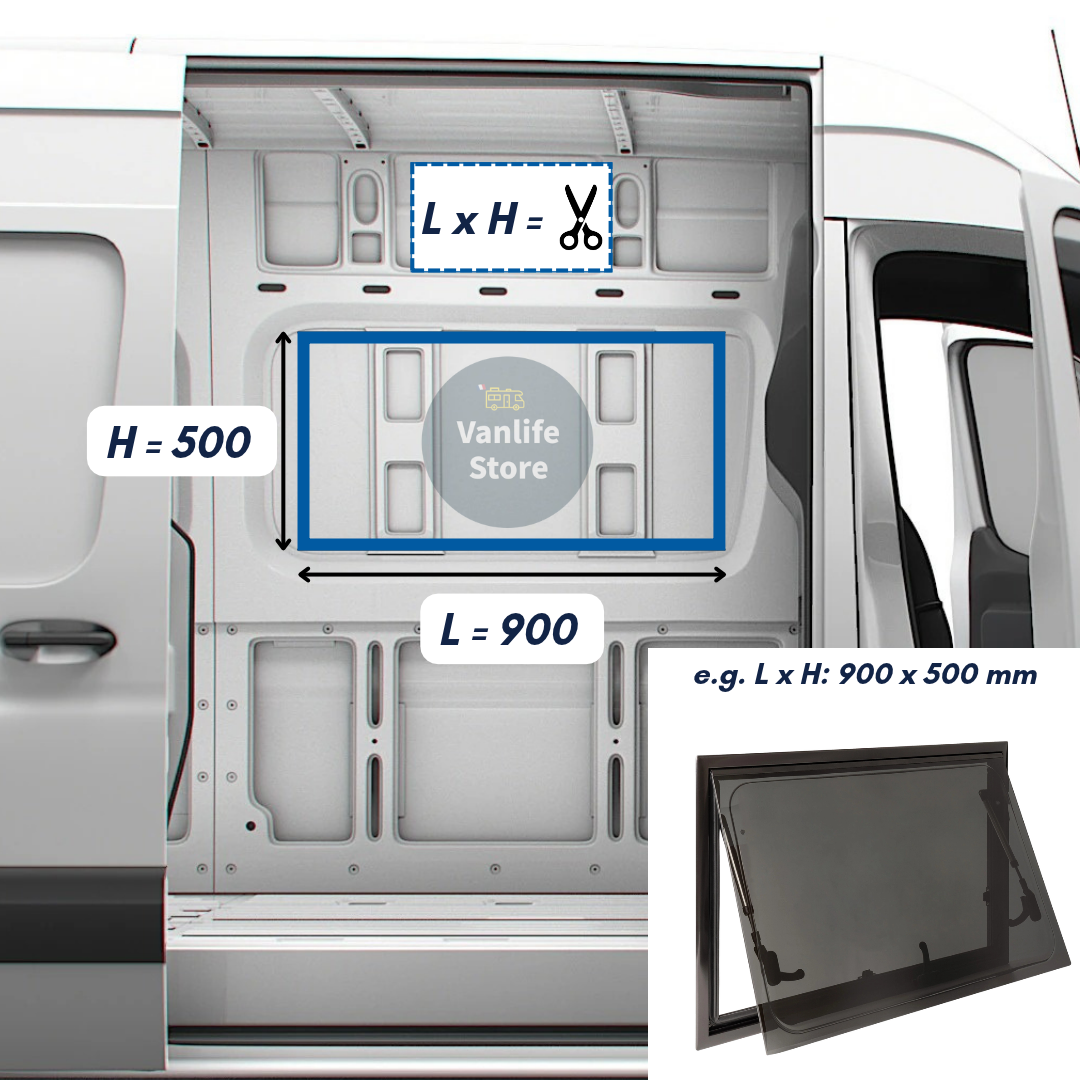

Dimensions

• L × H product = cut-out dimensions
• Overall external dimensions: L+3cm × H+3cm
• Inner finishing frame dimensions: L+8cm × H+8cm

💡 Good to know: only the cut-out dimension matters to check compatibility with your vehicle. The inner finishing frame is surface-mounted (raised) on the wall — it aesthetically covers the edges of the hole without requiring extra space inside the wall.

Package Contents

• 1 × SQUARE Push window
• 1 × Reinforced aluminum inner fixing frame
• 1 × Inner finishing frame (blackout blind + fly screen integrated)
• 1 × Screws
• 1 × Step-by-step installation tutorial

Required for installation:

• 1 tube of Sikaflex 265 (tube only or complete pack)
• Wooden battens or frame (recommended for vans)
• Jigsaw + screwdriver

📄 CE 43-R Certification — Installation tutorial: FR · EN · ES · DE · IT · NL

⁉️ Frequently Asked Questions

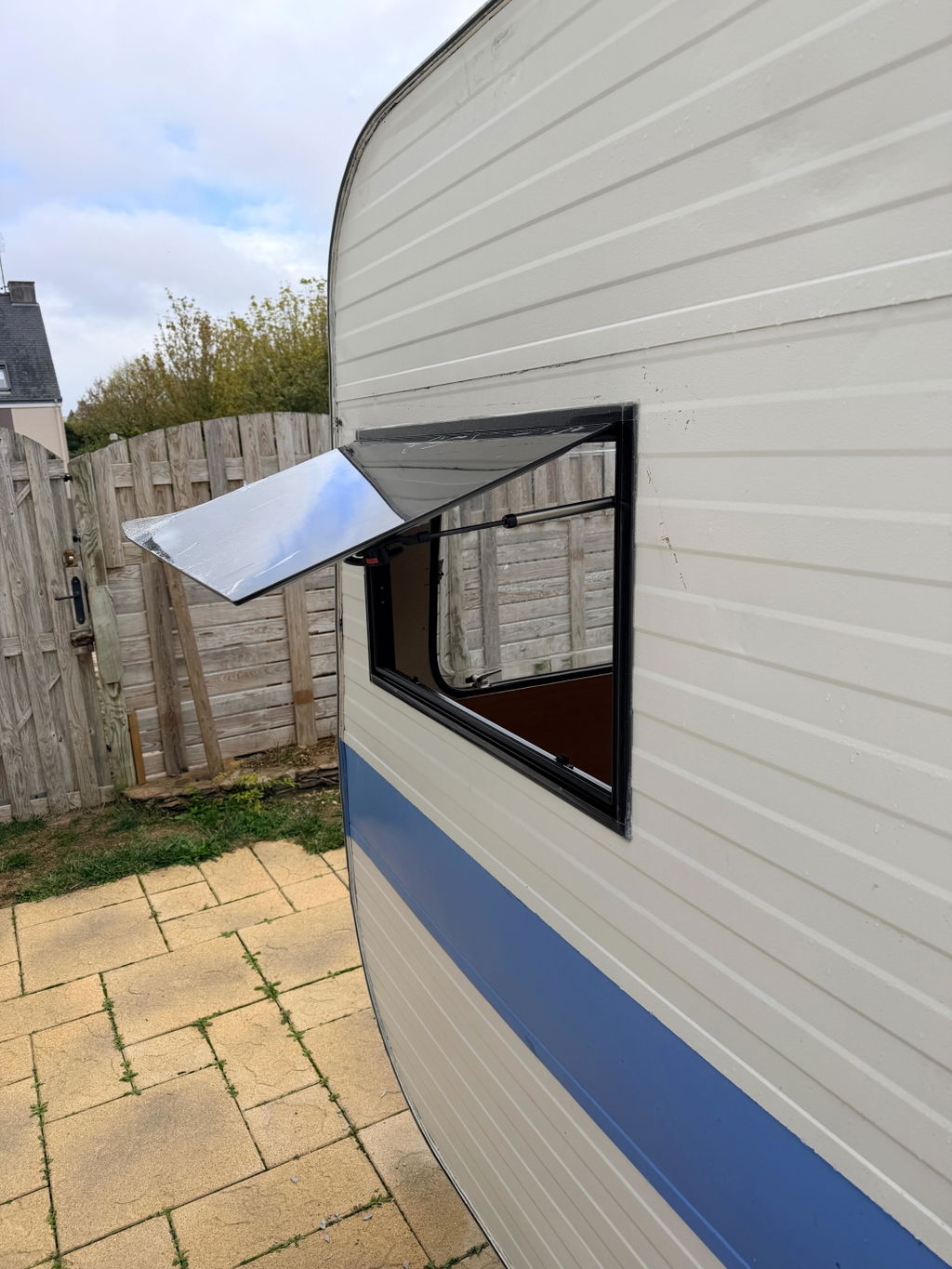

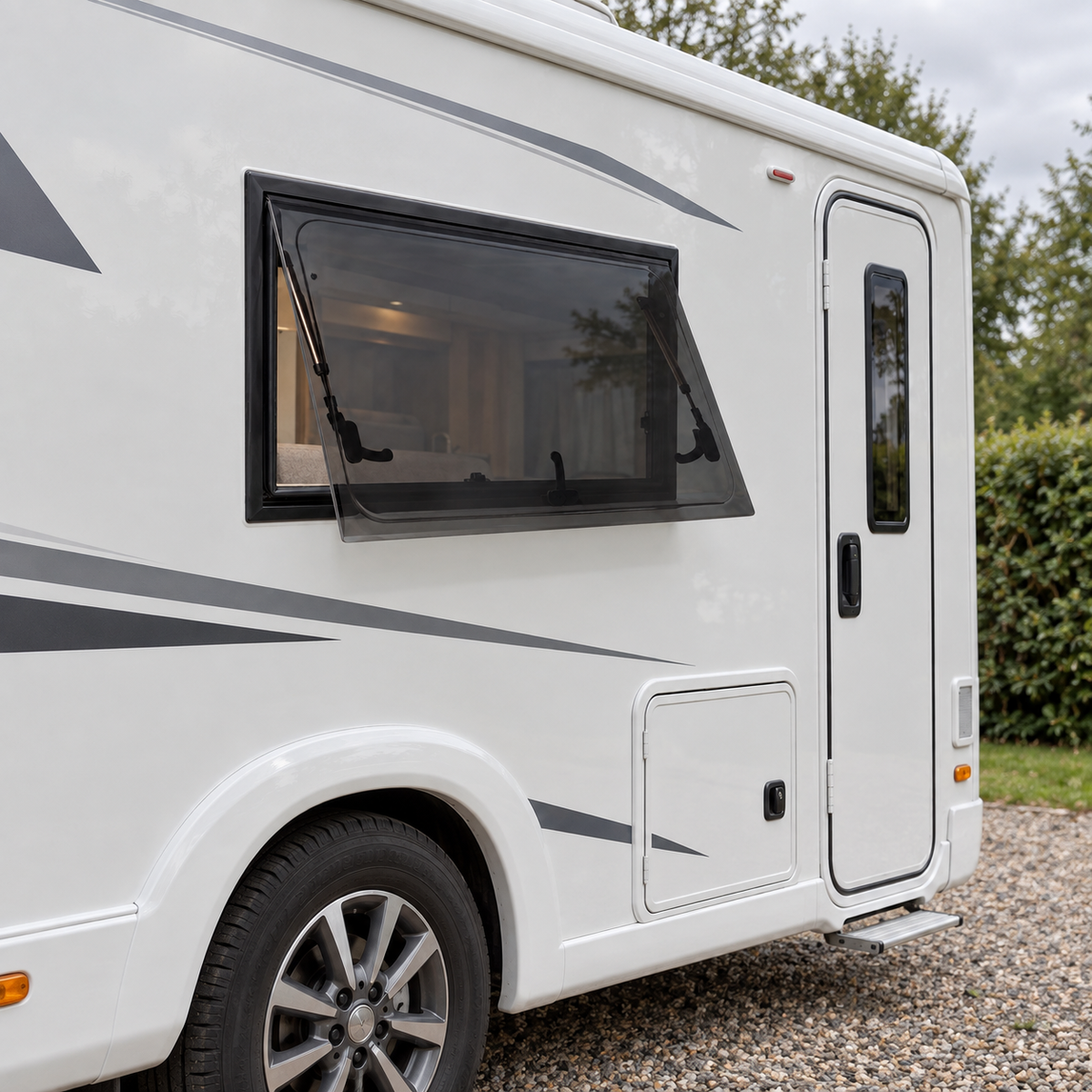

Q: Compatible with curved walls? A: Yes. The reinforced aluminum inner fixing frame fits curved walls (vans) as well as flat walls (Motorhomes, caravans).

Q: Is it certified? A: Yes, CE 43-R — installation allowed without manufacturer approval throughout Europe, the UK, and Switzerland.

Q: What is the difference between the SHADE, SQUARE, and LIGHT windows? A: Purely aesthetic: rounded frame corners (SHADE / LIGHT) or square corners (SQUARE), and glazing tint.

Q: I am replacing an old window, but no SQUARE model matches the exact dimensions — what should I do? A: This is very common: finding dimensions exactly matching an old Motorhome model is often difficult. The simple solution: choose a SQUARE model whose width AND height are at least equal to your current window. You will enlarge the existing cut-out to fit the new model — the method is explained step-by-step in the provided installation tutorial.
