Technical Specifications

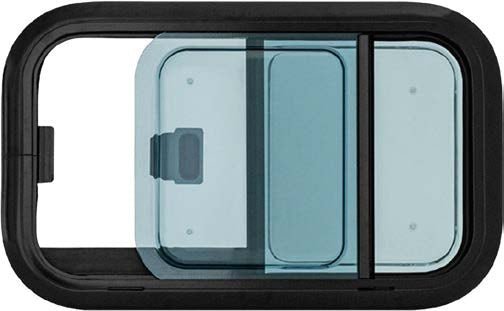

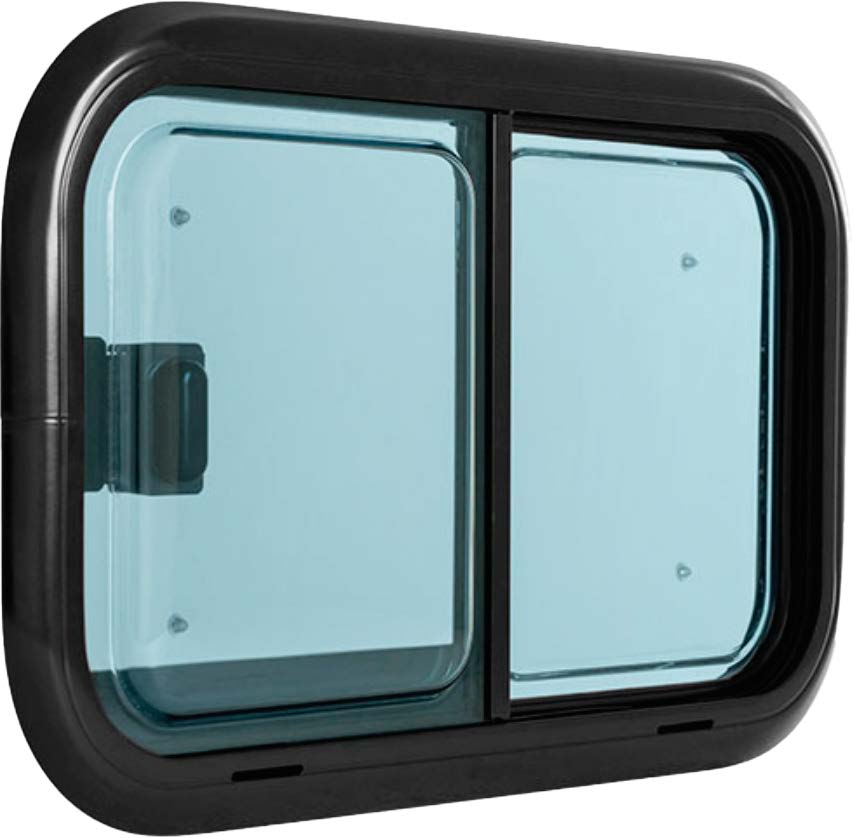

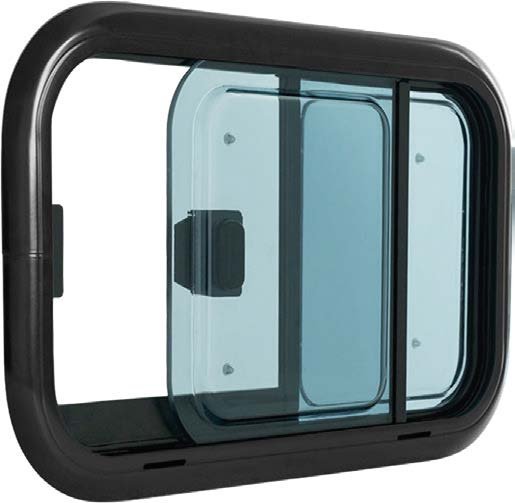

- Type: sliding window with central lock
- Glazing: double glazing acrylic UV-resistant tinted light grey (70% light transmission)
- Outer frame: black aluminium, glazing with rounded corners
- Opening: sliding with central lock
- Compatible wall thickness: 25 to 75 mm (extendable with longer screws)
- Inner counter-frame: reinforced aluminium
- Certification: ECE R43 (Europe, UK, Switzerland) — VASP/TÜV
- Average installation time: 1 hour
- Warranty: 2 years — Spare parts available for 5 years
Dimensions
- L × H product = cut-out dimensions
- Overall external dimensions: L+3cm × H+3cm
Note: only the cut-out dimension matters to check compatibility with your vehicle. The finishing inner frame is surface-mounted on the wall.

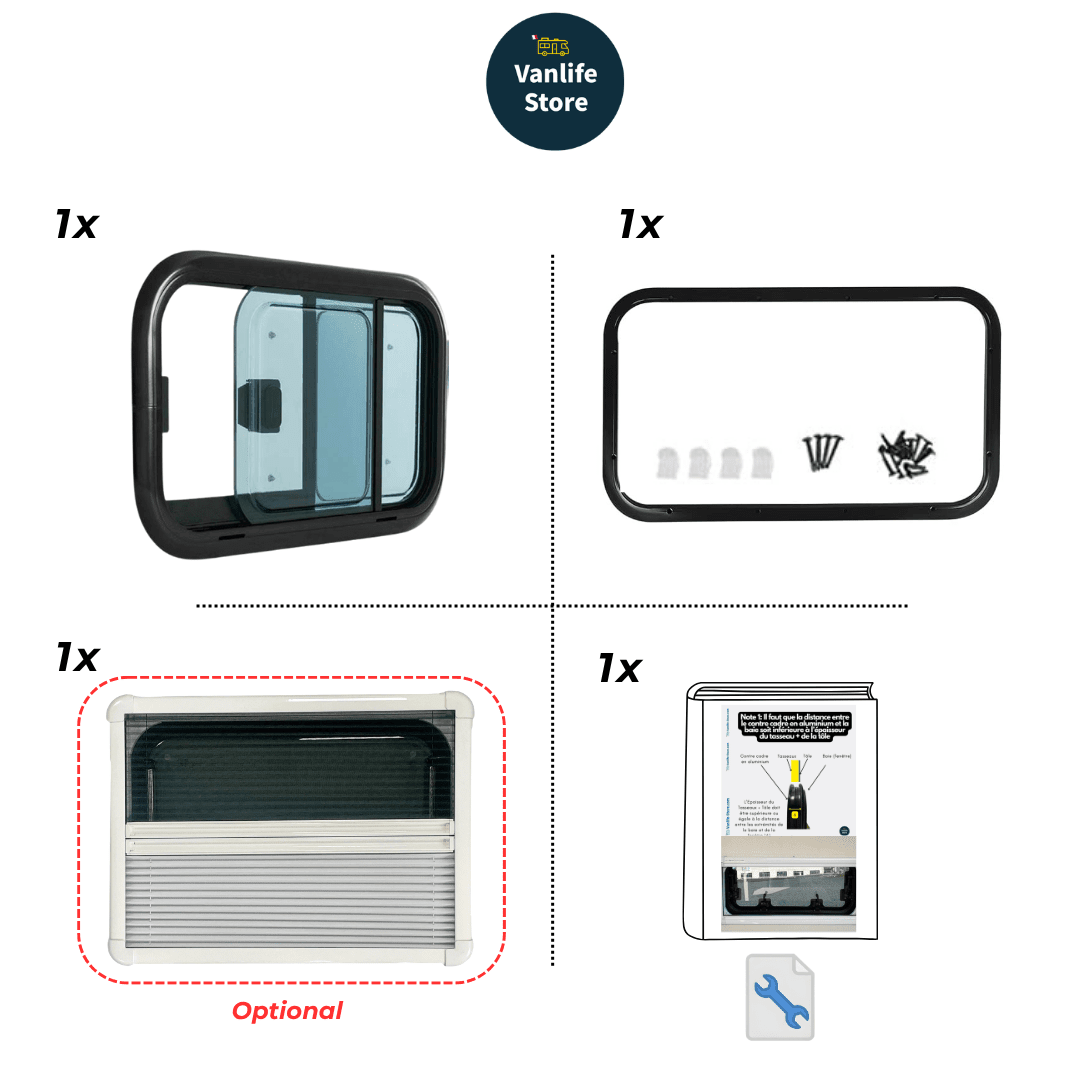

Package Contents
- 1 × Baie SLIDE LIGHT
- 1 × Reinforced aluminium inner counter-frame

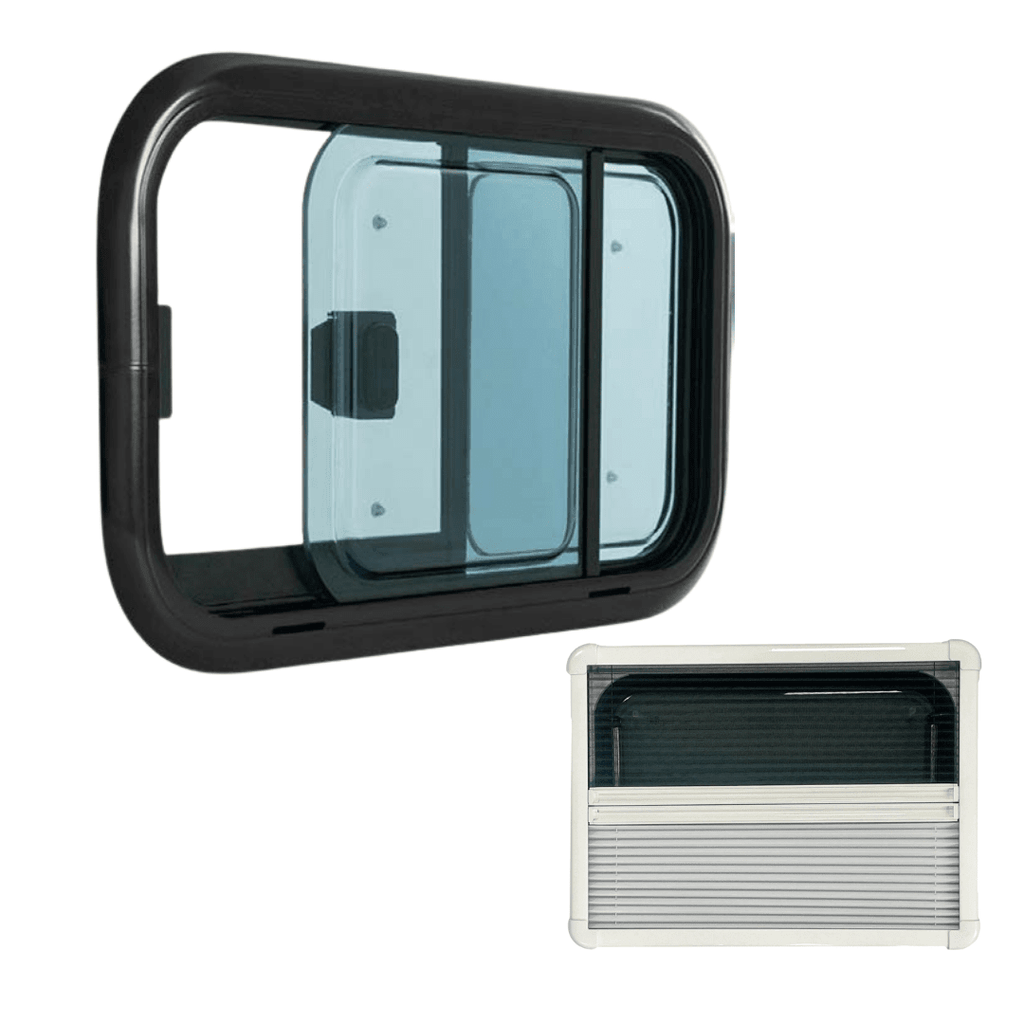

- 1 × Inner finishing frame with integrated blackout blind and fly screen
- 1 × Complete set of screws
- 1 × Step-by-step installation tutorial
Required for Installation
- 1 tube of Sikaflex 265 adhesive sealant
- Wooden battens or frame at least 25 mm thick (recommended for vans)
- Jigsaw + screwdriver
Frequently Asked Questions
Q: Is it compatible with curved van walls?
A: Yes. The reinforced aluminium inner counter-frame fits both curved walls (vans) and flat walls (Motorhomes, caravans). The 2 mm gap on curved walls is compensated by Sikaflex.
Q: Is it certified for road use?
A: Yes, ECE R43 — installation allowed without manufacturer approval in Europe, the UK, and Switzerland. Complies with technical inspection and VASP.
Q: How to choose the right size?
A: Transfer the cut-out dimensions to the desired location on your bodywork. If the space is unobstructed (no reinforcements, cables, ducts), you can install the window.
