Product Description

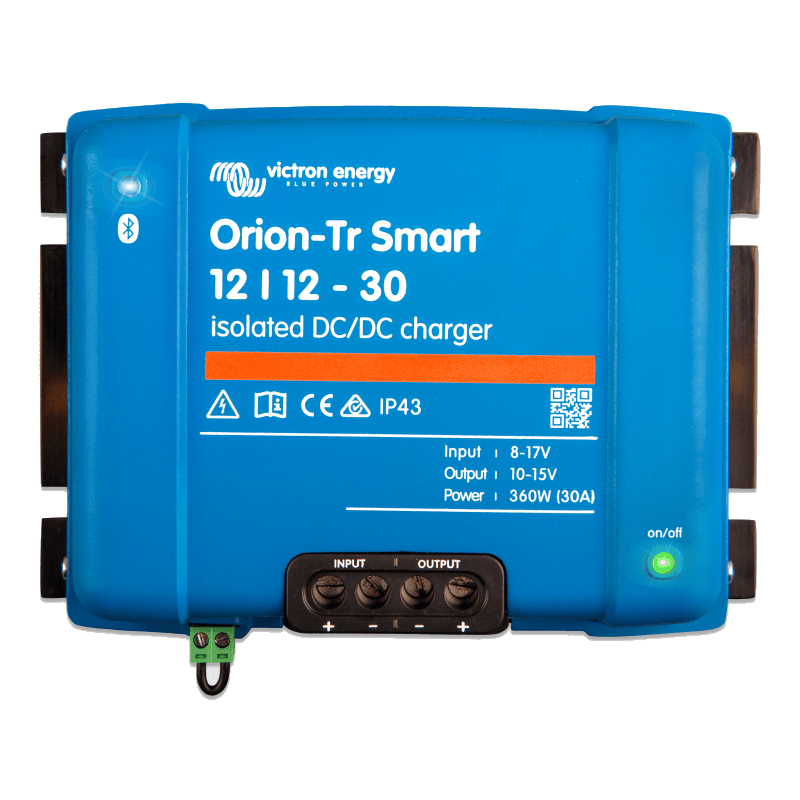

The VICTRON Orion-Tr Smart 12/12-30A Isolated is a powerful and intelligent DC/DC charger, designed to efficiently recharge your 12 V auxiliary batteries (AGM, Gel, or Lithium) from the starter battery and alternator.

Specifically suited for converted vans, Motorhomes, boats, and remote sites, this booster ensures a fast and optimal recharge thanks to its 3-stage algorithm (Bulk, Absorption, Floating).

Thanks to its integrated galvanic isolation, it limits corrosion caused by electrolysis on steel or aluminum boats, providing additional safety for marine installations.

Compatible with Euro 5 & Euro 6 vehicles equipped with smart alternators, the Orion-Tr Smart ensures reliable and protected operation. Additionally, it can be configured in continuous power supply mode (Power Supply) to provide direct current to your equipment.

The VictronConnect app via Bluetooth allows simple and precise configuration (charging voltages, real-time monitoring, mode activation). To increase power, multiple units can be installed in parallel.

Key Features:

• Galvanically isolated 12V – 30A DC/DC charger

• Compatible with AGM, Gel & Lithium (LiFePO4) batteries

• Suitable for Euro 5 & Euro 6 vehicles

• Built-in Bluetooth with VictronConnect app

• 3-stage charging algorithm for optimized recharge

• Power Supply function for direct 12 V power

Technical Specifications:

• Input voltage: 8 – 17 V

• Nominal output voltage: 12.2 V (adjustable from 10 to 15 V)

• Output power: 430 W (at 25°C)

• Output current: 30 A (max 40 A for 10 s)

• Galvanic isolation: 200 VDC

• Efficiency: 87 %

• Protection rating: IP43 (electronics) / IP22 (connections)

• Dimensions: 130 x 186 x 70 mm

• Weight: 1.8 kg

👉 The VICTRON Orion-Tr Smart 12/12-30A Isolated is the ideal solution for reliable, safe, and connected recharging of your auxiliary batteries during your van, Motorhome, or boat trips.
