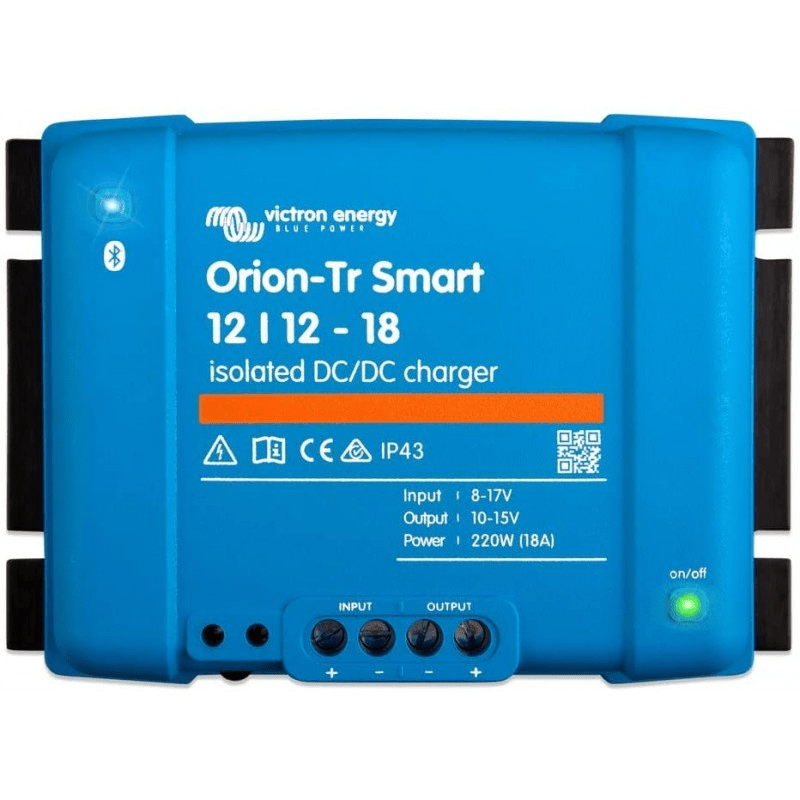

VICTRON Orion-Tr Smart 12/12 - 18A Isolated | DC/DC Charger Bluetooth

The VICTRON Orion-Tr Smart 12/12 - 18A Isolated is a robust and intelligent DC/DC charger, ideal for recharging your leisure batteries 12 V from the starter battery and alternator of your vehicle or boat.

Thanks to its Smart technology with built-in Bluetooth, you can monitor and configure the charge in real time via the VictronConnect app. Compatible with AGM, GEL, and Lithium batteries, it ensures a fast, reliable, and technology-adapted recharge.

Designed for modern vehicles (Euro 5 & 6) equipped with smart alternators, it includes an engine detection function that starts charging only when the engine is running. The galvanic isolation protects your equipment against corrosion, especially on steel or aluminum boats.

⚡ Key features:

• Isolated 12 V – 18 A DC/DC charger

• 3-stage algorithm: Bulk, Absorption, Floating

• Compatible with AGM, GEL, Lithium

• Built-in Bluetooth for settings and monitoring

• Power Supply function for continuous power

• Built-in protection: overheating, reverse polarity, short circuit

📐 Technical specifications:

• Input voltage: 8 – 17 V

• Output voltage: adjustable 10 – 15 V (nominal 12.2 V)

• Output current: 18 A (max 25 A peak)

• Power: 280 W (25°C) / 220 W (40°C)

• Efficiency: 87 %

• Galvanic isolation: 200 VDC

• Protection rating: IP43 (housing) / IP22 (connections)

• Dimensions: 130 x 186 x 70 mm – Weight: 1.3 kg

👉 Ideal for Campervans, Motorhomes, and boats, it ensures safe and efficient charging while preserving the lifespan of your batteries and alternator.
