Description:

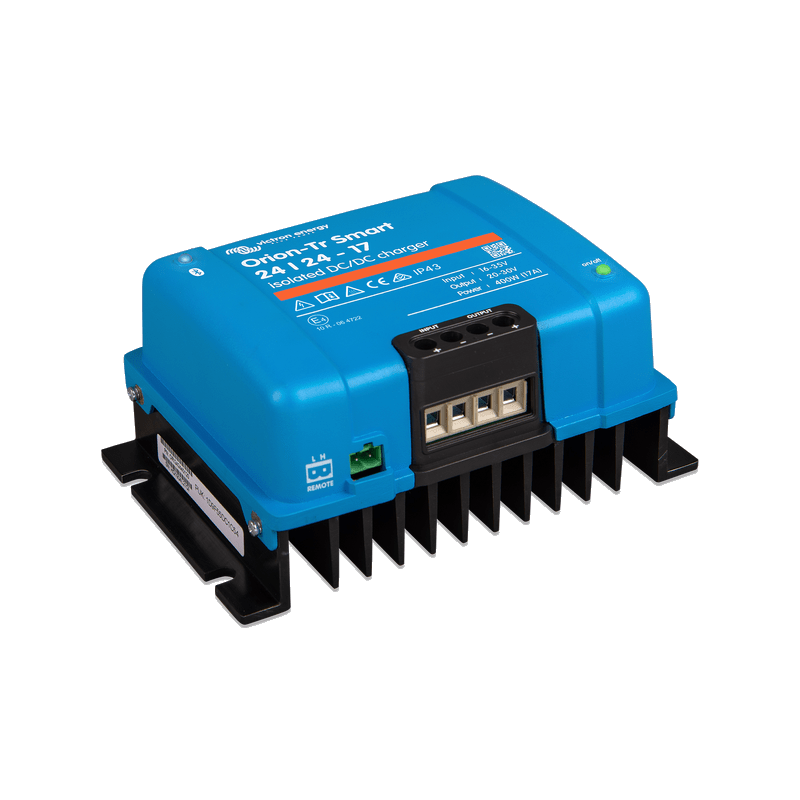

The VICTRON Orion-Tr Smart 24/24 – 17A booster charger is a high-performance DC/DC device allowing you to recharge your 24V auxiliary batteries from a 24V alternator. Designed for vehicles equipped with Euro 5 & 6 engines, it ensures reliable and secure charging, ideal for onboard electrical systems in Motorhome, campervan, or boat.

Optimized and intelligent charging
Thanks to its 3-stage charging algorithm (Bulk, Absorption, Floating), the Orion-Tr Smart charger efficiently recharges all types of batteries: AGM, GEL, or Lithium (LiFePO4). It guarantees fast and appropriate charging while protecting the alternator from overloads.

Compatibility and safety
Perfectly suited to smart alternators of Euro 5 & 6 vehicles, this charger activates only when the engine is running thanks to its automatic detection function. This prevents any unnecessary discharge and ensures safe operation.

Versatility and connectivity

• Possibility to install multiple Orion-Tr Smart units in parallel to increase charging power.

• Power Supply mode available, allowing use as a continuous power supply or DC/DC converter.

• Built-in Bluetooth connection via the VictronConnect app, to easily set charge voltages and monitor operation in real time.

Key features:

• Compatible with AGM, GEL and Lithium batteries

• 3-stage charging algorithm

• Specially designed for Euro 5 & 6 vehicles

• Charging power: 17 A (480 W at 25 °C)

• Built-in Bluetooth for remote configuration and monitoring

Technical specifications:

• Input voltage: 16 – 35 V

• Nominal output voltage: 24.2 V (adjustable 20 – 30 V)

• Constant output current: 17 A

• Output power: 480 W (at 25 °C) / 400 W (at 40 °C)

• Efficiency: 88%

• Input cut-off: 14 V / Restart: 15 V

• Built-in protections: short circuit, overheating, low voltage

• Operating temperature: -20 °C to +55 °C

• Protection rating: IP43 (electronics) / IP22 (connections)

• Connection: screw terminal – max cable section 16 mm²

• Dimensions (H x W x D): 130 x 186 x 70 mm

• Weight: 1.6 kg

The VICTRON Orion-Tr Smart 24/24 – 17A DC/DC charger is the ideal solution to optimize the charging of your auxiliary batteries and ensure reliable and durable power supply during your sea or road trips.
