Window SQUARE 700 x 300

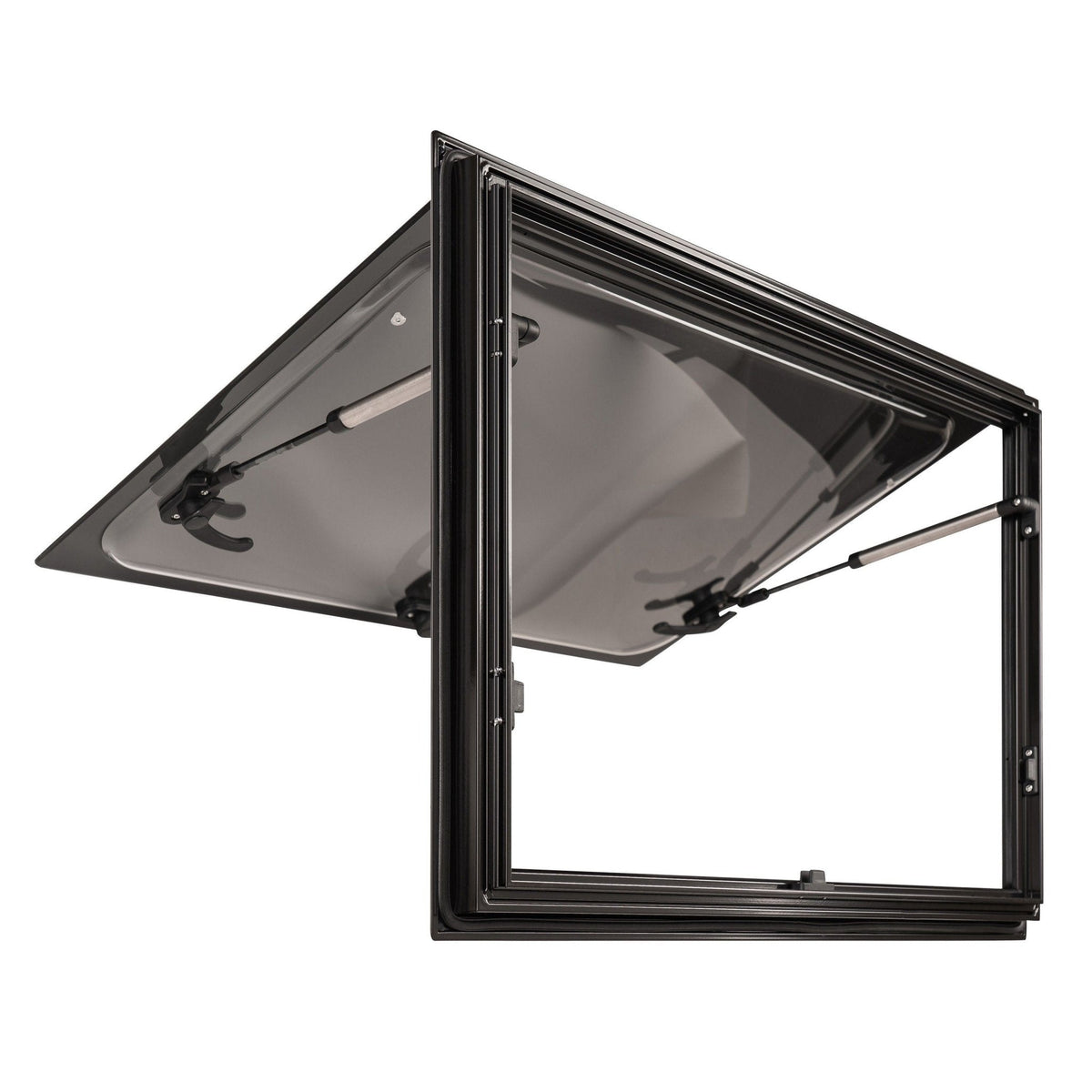

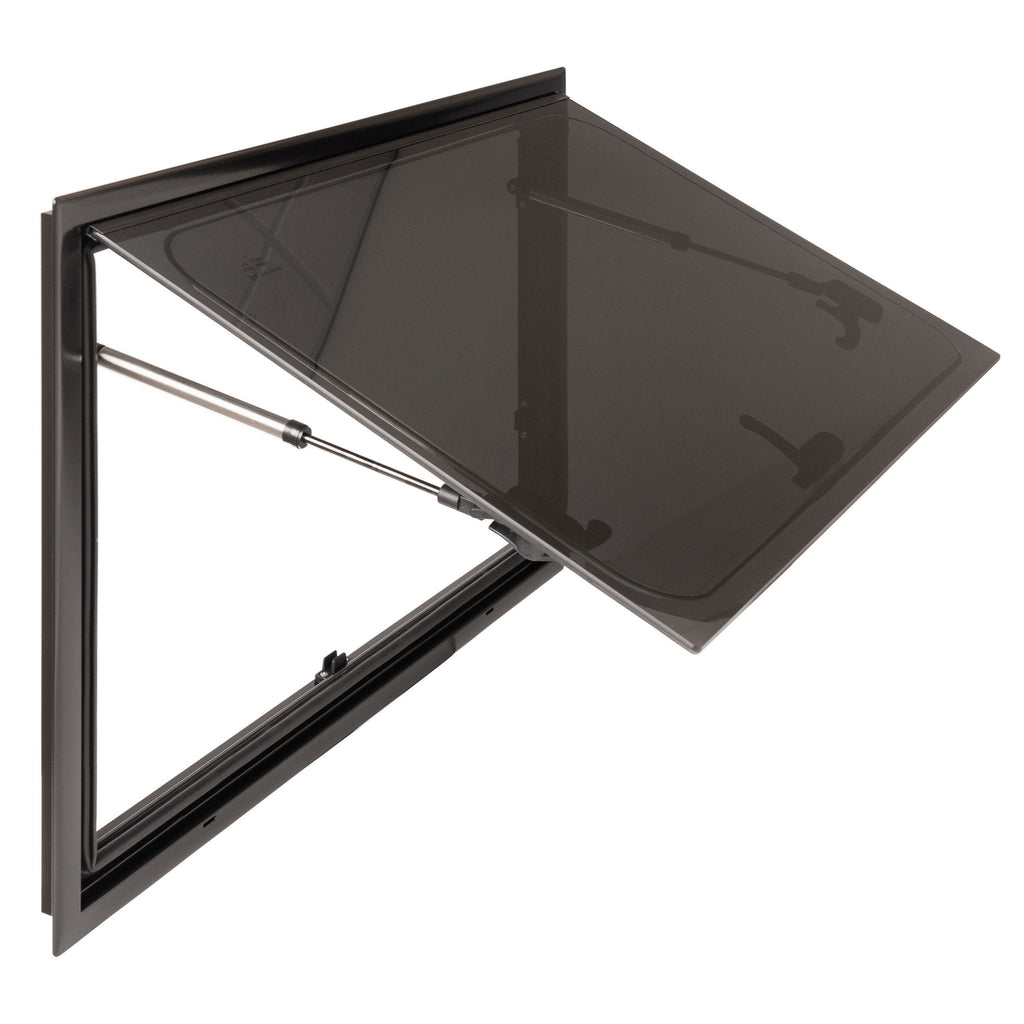

The SQUARE Top-hung window has square corners and dark-tinted double glazing, and is ECE R43 approved. It opens up to 70° and fits walls from 30 to 55 mm thick. Sold on its own with its aluminium mounting frame, without blind or fly screen.

Choose the right size

This window measures 700 × 300: this is the cut-out size, meaning an opening 700 mm wide by 300 mm high. This is the only measurement that determines compatibility with your vehicle. Other dimensions are available on the SQUARE Top-hung window, window only product page.

Maximum recommended Cut-out dimensions by van (in mm)

* 450 mm on Master, Movano, NV400; 520 mm on Ducato, Jumper, Boxer, Sprinter, Crafter.

These values correspond to what the vehicle allows: the SQUARE Top-hung window, window only, is available up to 900 × 500.

Reinforcements vary depending on the year and model: mark the cut-out on your wall and check that no reinforcement, cable or conduit crosses it. If in doubt, send us a photo and we will confirm.

The exterior frame extends 3 cm along each axis (overall dimensions: L + 3 cm × H + 3 cm).

Benefits of the SQUARE window

• The square-corner look: clean, straight lines that complement the flat sides of vans and modern interiors.

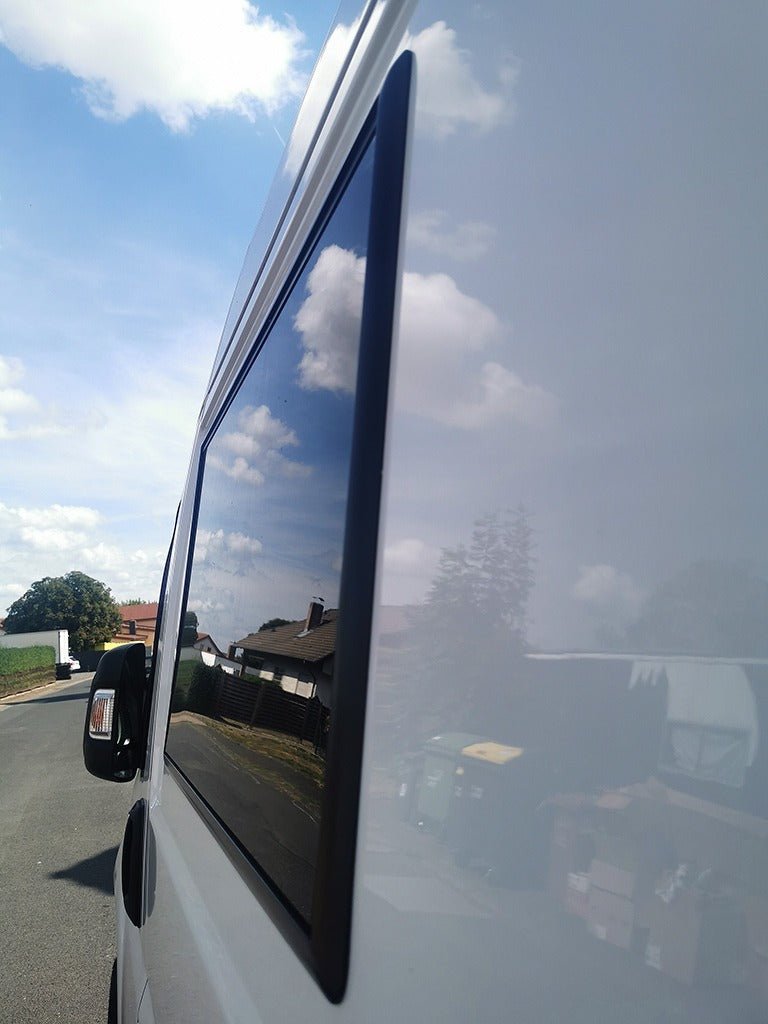

• Privacy: the dark-tinted glazing (30% light transmission) keeps the interior shielded from prying eyes without making it dark.

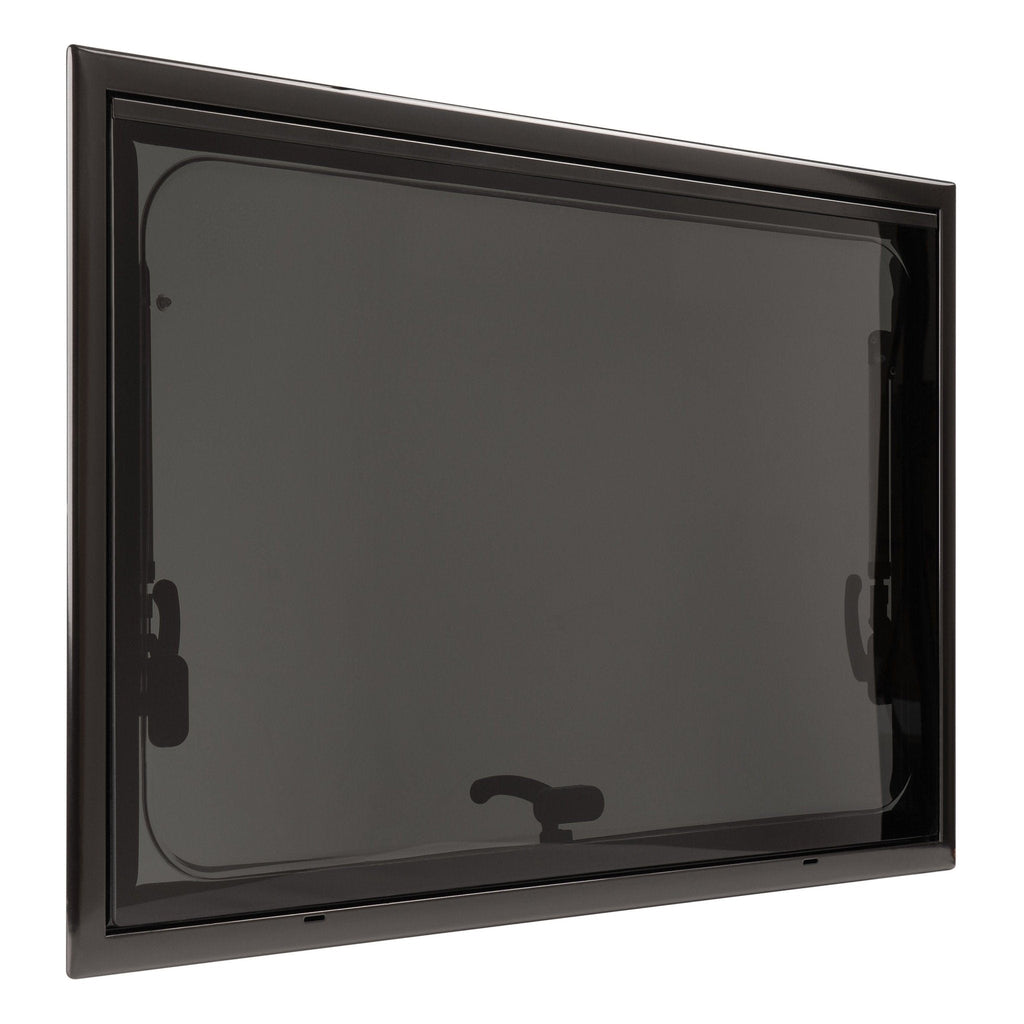

• Double glazing: two UV-resistant acrylic panes that insulate much better than single glazing. The interior stays cooler in summer, warmer in winter, and condensation is reduced.

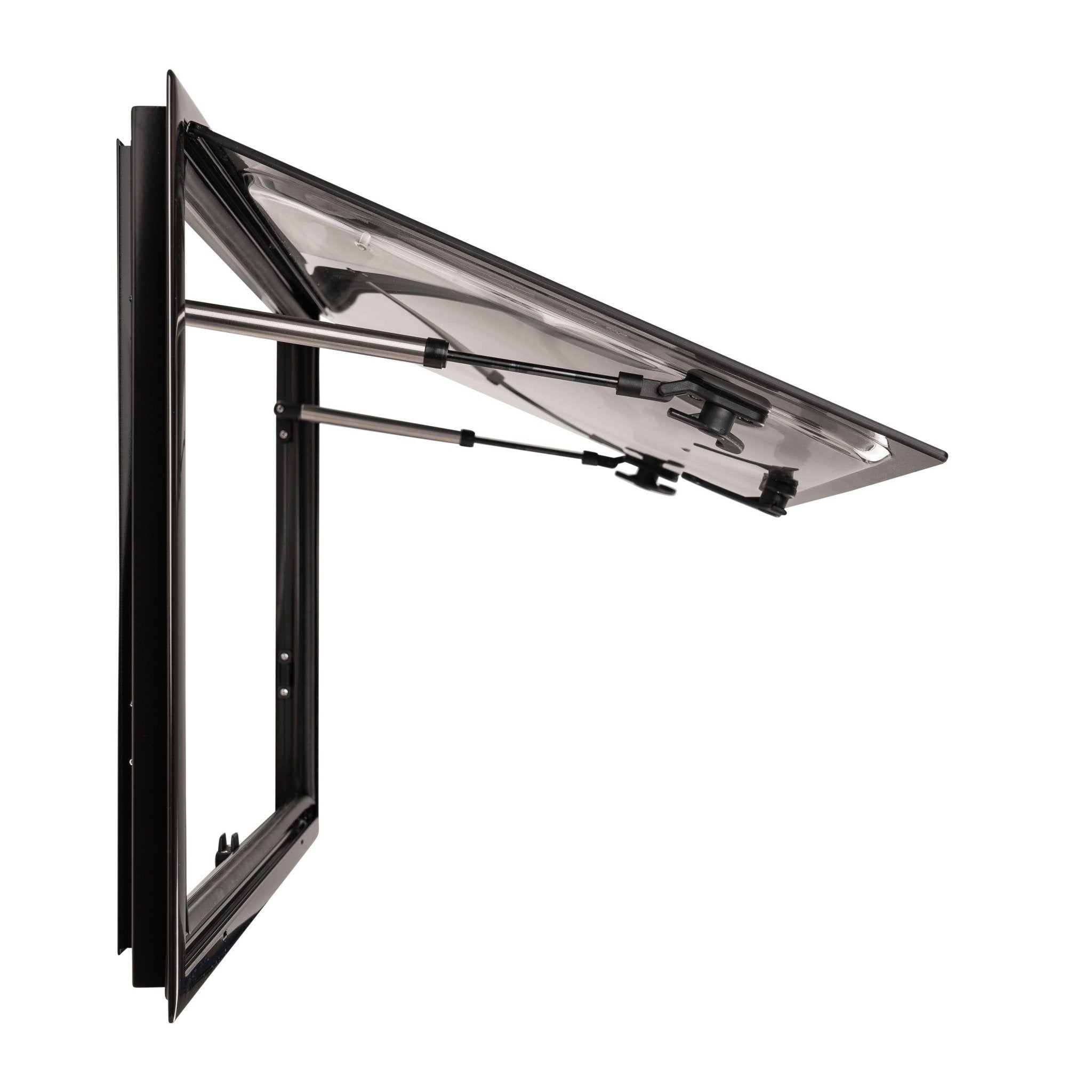

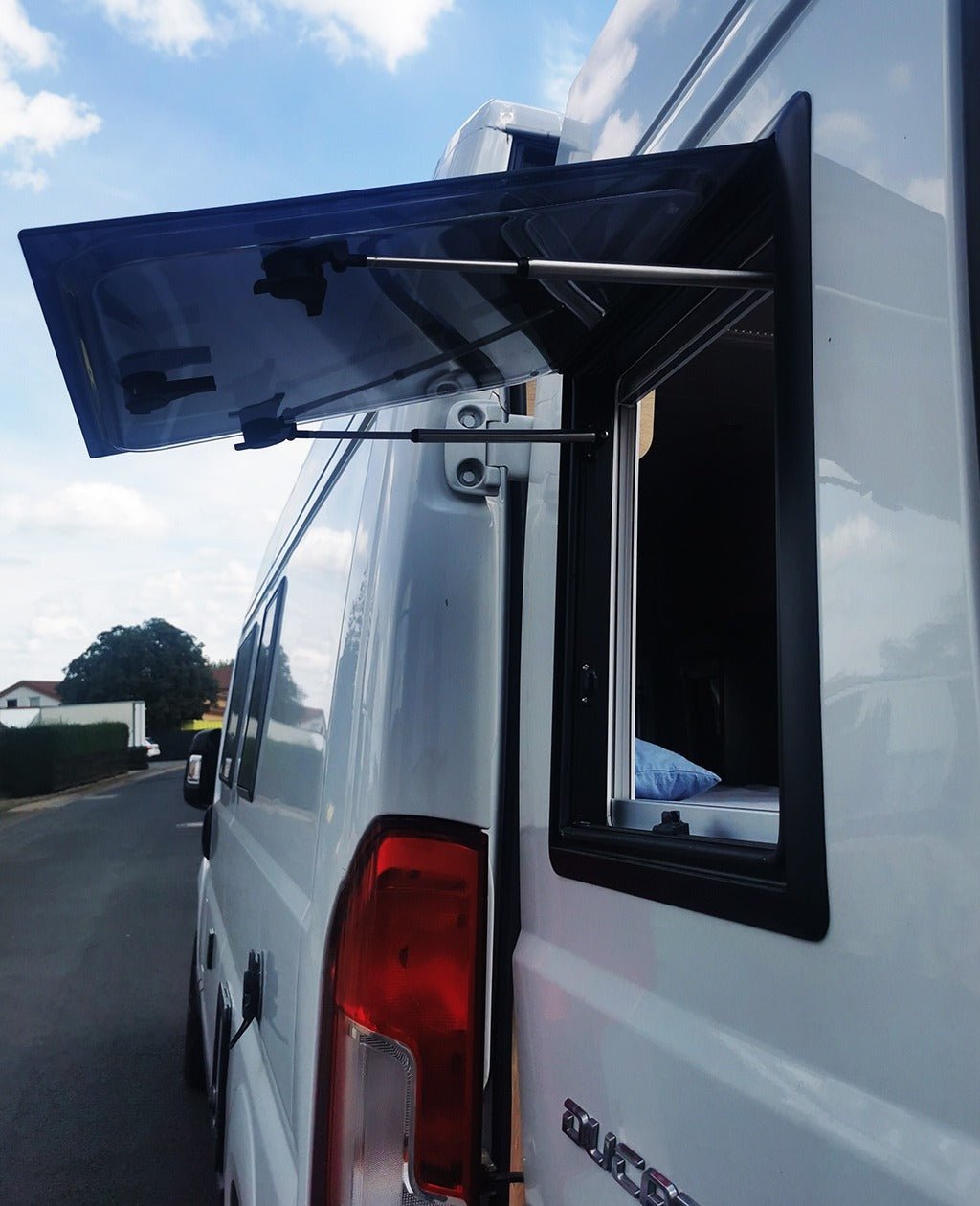

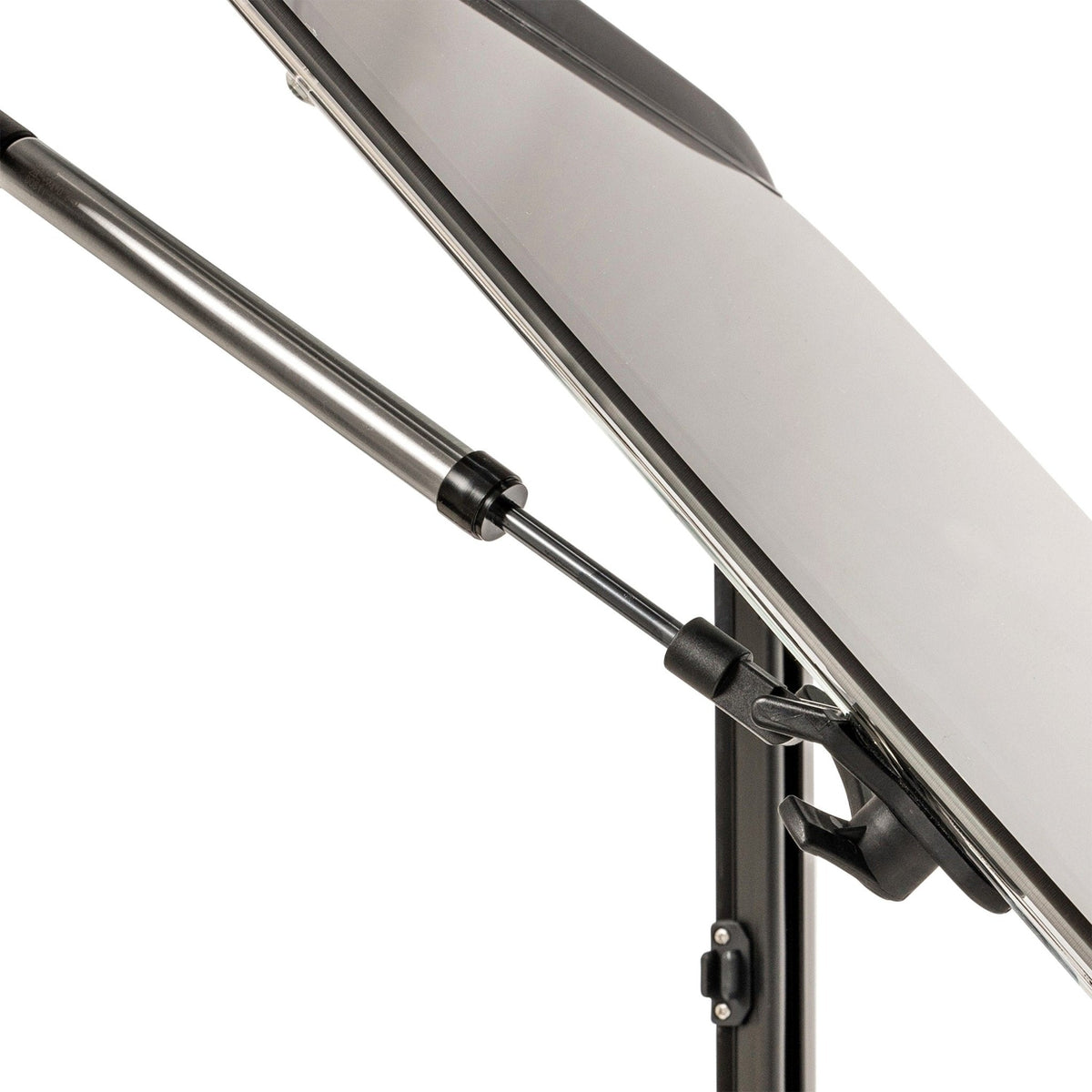

• Adjustable ventilation: the window opens outward up to 70° in 3 positions and locks with secure latches.
• Strong construction: a reinforced aluminium inner frame braces it against the wall, whether curved (van) or flat (Motorhome, caravan).
• Freedom to finish the interior your way: wood or fabric trim, or an interior frame with blackout blind and fly screen added later.
• Easy installation: the step-by-step installation tutorial guides you from marking the cut-out to final tightening. Allow approximately 1 hour.
• Approved and durable: ECE R43 approval, 2-year warranty and spare parts available for 5 years.

Choose the right model

Window only or complete version?

• Window only (this product page): to finish the inside of the cut-out yourself, or add a white or black interior frame with blackout blind and fly screen later, sold separately.
• SQUARE Top-hung window with blackout blind and fly screen: the same window, supplied complete with its interior frame, blackout blind and fly screen.

Package contents

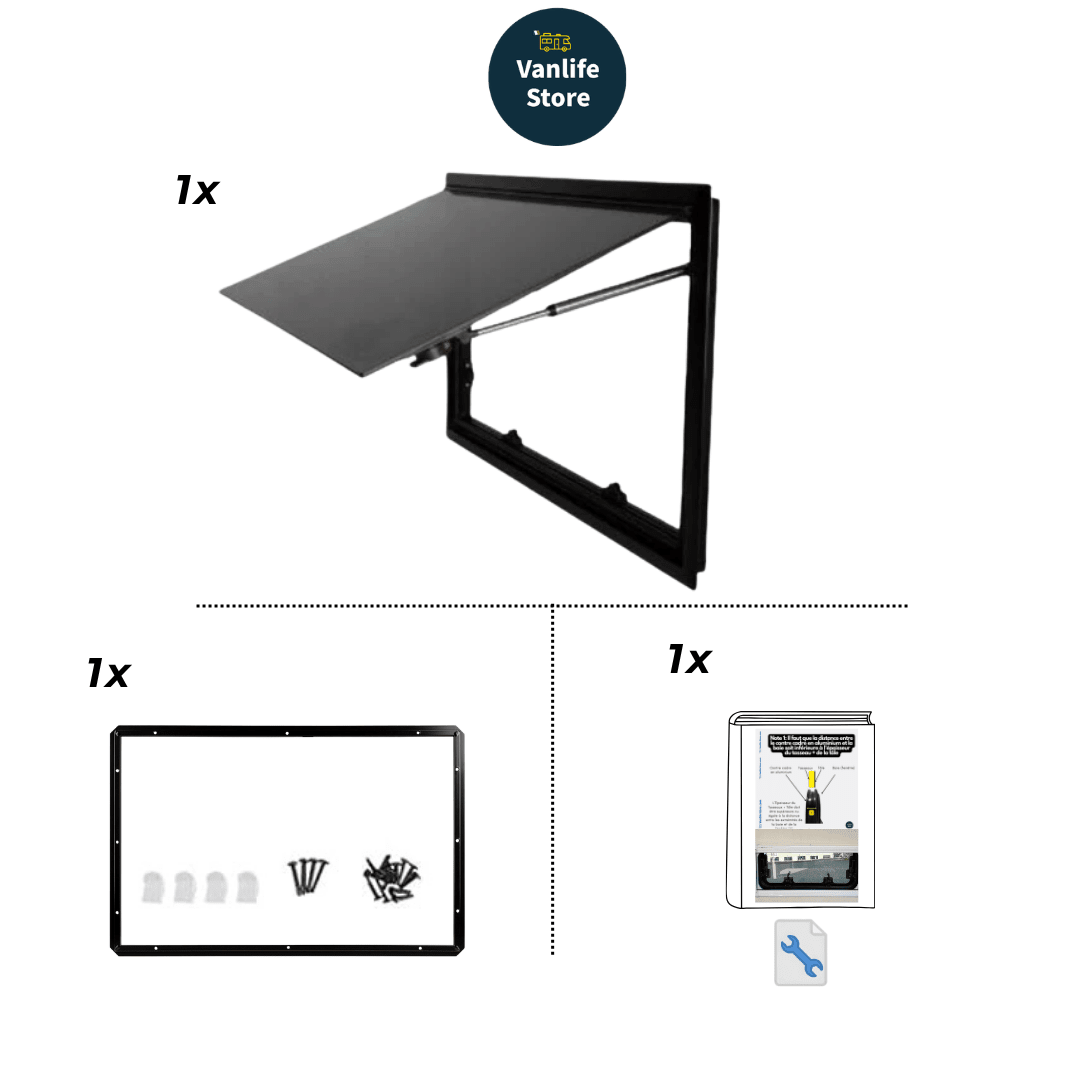

In the box

• 1 × SQUARE Top-hung window
• 1 × Reinforced aluminium mounting inner frame
• 1 × Complete screw set
• 1 × Step-by-step installation tutorial

Not included: finishing interior frame, blackout blind and fly screen.

What you will need

• 1 tube of Sikaflex 265 per window
• 25 mm minimum-thickness battens or wooden frame (recommended on panel vans)
• Jigsaw and screwdriver
• Materials to finish the inside of the cut-out, or an interior frame with blackout blind and fly screen

Allow approximately 1 hour for installation. Have two people available to position the window in the cut-out and hold it during screwing.

Downloads

• Installation instructions for top-hung windows (French PDF)
• Window selection guide (PDF, available in 6 languages)

Frequently asked questions

Q: Is it compatible with curved van walls?
A: Yes. The reinforced aluminium inner frame adapts equally well to curved walls (vans) and flat walls (Motorhomes, caravans). The slight gap on a curved wall is filled with Sikaflex.

Q: Is it approved for road use?
A: Yes, ECE R43: installation authorised without manufacturer approval in Europe, the United Kingdom and Switzerland. Compliant with technical inspections and VASP requirements.

Q: Can I add a blackout blind and fly screen later?
A: Yes. The interior frame with blackout blind and fly screen, in white or black, can be ordered separately. Check its product page to confirm that your size is available, or contact us.

Unsure about the size? Contact our technical team; we will reply within 24 hours at most.
