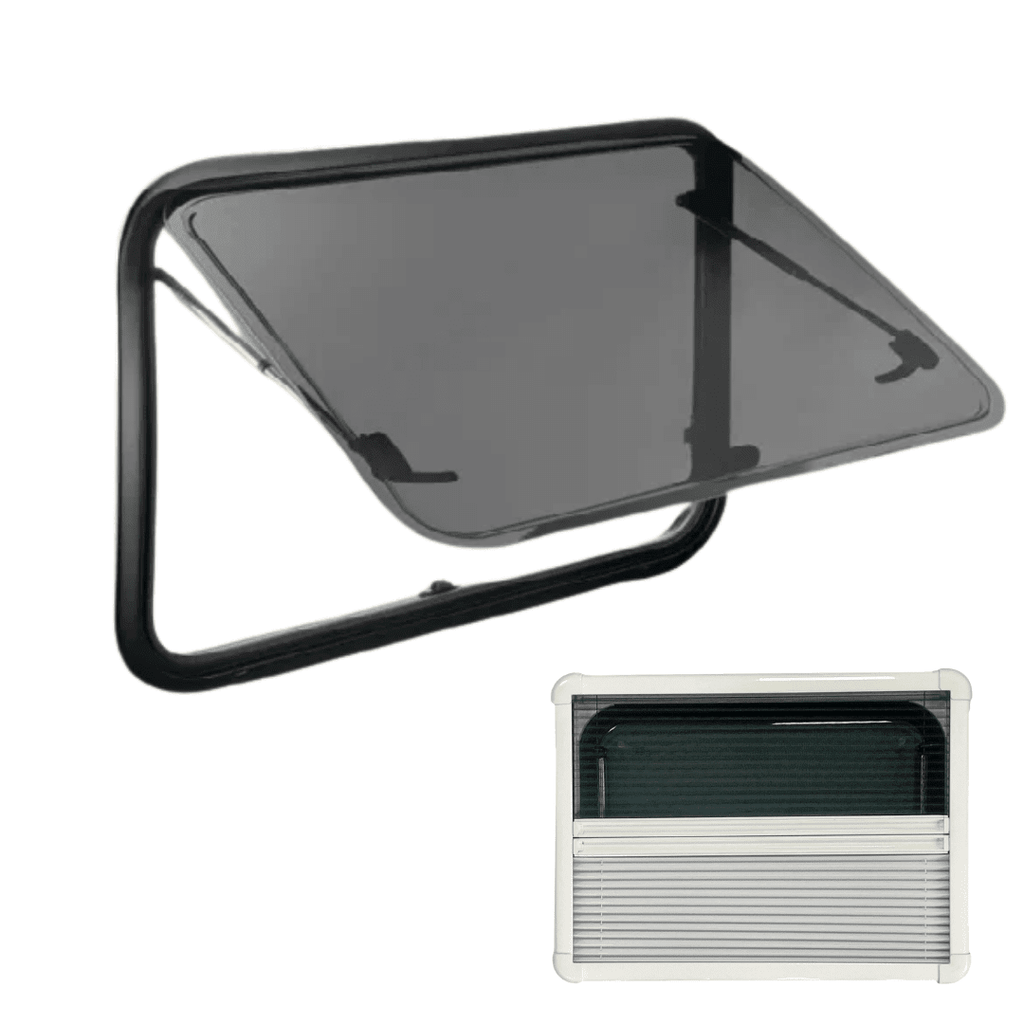

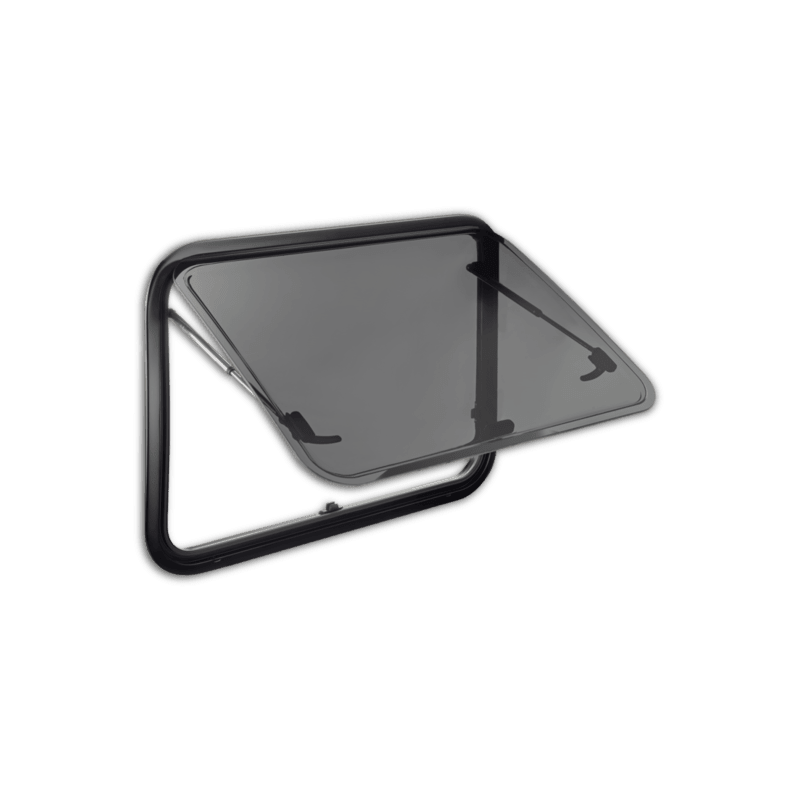

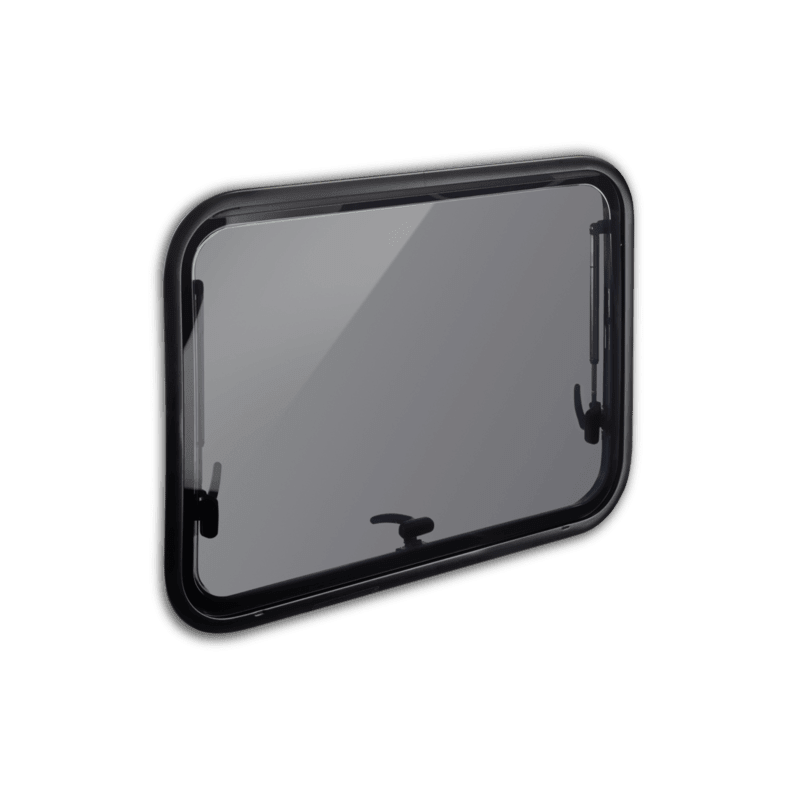

- Type: curved Push window for vans L1H1-L4H3
- Glazing: double acrylic glazing UV-resistant tinted dark (30% light transmission)
- Exterior frame: black aluminum, curved glazing, 5000 mm radius, rounded corners
- Opening: Push window with safety latch
- Compatible wall thickness: 25 to 75 mm (extendable with longer screws)
- Interior frame: reinforced aluminum
- Certification: ECE R43 (Europe, UK, Switzerland) — VASP/TÜV
- Average installation time: 1h
- Warranty: 2 years — Spare parts available for 5 years
📐 Dimensions
- L × H product = cut-out dimensions
- Overall external dimensions: L+3cm × H+3cm
💡 Good to know: only the cut-out dimension matters to check compatibility with your vehicle. The interior finishing frame is surface-mounted on the wall — it covers the edges of the hole without requiring extra space.
📦 Package contents
- 1 × Push window with double acrylic glazing
- 1 × Reinforced aluminum interior frame
- 1 × Complete set of screws
- 1 × Step-by-step installation tutorial
- 1 × ECE R43 certification
🔧 Required for installation
- 1 tube of Sikaflex 265
- Wood battens or frame at least 25 mm thick (recommended for vans)
- Jigsaw + screwdriver
⁉️ Frequently asked questions
Any other questions? Contact our technical team — response within 24h max.
Q: Is it certified for road use?
A: Yes, ECE R43 — installation allowed without manufacturer approval in Europe, the UK, and Switzerland. Complies with technical inspection and VASP.
Q: How to choose the right size?
A: Mark the cut-out dimensions on the desired spot on your bodywork. If the space is unobstructed (reinforcements, cables, ducts), you can install the window.
