Freucamp W5001 Cassette Toilet — Bench-shaped WC that also serves as a seat in the shower

Want real toilets connected to water without sacrificing floor space? The Freucamp W5001 was designed for your layout. Its bench-shaped body fits against the partition, doubles as a seat in your shower cabin, and connects directly to the vehicle’s water system — giving you the comfort of a fixed WC without the bulk of a traditional model. Available with a service door on the right or left depending on your layout side.

• Why vanlifers choose the W5001

  • Bench shape, low profile — a flat, rectangular body that also serves as a seat when you shower, ideal for compact shower cabins.
  • Pre-rinse + sealed flush — connected to your fresh water tank via a Ø10 mm inlet, with a pre-rinse function that uses less water and keeps the bowl clean.

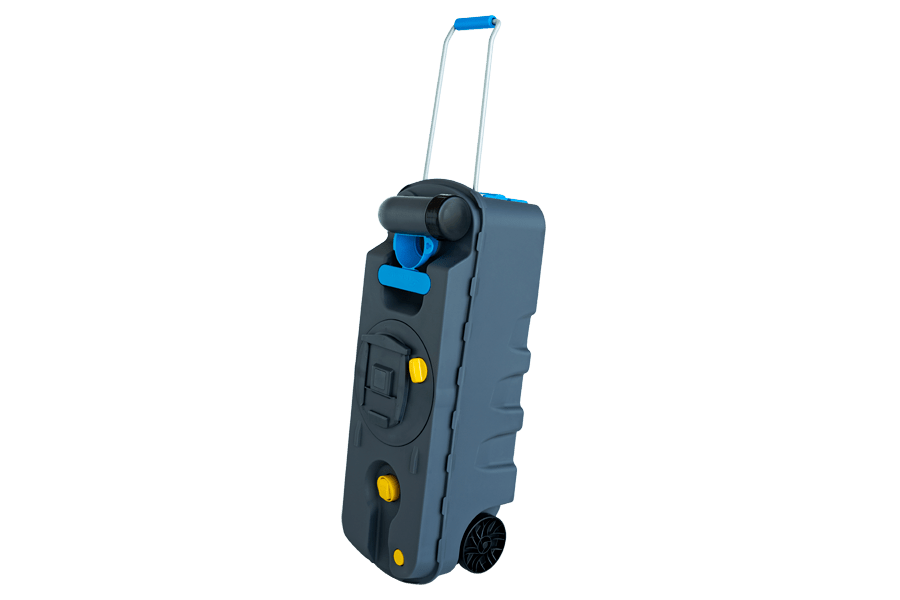

  • 20 L cassette on wheels with telescopic handle — emptied from outside through the service hatch, no need to cross the living space with wastewater.
  • Odor vent + PBT blade and seals — a dedicated ventilation system expels odors outside the vehicle, and the high-gloss PBT blade between the bowl and cassette prevents leaks and odor backflow.
  • Soft-close lid with magnet — silent closing, no rattling on the road.
  • Antibacterial seat and cover — easier to keep clean in a tight space.
  • Smart full cassette detection — red light + alarm on the control panel; flushing is automatically blocked when the cassette is full, preventing overflow.
  • Lightweight PP construction — only 10 kg, supports up to 120 kg.
  • Service door on left or right — choose the side that fits your vehicle body.

• Product overview

  The W5001 is a fixed cassette toilet designed for campervans, Motorhomes, and caravans. Unlike taller fixed WCs, it has a bench shape — the seat and cover rest on a flat, rectangular base running along the partition. This flat top is not just aesthetic: in a shower cabin, it serves as a seat during rinsing, saving you from having to fit an extra shower seat.

  The bowl connects to your vehicle’s pressurized water system via a Ø10 mm inlet and uses a pre-rinse function that wets the bowl before flushing — waste is evacuated with less water. A control panel on the body shows the cassette fill level and triggers an alarm when it’s time to empty; if the cassette is full, the system automatically delays flushing to prevent overflow.

  Wastewater collects in a 20 L cassette accessible from outside the vehicle through a 331 × 379 × 70 mm (L × H × D) service hatch. The cassette has wheels and a telescopic handle: emptying it feels more like rolling luggage than wrestling a tank. A dedicated ventilation system expels odors outside the vehicle, and the high-gloss PBT blades and seals between the bowl and cassette prevent liquid leaks and odor backflow into the cabin.

• Technical specifications

  • Type: Fixed cassette toilet, bench design
  • Available configurations: service door on right or left
  • Body dimensions: 670 L × 405 D × 522 H mm (lid open: 670 × 405 × 860 mm)
  • Service hatch cutout: 331 × 379 × 70 mm (L × H × D)
  • Waste cassette capacity: 20 L, with wheels and retractable handle
  • Water inlet: Ø10 mm — direct connection to vehicle’s pressurized water system
  • Flush: pre-rinse + flush, water-efficient
  • Maximum user load: 120 kg
  • Weight: 10 kg
  • Material: lightweight polypropylene (PP); antibacterial seat and cover
  • Lid: magnet + soft-close mechanism
  • Sealing: high-gloss PBT blade and seals between bowl and cassette
  • Overflow protection: cassette detection in place, red full-level light + audible alarm, automatic flush lock
  • Dedicated external ventilation for odor removal
  • Color: white

• Where to install it in your layout

  The W5001 is designed for permanent installation in a shower/WC cabin or dedicated bathroom compartment. Its flat top makes it especially suitable for compact shower/WC combos, where the same 670 × 405 mm footprint serves as both toilet and shower bench. Choose the W500110 (service door right) or W500111 (service door left) depending on which side of your vehicle you will cut the cassette access.

  It’s also a good option if you want a low profile under a window, behind a sliding partition, or against a low cabinet — places where a tall fixed WC simply won’t fit.

  Will it fit your van?

  Installation — installation follows the usual sealed cassette toilet process: screw the body to the floor, connect the Ø10 mm water line to the fresh water pump, run a 12 V power supply to the control panel, and cut a 331 × 379 mm service hatch in the outer panel. Within reach of anyone who has installed a sink or fresh water system before.

  Compatibility — works with standard 12 V campervan/Motorhome plumbing equipped with a pressure pump. Choose left or right door version depending on which side the cassette will exit your layout.

  Durability — the polypropylene body resists cassette chemical additives, the antibacterial seat holds up to daily use, the PBT blades and seals keep liquids and odors contained, and the magnetized soft-close lid eliminates rattling that often ruins low-end toilets on rough roads.

  Real use — the 20 L cassette offers several days of autonomy for two people, the pre-rinse keeps the bowl clean with less water (essential when rationing your tank), and the alarm prevents unpleasant surprises.

  Bench shape vs. swivel bowl: two philosophies

  Swivel bowl cassette toilets save width; the W5001 takes a different approach — a flat bench profile that turns the toilet into a usable seat in the shower cabin. If your bathroom also serves as a shower, the bench shape is the real space saver: one element, two functions.

  Build the bathroom that finally makes sense

  Stop choosing between real toilets and a usable shower. The Freucamp W5001 offers you a sealed, ventilated cassette toilet protected by an alarm — with the footprint of a low bench that actually serves as a bench. Choose your service door side (left W500111 or right W500110) and order the W5001 to finish your bathroom the way it should have been from the start.




User manual and technical specifications: Download
